USRobotics Courier Lite 56k Dial Up Business Modem - Serial - 56 kbit/s - ITU V.17, ITU-T V.29, ITU-T V.27ter, ITU-T V.21, EIA 578 Class 1, EIA 592 Class 2.0, ITU-T Group III Fax Technology - ITU-T V.92 - USR5686G-PRO

USRobotics Courier Lite 56k Dial Up Business Modem - Serial - 56 kbit/s - ITU V.17, ITU-T V.29, ITU-T V.27ter, ITU-T V.21, EIA 578 Class 1, EIA 592 Class 2.0, ITU-T Group III Fax Technology - ITU-T V.92 - USR5686G-PRO

Name: USRobotics Courier Lite 56k Dial Up Business Modem - Serial - 56 kbit/s - ITU V.17, ITU-T V.29, ITU-T V.27ter, ITU-T V.21, EIA 578 Class 1, EIA 592 Class 2.0, ITU-T Group III Fax Technology - ITU-T V.92 - USR5686G-PRO
Brand: USRobotics
SKU: HS-USR-USR5686G-PRO
Price: 1122.01 SAR
Availability: InStock

USRobotics

﷼1,122.01

Write a Review

SKU:

HS-USR-USR5686G-PRO

UPC:

7.38E+11

Condition:

New

Availability:

Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |

Width:

6.50 (cm)

Height:

1.30 (cm)

Depth:

3.80 (cm)

Package Contents:

Courier Lite 56k Dial Up Business Modem

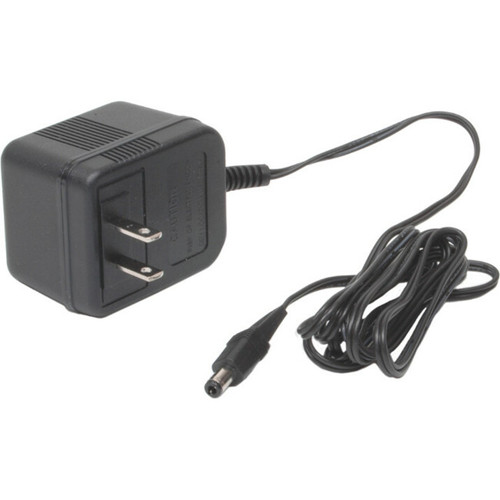

Power Supply Unit
RJ-11 Phone Cord (7 ft/2.13 m)
DB9 to DB25 RS-232 Serial Cable (3 ft/0.91 m)

Host Interface:

Serial

Product Type:

Data/Fax Modem

Fax Technology:

ITU V.17

Fax Technology:

ITU-T V.29

Fax Technology:

ITU-T V.27ter

Fax Technology:

ITU-T V.21

Fax Technology:

EIA 578 Class 1

Fax Technology:

EIA 592 Class 2.0

Fax Technology:

ITU-T Group III

Manufacturer Part Number:

USR5686G-PRO

Limited Warranty:

2 Year

Weight (Approximate):

8.64 oz

Manufacturer:

U.S. Robotics

Product Model:

5686G-PRO

Product Name:

Courier Lite 56k Dial Up Business Modem

Modulation:

ITU-T V.92

Modulation:

ITU-T V.90

Modulation:

ITU-T V.34

Modulation:

ITU-T V.32bis

Modulation:

ITU-T V.32

Modulation:

ITU-T V.23

Modulation:

ITU-T V.22bis

Modulation:

ITU-T V.22

Modulation:

ITU-T V.21

Modulation:

ITU-T V.44

Modulation:

ITU-T V.42bis

Modulation:

ITU-T V.80

Modulation:

ITU-T V.42

Modulation:

ITU-T V.34plus

Product Line:

Courier

Brand Name:

USRobotics

Country of Origin:

China

Height:

1.3"

Width:

6.5"

Depth:

3.8"

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Environmental Certification:

Green Dot

Number of Phone Line (RJ-11) Ports:

Fax Transmission Data Rate:

14.4 kbit/s

Modem Transmission Data Rate:

56 kbit/s

Note:

Images may not be exact, please check specifications.

Required A Volume Purchase:

Overview
Other Details

Product Description

USRobotics Courier Lite 56k Dial Up Business Modem - Serial - 56 kbit/s - ITU V.17, ITU-T V.29, ITU-T V.27ter, ITU-T V.21, EIA 578 Class 1, EIA 592 Class 2.0, ITU-T Group III Fax Technology - ITU-T V.92, ITU-T V.90, ITU-T V.34, ITU-T V.32bis, ITU-T V.32, ITU-T V.23, ITU-T V.22bis, ITU-T V.22, ITU-T V.21, ITU-T V.44, ITU-T V.42bis, ... Modulation - 14.4 kbit/s Fax Transmission Data Rate

MISSION CRITICAL DIAL-UP CONNECTIVITY FOR BUSINESS

The USR^® Courier^® Lite 56K* Business Modem with V.Everything^® technology provides secure, reliable analog connections. Many modems claim reliability, but even fewer offer the multitude of advanced business features like Courier's Carrier Loss Redial, Dialback Security, and Remote Access capabilities. Point of Sale, M2M (Machine to Machine), IoT (Internet of Things) applications as well as Out of Band Management and Remote Management deployments utilize remote access to configure or troubleshoot. With over 1 million units sold world-wide, the Courier family of modems real-world performance is unmatched. When failure is not an option, you need the world-class capabilities that only come from the top of the USR product line.

Features

Server and 64 bit, UNIX, Linux - any operating system that supports an RS-232 serial port
Dialback security checks incoming calls for password authorization and then dials back predefined numbers to assure only appropriate users establish connections
Carrier Loss Redial automatically senses, redials, and re-establishes dropped remote connections - creates a virtual always-on connection between two modems over standard analog dial-up lines
Advanced Line Probing technology finds the fastest connection and maintains connections under poor line conditions
Brown-out Protection assures you stay connected even in areas with poor power facilities
Robust, business-oriented design, component selection, testing, and experience to support non-stop operation
Remote access and management lets you configure or troubleshoot from almost anywhere
Use as a secondary connection to troubleshoot, reconfigure, and reboot network devices through a console port.
External 8 position DIP switch allows manual configuration of specific critical settings
Extra LEDs for better monitoring of serial signals
Precise manual volume control
Permanently store preferred modem default settings

User-Manual

Manufacturer-Brochure

Other Details

(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.

Product Videos

Custom Field

Package Contents

Courier Lite 56k Dial Up Business Modem
Power Supply Unit
RJ-11 Phone Cord (7 ft/2.13 m)
DB9 to DB25 RS-232 Serial Cable (3 ft/0.91 m)

Host Interface Serial

Product Type Data/Fax Modem

Fax Technology ITU V.17

Fax Technology ITU-T V.29

Fax Technology ITU-T V.27ter

Fax Technology ITU-T V.21

Fax Technology EIA 578 Class 1

Fax Technology EIA 592 Class 2.0

Fax Technology ITU-T Group III

Manufacturer Part Number USR5686G-PRO

Limited Warranty 2 Year

Weight (Approximate) 8.64 oz

Manufacturer U.S. Robotics

Product Model 5686G-PRO

Product Name Courier Lite 56k Dial Up Business Modem

Modulation ITU-T V.92

Modulation ITU-T V.90

Modulation ITU-T V.34

Modulation ITU-T V.32bis

Modulation ITU-T V.32

Modulation ITU-T V.23

Modulation ITU-T V.22bis

Modulation ITU-T V.22

Modulation ITU-T V.21

Modulation ITU-T V.44

Modulation ITU-T V.42bis

Modulation ITU-T V.80

Modulation ITU-T V.42

Modulation ITU-T V.34plus

Product Line Courier

Brand Name USRobotics

Country of Origin China

Height 1.3"

Width 6.5"

Depth 3.8"

Environmentally Friendly Yes

Environmental Certification RoHS

Environmental Certification Green Dot

Number of Phone Line (RJ-11) Ports 2

Fax Transmission Data Rate 14.4 kbit/s

Modem Transmission Data Rate 56 kbit/s

Note Images may not be exact, please check specifications.

Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
