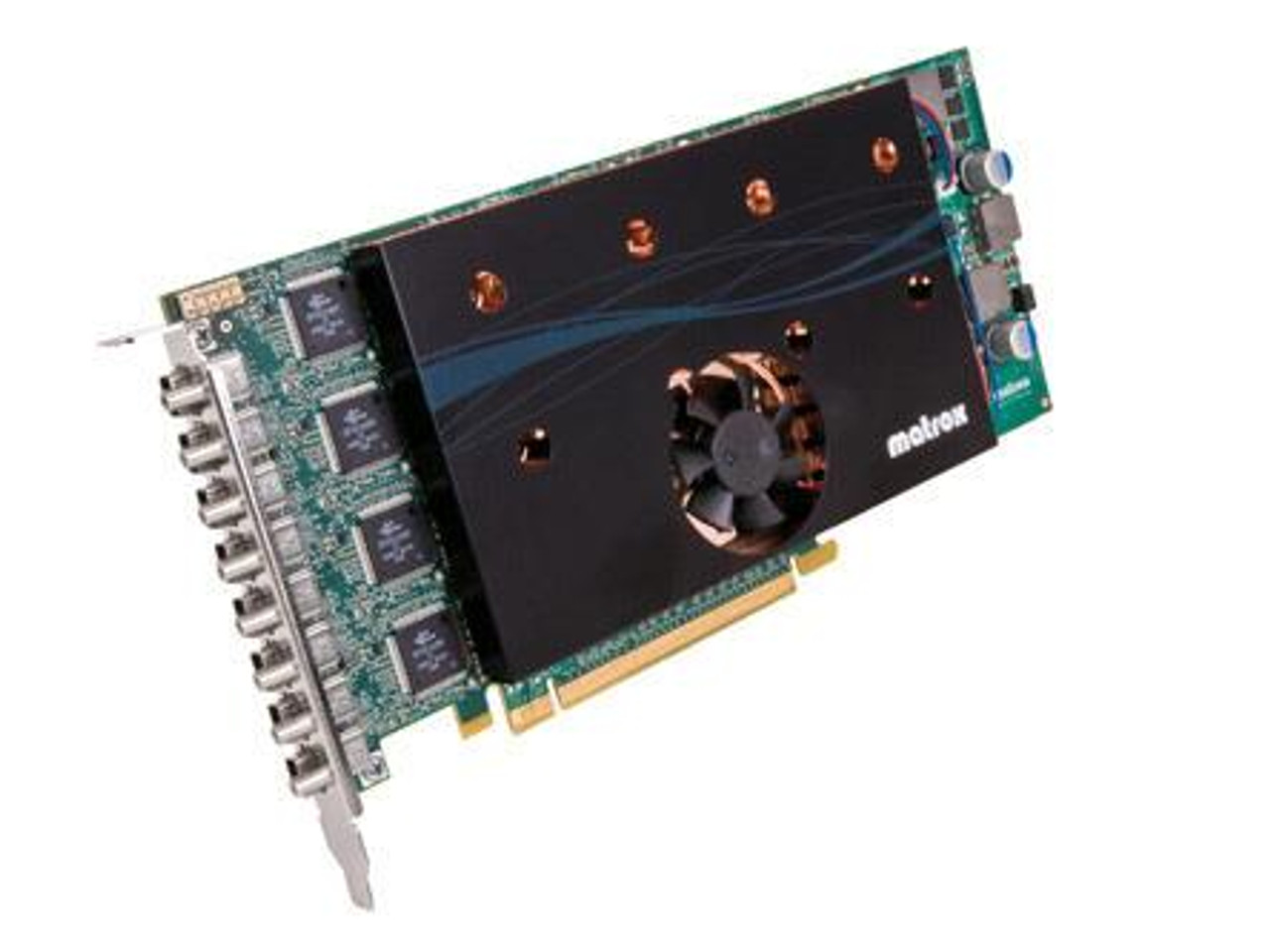

Matrox Video card -MatroxM9188 - PCI Express x16 - 2 GB - DDR II SDRAM - Display Port, DVI SL - M9188-E2048F

Product Description

Video card -MatroxM9188 - PCI Express x16 - 2 GB - DDR II SDRAM - Display Port, DVI SL

The Matrox M9188 PCIe x16 multi-display Octal graphics card addresses the need to visualize large amounts of data at once in order to effectively make decisions. The latest offering from the M-Series family is the world's first single-slot PCIe x16 octal card, featuring the ability to support both DisplayPort and DVI Single-Link outputs to ensure wide compatibility with today's monitors. With 2 GB of memory and advanced desktop management features, such as independent or stretched desktop modes, the M9188 drives energy, transportation, process control, financial trading, and other mission-critical environments with extraordinary performance.

Technical Specs

Information

• Memory

  Video Memory / Technology:	TBD
  Video Memory / Installed Size:	2 GB

• Video

  API Supported:	OpenGL 2.0
  Max Resolution (external):	2560x1600 Display Port, 1920x1200 DVI
  Max Monitors Supported:	8

• Dimensions&Miscellaneous

  Width:	9 Inch
  Height:	4.4 Inch

• Connectors

  Interfaces & Connections:

  Connectors( on board): 8x Mini Display port to Display Port, Adapter Cables: 8x Mini Display Port to Display Port, 8x Display Port to DVI

• System Requirements

  System Requirement:

  Windows 8, Microsoft Windows 7 (32/64 bit), Windows Vista (32/64 bit), Windows XP (32/64 bit), Windows Server 2003/2008 (32/64 bit), and Linux

• Service&Support

  Service & Support Type:

  3 Years warranty

• Special Feature

  RoHS:

  Y

• UNSPSC Code

  UNSPSC Code:

  43201401
