Product Description

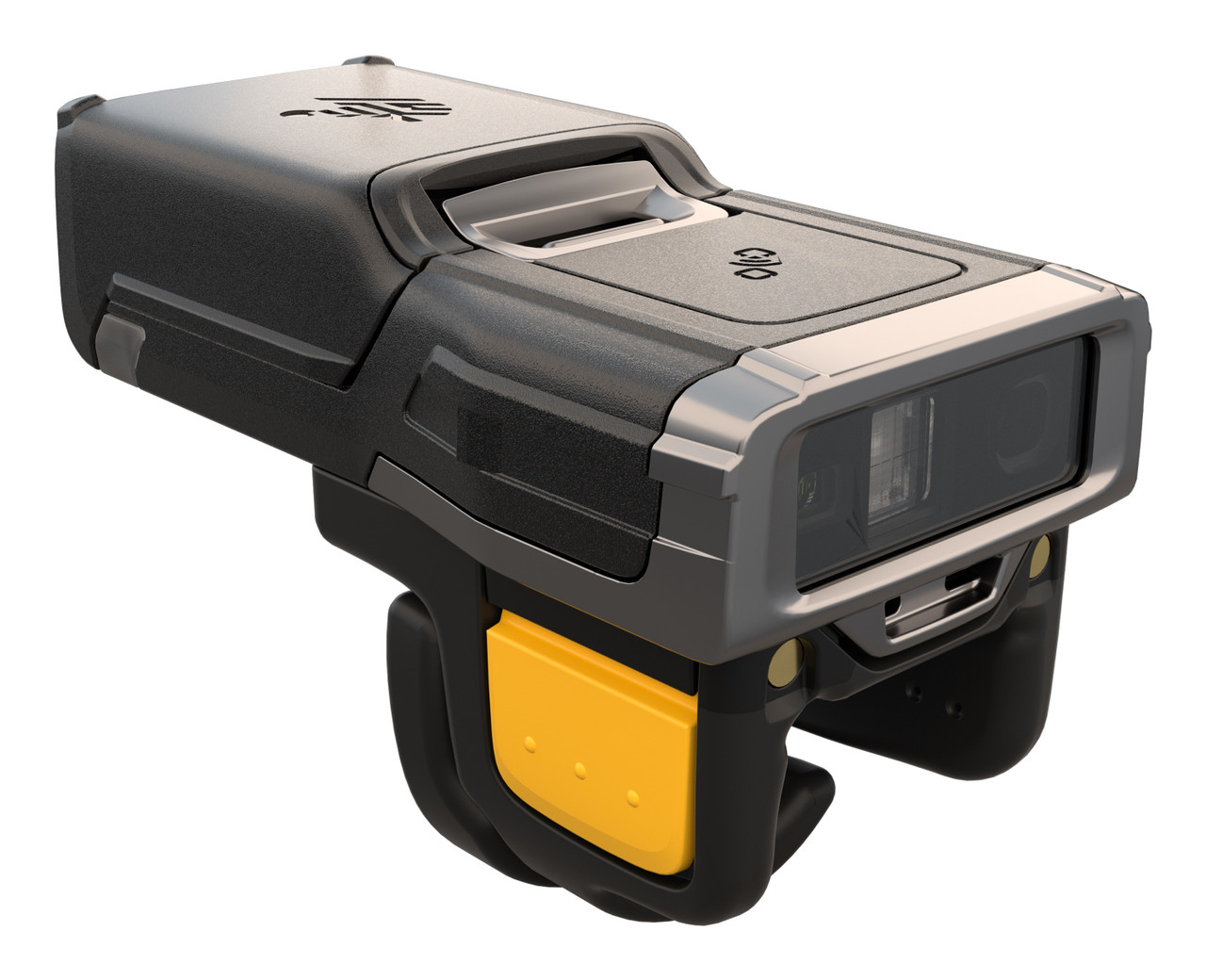

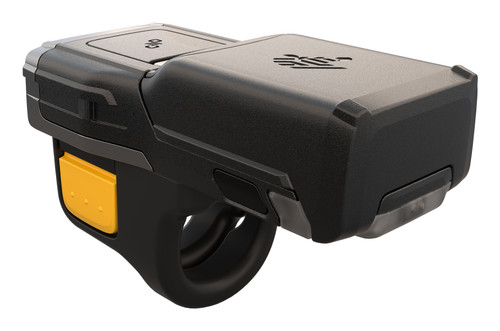

Zebra RS6100 Bluetooth Wearable Scanner - Wireless Connectivity - 1D, 2D - LED - Imager - Area - Bluetooth - IP65 - Manufacturing, Warehouse, Transportation, Logistics, Retail, Sorting, Picking, Inventory, Assembly LineOther Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Application/Usage
Application/Usage Manufacturing
Application/Usage Warehouse
Application/Usage Transportation
Application/Usage Logistics
Application/Usage Retail
Application/Usage Sorting
Application/Usage Picking
Application/Usage Inventory
Application/Usage Assembly Line
Battery Chemistry Lithium Ion (Li-Ion)
Product Type Barcode Scanner
Manufacturer Part Number RS61B0KBENZWR
Weight (Approximate) 4 oz
Connectivity Technology Wireless
Features Vibration
Features Beep
Features Notification LED
Form Factor Wearable
Length 2.6
Manufacturer Zebra Technologies Corporation
Product Model RS6100
Product Name RS6100 Bluetooth Wearable Scanner
Brand Name Zebra
Light Source LED
Width 1.3
Depth 0.8
Battery Capacity 480 mAh
Bluetooth Yes
Drop Specification
Multiple 6 ft./1.8 m drops to concrete over the operating temperature range
Scan Pattern Area
Image Sensor Type Imager
Illumination Type LED
Scan Mode Trigger
Storage Temperature -40°F (-40°C) to 140°F (60°C)
Illumination Color White
Ingress Protection (IP) Rating IP65
Rugged Yes
Scanning Capability 1D
Scanning Capability 2D
Field of View (Horizontal) 37°
Field of View (Vertical) 21°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Maximum Ambient Light 107639 lux
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 100 mil
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 100 mil
Minimum Element Resolution (PDF417) 5 mil
Maximum Element Resolution (PDF417) 6.7 mil
Air Electrostatic Discharge (+/-) 15kV
Contact Electrostatic Discharge (+/-) 8kV
Operating Temperature 32°F (0°C) to 122°F (50°C)
Image Sensor Resolution 2688 x 1520
Humidity (Non-condensing) 5% to 95%
Note Images may not be exact, please check specifications.
