Product Details
StarTech.com 1U 17" Rackmount LCD Console with Integrated 16 Port IP KVM Switch. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Display: TFT LCD. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Certification: CE, FCC, TAA, UL, REACH. Power consumption (typical): 48 W, AC adapter input voltage: 100 - 240 V, AC adapter output voltage: 12 V. Package weight: 17.5 kg, Package width: 628 mm, Package depth: 550 mm

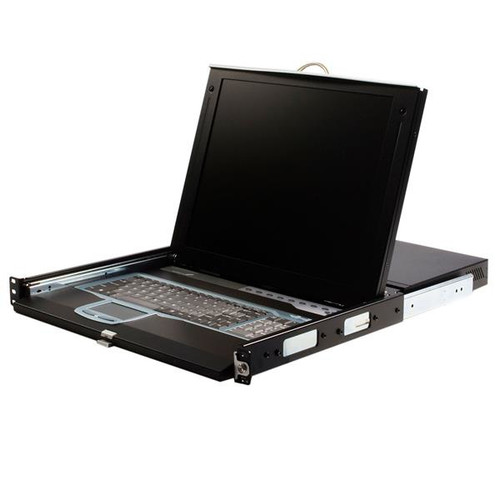

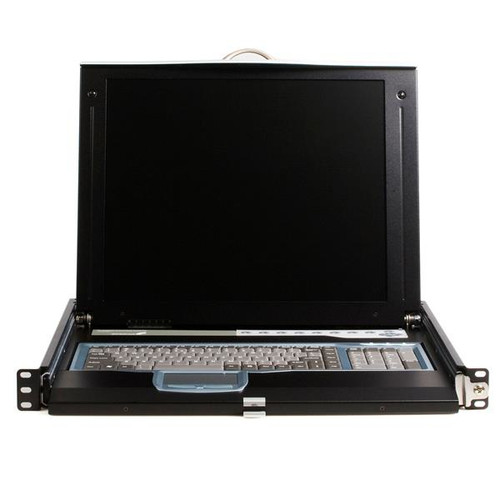

Control 16 servers or KVM switches remotely over an IP network with this rack mountable LCD console This 1U Rack Mount LCD KVM Console features an integrated 16 Port Multi-Platform IP KVM Switch module, 17in active matrix LCD monitor, 105-key keyboard and mouse touchpad neatly combined into 1U of space in any standard rack or cabinet 30in (or greater) in depth. The IP KVM console offers a design similar to that of a rackmounted laptop computer - when the console is not in use, it''s as simple as folding the LCD display and keyboard/mouse up and sliding it back into the server rack on the sturdy mounting rails (included). A highly-scalable server control solution, the integrated 16-port IP-based KVM switch allows 16 computers (up to 136 computers through eight cascaded 16-port KVMs) to be directly controlled from the console or via the LAN, WAN or Internet, with system navigation options including front panel pushbuttons, hotkey commands and a convenient on-screen display. To ensure a comprehensive server remote control solution, the LCD KVM Console offers BIOS level control and full interaction with your system’s boot process, providing exceptional remote monitoring capability and control of every aspect of the connected computers. The IP KVM Console also provides a secure and convenient operating experience, allowing each of the connected computers to be given unique names and locked to prevent unauthorized access. Providing further versatility, the console is designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems and includes all required rack mounting hardware. The StarTech.com Advantage - Security: SSH tunneling, SSL encryption, RADIUS authentication, and a configurable firewall are all included to ensure that your network stays secure. - Versatility: "Hybrid" design allows both PS/2 and USB systems to be conncted simultaneously - Remote Power: Use StarTech.com’s 8 outlet Remote Power Module (PCM815SHNA) to power computers and equipment on an off using an interactive menu. - Serial Control: Use the Serial Remote Interface Module (RPORT) to interact with virtually any device that uses a RS-232 serial terminal interface like routers, switches, environmental controls, alarm systems, and more.
Specifications
| General | |
|---|---|
| Brand | StarTech.com |
| Manufacturer part number | CABCONS1716I |
| HSSL part number | HS-STA-CABCONS1716I |
| UPC / GTIN | 0065030830492 |
| Product type | Rack Consoles |
| Display | |
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display | TFT LCD |
| Display brightness | 350 cd/m² |
| Contrast ratio (typical) | 500:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.264 x 0.264 mm |
| Aspect ratio | 4:3 |
| Response time | 5 ms |
| Display number of colours | 16.78 million colours |
| Colour depth | 24 bit |
| Technical details | |
| Material | Steel |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 445400 h |
| Product colour | Black |
| Rack mounting | Yes |
| Console port | VGA/PS2 |
| Daisy chain | Yes |
| Key lock | No |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 16 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Certificates | |
| Certification | CE, FCC, TAA, UL, REACH |
| Power | |
| Power consumption (typical) | 48 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
| Input current | 1.8 A |
| Output current | 4 A |
| Power plug type | Type M |
| Packaging content | |
| Cables included | AC |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number HS-STA-CABCONS1716I.
