Product Description

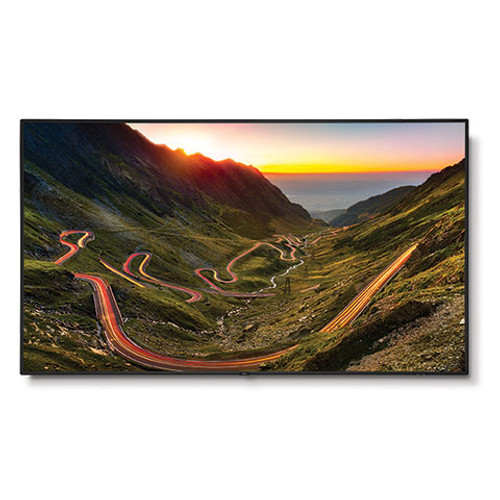

86 LED LCD Public Display Monitor with ATSC/NTSC Tuner and OPS-SDM Adaptor (DS1-TM01 & SB-12AM-1) preinstalled, 350 nits, Anti-Glare Panel, HDMI 2.0 x2, DP 1.2 x 2/Out, OPS slot, 24/7 runtime, 3 year warranty, stand not included (ST-801)
Display
Panel Technology | S-IPS | Viewable Image Size | 86 " |
Aspect Ratio | 16:9 | Native Resolution | 3840x2160 |
Supported Resolutions | DisplayPort: V1.2 (HDCP 1.3) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (DisplayPort 1.2))HDMI: (HDCP 1.4/2.2)VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (MODE2)), 4096 x 2160 (30Hz, 24Hz, 25Hz, 60Hz (MODE2)) | Pixel Pitch | 0.49 mm |
Pixels Per Inch | 51 PPI | Brightness (maximum) | 350 cd/m2 |
Contrast Ratio (typical) | 1200:1 (without local dimming) | Viewing Angle (typical) | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
Response Time (typical) | 8 ms | Refresh Rate | 60Hz |
Active Screen Area | 74.61 x 41.97 in. / 1895.04 x 1065.96mm | Orientation | Landscape/Portrait |
Dimming Capability | Local Dimming Capable | Displayable Colors | More than 1.07 billion |
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
NOTE Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
MPN C861Q-AVT3
