Product Description
Advantech 23.8" Panel PC with Win 10 LTSC and Intel Core i5-7300U - Intel Core i5 7th Gen i5-7300U 2.60 GHz - 8 GB RAM DDR4 SDRAM - 128 GB SSD - 23.8" 1920 x 1080 Touchscreen Display - Windows 10 IoT - Windows - 4 x USB Ports - 2 x USB 2.0 Ports - 2 x USB 3.0 Ports - HDMI - Desktop

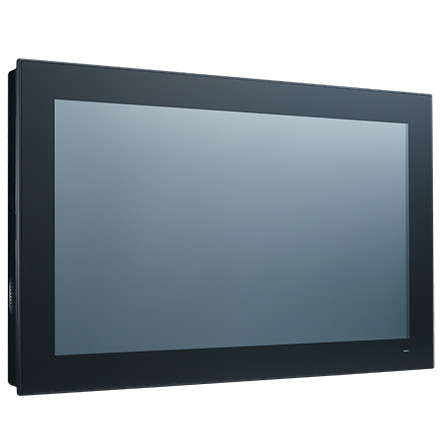

The PPC-3241SW-MART is an all-in-one light panel PC with a wide format 23.8" FHD industrial-grade LCD, Intel® Core™ i5-7300U, 8GB DDR4, 128GB SSD, 90W power adapter and Win 10 LTSC to provide high-performance computing in a compact and fanless system.
Features
- 23.8" true-flat FHD TFT LCD with projected capacitive touch control
- Win 10 IOT LTSC, 8GB DDR4 SDRAM, 128GB 3D TLC SSD
- Fanless design with aluminum alloy enclosure
- Wide Range DC input (12~24V DC), Configurable RS-232/422/485
- IP65-rated front panel, Supports dual displays, VESA 100
- Supports TPM 2.0 (optional)
- No RED Certification
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request page to receive a custom quote on your specific configuration or part/service number not find on our online catalogue. Financing Options Available for all USA customersProduct Videos
Custom Field
Package Contents
- 23.8" Panel PC with Win 10 LTSC and Intel Core i5-7300U
- AC Adapter
Product Type Panel PC
Cache 3 MB
Input Voltage 120 V AC
Input Voltage 230 V AC
Manufacturer Part Number PPC-3241SW-MART
Screen Resolution 1920 x 1080
Standard Memory 8 GB
Weight (Approximate) 18.96 lb
Operating System Windows 10 IoT
Form Factor Desktop
Manufacturer Advantech Co., Ltd
Product Model PPC-3241SW-MART
Product Name 23.8" Panel PC with Win 10 LTSC and Intel Core i5-7300U
Processor Speed 2.60 GHz
Processor Type Core i5
Screen Size 23.8"
Brand Name Advantech
Memory Technology DDR4 SDRAM
Processor Model i5-7300U
Height 14.7"
Width 23.5"
Depth 2.4"
Environmentally Friendly Yes
Environmental Certification Taiwan RoHS
Touchscreen Yes;Processor Manufacturer=Intel"
HDMI Yes;Total Number of USB Ports=4"
Number of USB 2.0 Ports 2
Number of USB 3.0 Ports 2
Total Solid State Drive Capacity 128 GB
Operating System Platform Windows
Processor Generation 7th Gen
Number of Occupied Memory Slots 1
