Product Description

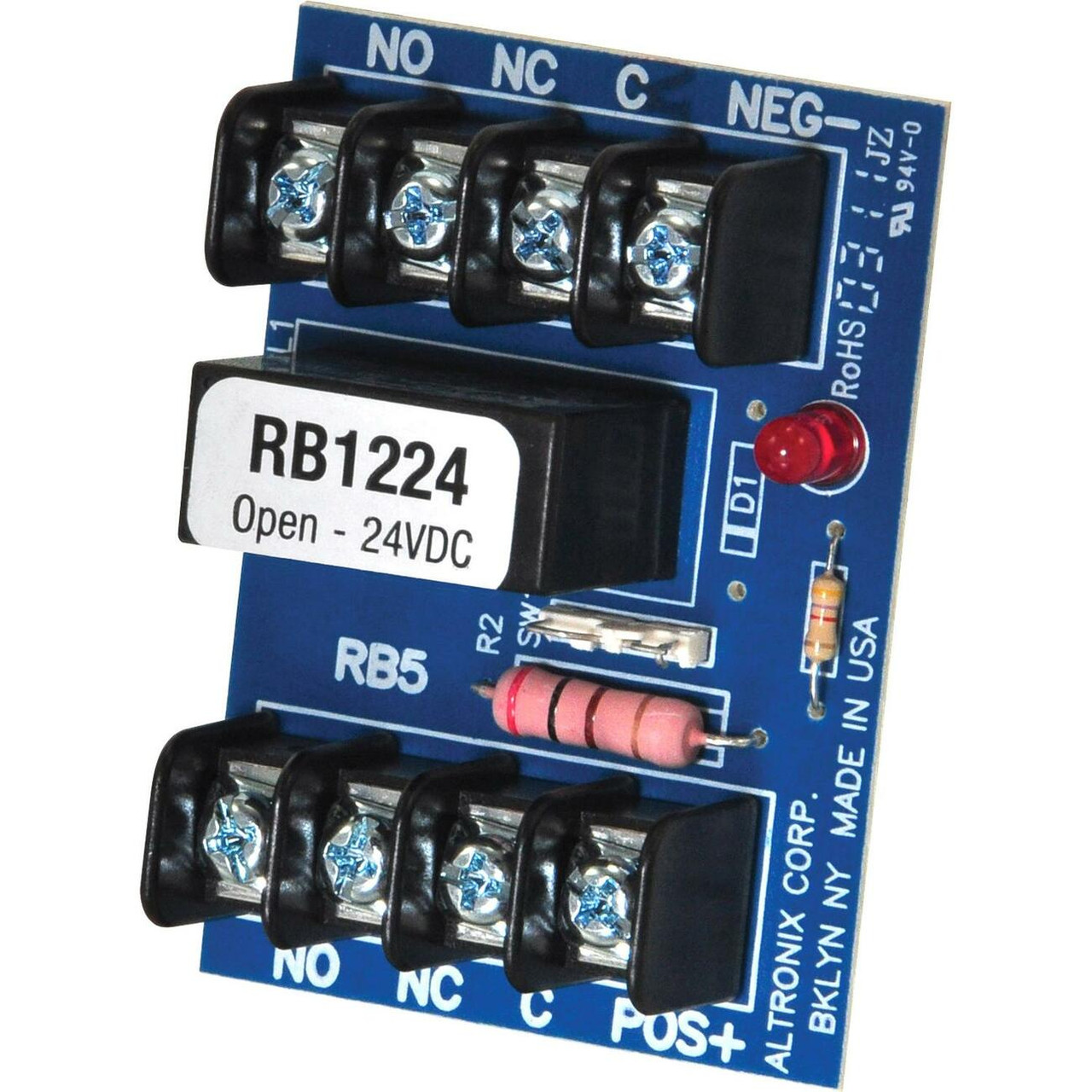

Altronix RB1224 Relay - Double Pole Double Throw (DPDT) - Door Entry, Security System
RB1224 Relay Module can be utilized in many different applications such as: Dry Contact, Line Seizure, Polarity Reversal, Latching Dry Contact, and much more. The RB1224 is snap track mountable. Features
- Relay Module.
- 12VDC or 24VDC operation, 75mA current draw.
- DPDT contacts rated @ 5A/220VAC or 28VDC.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Product Type Relay
Manufacturer Part Number RB1224
Manufacturer Altronix Corporation
Product Model RB1224
Product Name RB1224 Relay
Brand Name Altronix
Application/Usage
- Security System
- Door Entry
Features LED Indicator
Contact Type Double Pole Double Throw (DPDT)
Additional Information
- 12VDC or 24VDC selectable operation
- Coil draws 75mA
- 5 amp/120VAC/28VDC DPDT contacts
Country of Origin United States
Environmentally Friendly Yes
Environmental Certification RoHS
NDAA Compliant Yes
Minimum Operating Temperature -13°F (-25°C)
Maximum Operating Temperature 131°F (55°C)
Minimum Storage Temperature -13°F (-25°C)
Maximum Storage Temperature 158°F (70°C)
Minimum Operating Voltage
- 12 V DC
- 12 V DC
Maximum Operating Voltage
- 24 V DC
- 24 V DC
Weight (Approximate) 2.40 oz
Form Factor Snap Track
