Product Description

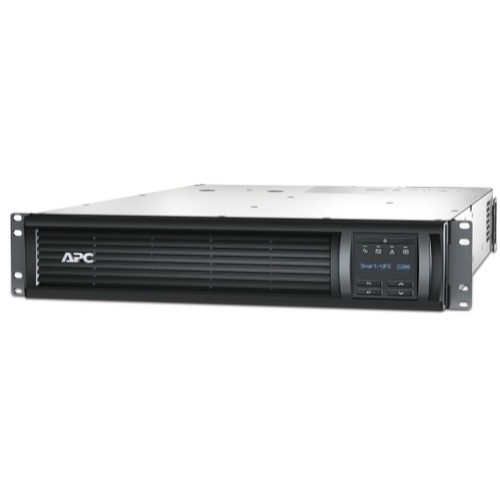

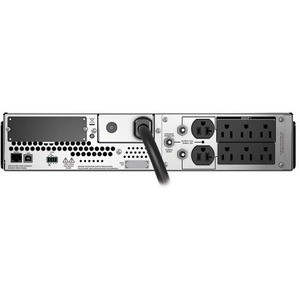

APC by Schneider Electric Smart-UPS 2200VA LCD RM 2U 120V US - 2U Rack-mountable - 3 Hour Recharge - 5 Minute Stand-by - 110 V AC Input - 120 V AC Output - 6 x NEMA 5-15R, 2 x NEMA 5-20R
Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
- Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency - Reduces utility costs, generates less heat.
- Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Limited Warranty | 3 Year |
USB | Yes |
Total Number of Expansion Slots | 1 |
Input Voltage | 110 V AC |
Output Voltage | 120 V AC |
Waveform Type | Sine Wave |
Battery Chemistry | Sealed Lead Acid (SLA) |
Hot Swappable | Yes |
Backup/Run Time (Half Load) | 16 Minute |
Backup/Run Time (Full Load) | 5 Minute |
Battery Characteristics | Spill-proof, Maintenance-free |
Typical Battery Recharge Time | 3 Hour |
Package Contents |
|
Certifications & Standards |
|
Country of Origin | United States |
Environmentally Friendly | Yes |
Environmental Certification | ENERGY STAR |
REACH | |
RoHS | |
Energy Star | Yes |
Emergency Power OFF | Yes |
Plug/Connector Type | NEMA 5-20P |
Receptacle Type | NEMA 5-20R |
NEMA 5-15R | |
Receptacle Detail | 2 x NEMA 5-20R |
6 x NEMA 5-15R |
Product Type | Line-interactive UPS |
Manufacturer Part Number | SMT2200RMUS |
Manufacturer Website Address | http://www.schneider-electric.com |
Manufacturer | Schneider Electric SA |
Product Name | Smart-UPS 2200VA LCD RM 2U 120V US |
Product Line | Smart-UPS |
Brand Name | APC by Schneider Electric |
Weight (Approximate) | 93.28 lb |
Color | Black |
Form Factor | Rack-mountable |
Rack Height | 2U |
Height | 3.5" |
Width | 18.9" |
Depth | 26.9" |
