Product Details

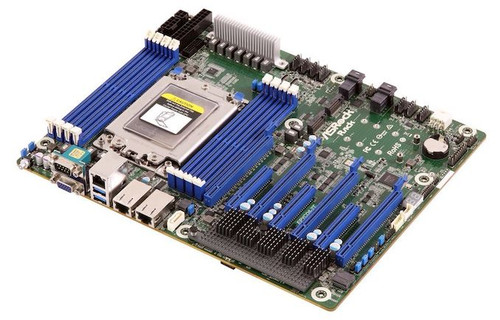

AsRock Rack EPYCD8 Motherboard
Unlock unparalleled performance and scalability for your demanding server workloads with the AsRock Rack EPYCD8 Motherboard. Engineered for professionals and businesses seeking exceptional computing power, this motherboard offers a robust foundation for virtualization, data centers, and high-performance computing.
Exceptional Processing Power:
Harness the raw power of AMD's EPYC 7002/7001 series processors with the single-socket SP3 (LGA4094) support. This motherboard unleashes the full potential of these processors, enabling lightning-fast processing speeds and efficient multitasking capabilities.
Unmatched Memory Capacity and Performance:
Experience seamless responsiveness and data-intensive application performance with support for up to 8 channels of DDR4 memory. With a maximum capacity of 8 DIMM slots, you can equip your system with up to 3200/2933/2666/2400 RDIMM, LRDIMM memory modules for unmatched bandwidth and speed.
High-Speed Connectivity:
Connect to your network with blazing-fast speeds using the dual Intel i350 Gigabit LAN ports. These ports provide high-bandwidth connectivity, ensuring seamless data transfer and network reliability for critical applications.
Features:
- ATX Form Factor (12'' x 9.6'')
- Single Socket SP3 (LGA4094) for AMD EPYC 7002/7001 Series Processors
- 8 x DDR4 DIMM Slots (Up to 3200/2933/2666/2400 RDIMM, LRDIMM)
- 2 x Intel i350 Gigabit LAN Ports
Specification
| Dimensions | |
| Specification | ATX |
| size | 12'' x 9.6'' (305 mm x 244 mm) |
| processor system | |
| CPU | AMD EPYC™ 7002/7001 series processor family |
| pins | Single Socket SP3 (LGA4094) |
| memory | |
| capacity | 8 DIMM slots |
| Specification | Eight Channel DDR4 memory technology Supports DDR4 RDIMM and LRDIMM |
| DIMM Size Per DIMM | RDIMM: 32GB, 16GB, 8GB LRDIMM: 128GB, 32GB |
| Max. DIMM Frequency | RDIMM: 3200/2933/2666/2400MHz LRDIMM: 3200/2933/2666/2400MHz |
| Voltage | 1.2V |
| Expansion slot | |
| PCIe x 16 | SLOT7: PCIe3.0 x16 SLOT5: PCIe3.0 x16 SLOT3: PCIe3.0 x16 SLOT1: PCIe3.0 x16 |
| PCIe x 8 | SLOT6: PCIe3.0 x8 SLOT4: PCIe3.0 x8 SLOT2: PCIe3.0 x8 |
| store | |
| SATA controller | 9 x SATA3 6.0 Gb/s (from 2x mini SAS HD and 1x SATA DOM port) |
| OCuLink for U.2 | 2 |
| M.2 | 2 (M2_1: 2230/2242/2260/2280, SATA/PCIE(X4); M2_2: 2230/2242/2260/2280/22110, SATA/PCIE(X4)) |
| Ethernet | |
| interface | 1000 /100 /10 Mbps by Intel ® i350 |
| Additional GbE Controller | 2 x RJ45 GLAN by Intel ® i350 1 x RJ45 Dedicated IPMI LAN port by RTL8211E Supports Wake-On-LAN Supports Energy E_cient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE LAN1 supports NCSI |
| manage | |
| Integrated baseboard management controller | ASPEED AST2500 |
| Smart platform out-of-band management interface | 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | Watch Dog NMI |
| show | |
| controller | ASPEED AST2500 |
| video random access memory | DDR4 128MB |
| Backplane output/input interface | |
| monitor connector | 1 xD-Sub |
| USB 3.2 Gen1 port | 2 |
| RJ-45 network port | 2+1 RJ45 Gigabit Ethernet LAN port LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| serial port | 1 x COM port |
| UID button/UID LED | 1 |
| Built-in connector | |
| Power connector | 1 x (24-pin) + 1 x (8-pin) + 1 x (4-pin) + 1 x (6-pin)(6 pin for GPU for PCIE Slot) |
| Auxiliary panel connector | 1 (includes chassis intrusion, location button & LED, and front LAN LED) |
| Trusted platform module header | 1 |
| Temperature sensing header | 1 |
| IPMB header | 1 |
| Fan header | 7 Fans (6-pin, 1CPU/4Front/2Rear) |
| USB 3.2 (Gen1) pin connector | 1 (supports 2 USB 3.0 ports) |
| front panel | 1 |
| BMC_SMB Header | 1 |
| Clear CMOS | 1 |
| Built-in LED | |
| Port 80 LED | 1 |
| Fan Fail LED | 1 (only Fan Fail LED) |
| System BIOS | |
| BIOS specifications | 32MB AMI UEFI Legal BIOS |
| BIOS features | Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8 Support ASRock Rack Instant Flash |
| Hardware monitoring | |
| temperature | CPU Temperature Sensing MB/TR1/Card side Temperature Sensing |
| fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V, +BAT, 3VSB, 5VSB |
| Operating system support | |
| operating system | Microsoft ® Windows: Server 2012 R2 (64 bit) Server 2016 (64 bit) Linux: RedHat Enterprise Linux Server 6.9 (64 bit) / 7.3 (64 bit) CentOS 6.9 (64 bit) / 7. 3 (64 bit) SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP2 (64 bit) Ubuntu 16.04 (64 bit) / 17.04 (64 bit) CITRIX XenServer 7.5 Virtual: VMWare ® ESXi 6.5 u1 vSphere 6.5 u1 * Please refer to our website for the latest OS support list. |
| environment | |
| temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operating humidity: 20% ~ 90% (Non condensing) |
