Asus Dual Radeon RX9060XT 8G GDDR6 - DUAL-RX9060XT-8G

Product Description

ASUS Dual Radeon RX9060XT 8G GDDR6 - DUAL-RX9060XT-8G

Dual Fans, Perfect Fit

ASUS Dual Radeon RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

2.5 Slot Design

Compatible with small-form-factor builds

Axial-Tech Fans

Longer blades improve airflow and dispersion

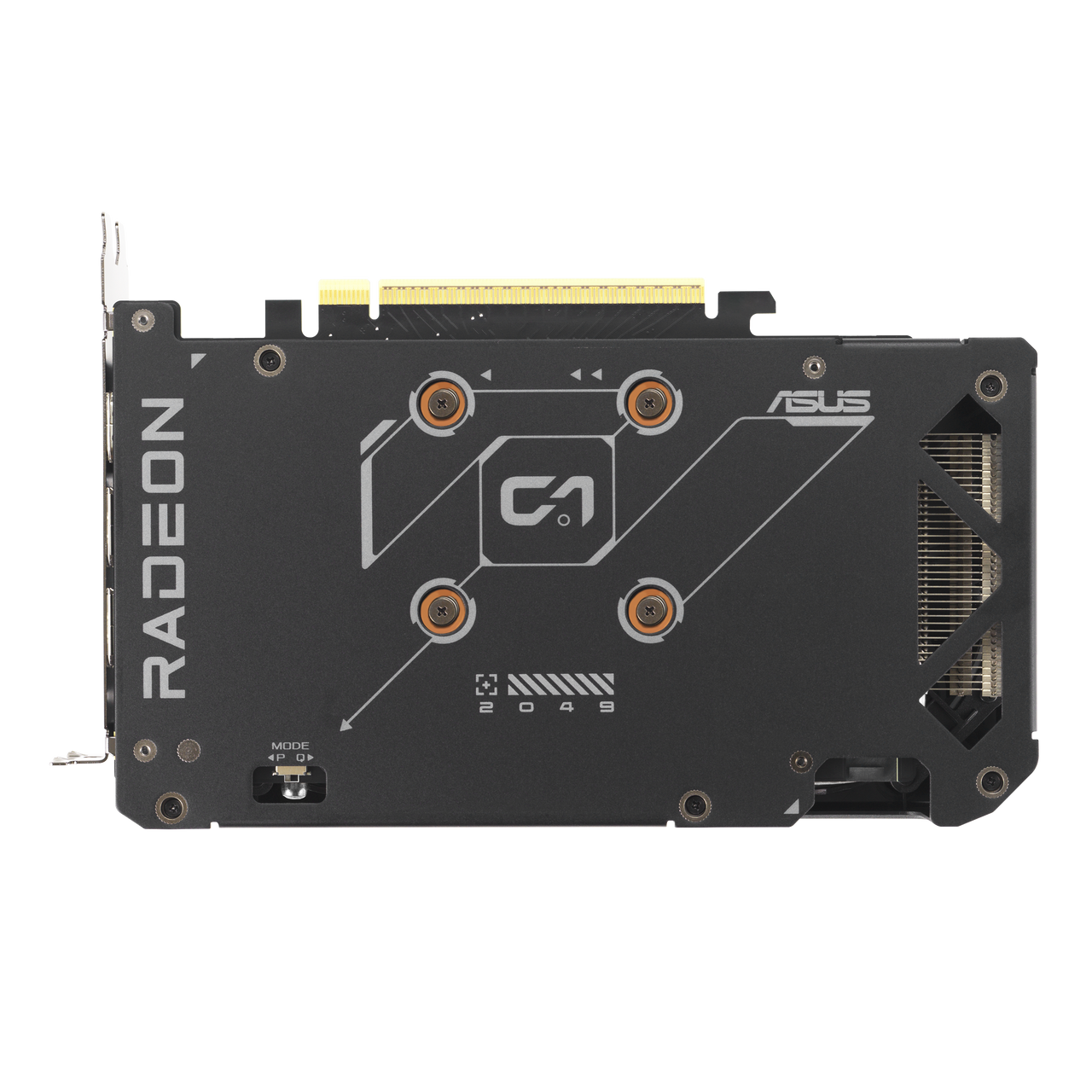

Vented Backplate

Enhanced cooling for optimal performance

Dual-Ball Fan Bearings

Up to twice the lifespan of sleeve bearings

Dual BIOS

Toggle between Performance or Quiet modes

Ideal PSU Companion

ASUS Prime Gold 750W

GPU Tweak III

Ultimate GPU tuning utility

Specifications

Model

DUAL-RX9060XT-8G

Graphic Engine

AMD Radeon RX 9060 XT

Bus Standard

PCI Express 5.0

OpenGL

OpenGL 4.6

Video Memory

8GB GDDR6

Engine Clock

TBD

Stream Processors

2048

Memory Speed

20 Gbps​

Memory Interface

128-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1b)
Yes x 2 (Native DisplayPort 2.1a)
HDCP Support Yes (2.3)

Maximum Display Support

3

NVlink/ Crossfire Support

No

Accessories

1 x Thank you card
1 x Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions

202 x 120 x 49mm

Recommended PSU

550W

Power Connectors

1 x 8-pin

Slot

2.5 Slot
