Product Description

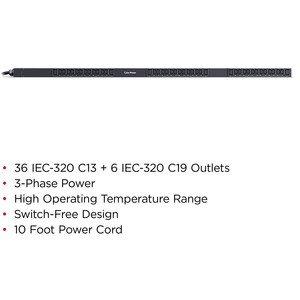

CyberPower PDU13103 42-Outlets PDU - Basic - NEMA L21-20P - 36 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 0U - Vertical - Rack-mountable
Deliver reliable unfiltered power to connected equipment with the CyberPower PDU13103 basic 3-Phase PDU. Designed for data centers and other electrically demanding applications, this unit features rugged, industrial-grade metal housing, network-grade outlets and operates in high temperatures up to 140°F (60°C).
The PDU13103 supports a 200V-240V 20A input, includes 42 IEC outlets, and provides a maximum output load of 5.7kW. The CyberPower PDU13103 is protected by a three-year limited warranty.
The PDU13103 supports a 200V-240V 20A input, includes 42 IEC outlets, and provides a maximum output load of 5.7kW. The CyberPower PDU13103 is protected by a three-year limited warranty.
Features
- Phase: 3-Phase
- Amps: 20 A (Derated to 16 A)
- Volts: 200 V - 240 V
- Max. Output Load: 5.7 kW
- Frequency: 50/60 Hz
- Input Plug Type: NEMA L21-20P
- Outlets: (36) IEC-320 C13 + (6) IEC-320 C19
- Size: 0U Rackmount
- Cord Length (ft): 10
- Dimensions (in): 2.2W x 70.5H x 2.2D
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Package Contents
- PDU13103 42-Outlets PDU
- Adjustable Mounting Brackets
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number PDU13103
Limited Warranty 3 Year
Output Voltage 200 V AC
Output Voltage 240 V AC
Weight (Approximate) 12.61 lb
Input Current 20 A
Manufacturer CyberPower Systems, Inc
Product Model PDU13103
Product Name PDU13103 42-Outlets PDU
Mount Type Rack-mountable
Rack Height 0U
Brand Name CyberPower
Plug/Connector Type NEMA L21-20P
Input Voltage Range 200 V AC - 240 V AC
Height 70.5"
Width 2.2"
Depth 2.2"
Phase Three Phase
Receptacle Type IEC 60320 C13
Receptacle Type IEC 60320 C19
Environmentally Friendly Yes
Environmental Certification RoHS
Output Voltage Range 200 V AC - 240 V AC
PDU Type Basic
Mounting Orientation Vertical
Power Rating (Watt) 5700 W
Product Color Black
Receptacle Detail 36 x IEC 60320 C13
Receptacle Detail 6 x IEC 60320 C19
Note Images may not be exact, please check specifications.
