Product Description
GIGABYTE H223-Z10 (rev. AAP1) High Density Server - AMD EPYC 9004 - 2U 3-Node UP 6-Bay E1.S Gen4 NVMe
KEY FEATURES
- 2U 3-node front access server system
- AMD EPYC 9004 Series processors
- AMD EPYC 9004 Series processors with AMD 3D V-Cache Technology
- Single processor per node, 5nm technology
- 12-Channel RDIMM DDR5 per processor, 36 x DIMMs
- Dual ROM Architecture
- 2 x CMC ports
- 6 x 9.5mm E1.S Gen4 NVMe hot-swappable bays
- 3 x FHHL PCIe Gen5 x16 slots
- 3 x LP PCIe Gen5 x16 slots
- 3 x OCP 3.0 Gen5 x16 slots
- 1+1 3000W 80 PLUS Titanium redundant power supplies
Powering the Next Generation of Server Architecture and Energy Efficiency
The path to AMD's 5nm 'Zen 4' architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.
4th Gen AMD EPYC Processors for SP5 Socket
5nmarchitecture
Compute density increased with more transistors packed in less space
128CPU cores
Dedicated cores and targeted workloads for Zen 4c & Zen 4 cores
Large L3cache
Select CPUs have 3x or more L3 cache for technical computing
SP5compatibility
All 9004 series processors are supported on one platform
12channels
Memory capacity can achieve 6TB per socket
DDR5memory
Increased memory throughput and higher DDR5 capacity per DIMM
PCIe 5.0lanes
Increased IO throughput achieving 128GB/s bandwidth in PCIe x16 lanes
CXL 1.1+support
Disaggregated compute architecture possible via Compute Express Link
Select GIGABYTE for the AMD EPYC 9004 platform
High Performance
Servers and motherboards by GIGABYTE are tested to ensure peak performance for demanding CPU workloads. All the latest technology is supported.
Compute Density
One single socket solution can outperform many dual CPU servers. Dual socket models also support 192 cores in a 1U chassis. More compact performance.
Fast & Stable Connectivity
Keeping pace with the challenges for next gen technology, well designed GIGABYTE boards provide users the signal integrity for PCIe 5.0
Modularity
Our building block design allows new models to quickly come to market. And users can now have BMC on a OCP module customized by GIGABYTE.
Collaboration
AMD and GIGABYTE have maintained a healthy relationship that values shared knowledge in order to get the latest technology into data centers.
Optimal Price
Our broad portfolio of products and models allows customers to only select the features they require while doing so at a lower TCO.

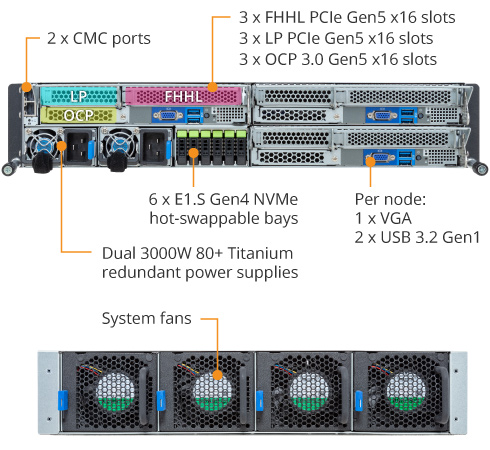

H223-Z10 Product Overview

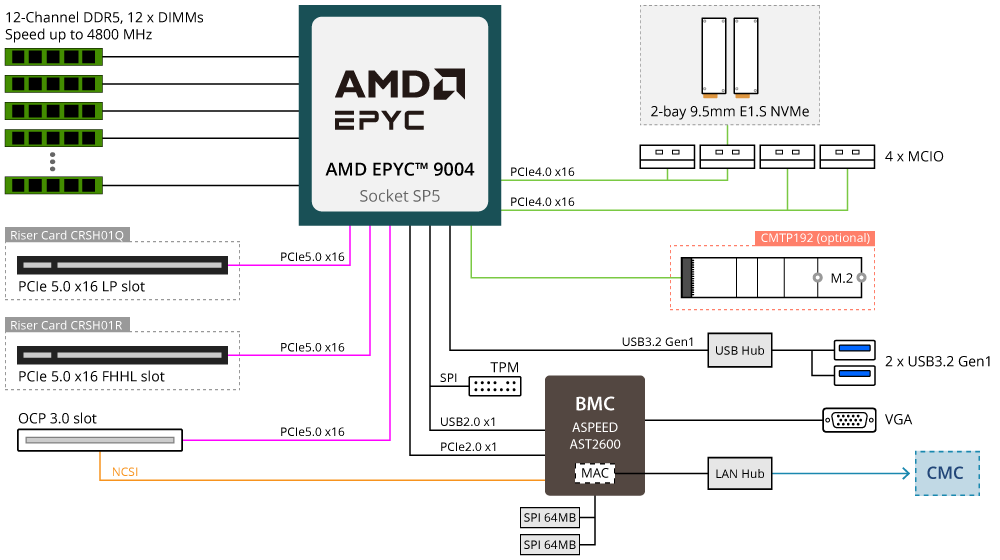

H223-Z10 Block Diagram
High Performance

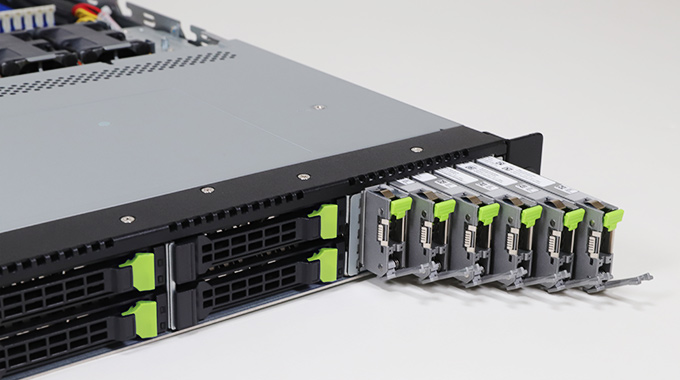

Support EDSFF E1.S NVMe flash drives
The new high-speed and high-capacity EDSFF E1.S form factor features rapid NVMe interface connections and enhanced power and thermal capabilities. Supporting these SSDs enables servers to fully utilize the increasing PCIe bandwidth and number of PCIe lanes, offering elevated capacity, flexibility, and scalability while maintaining the advantages of conventional 2.5” SSDs.
Power Efficiency
Automatic Fan Speed Control
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
Cold Redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, GIGABYTE has introduced a power management feature called Cold Redundancy for servers with N+1 power supplies. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, resulting in a 10% improvement in efficiency.
High Availability
Smart Ride Through (SmaRT)
To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.
Smart Crises Management and Protection (SCMP)
SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.
Dual ROM Architecture
If the ROM that stores the BMC and BIOS fails to boot, the system will reboot with the backup BMC and/or BIOS replacing the primary. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization. For the BIOS, it can be updated based on user's choice of firmware version.
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
User Friendly
Certified Ready with Software Partners
Being a member of key software alliance partner programs enables GIGABYTE to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

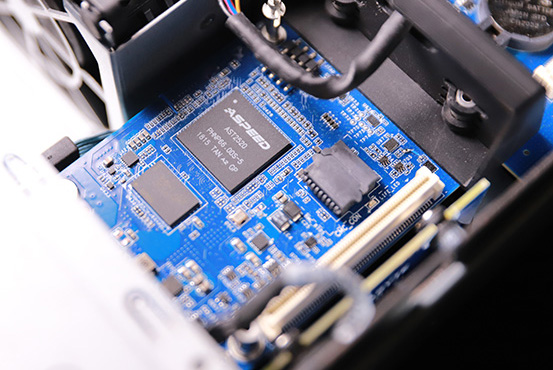

CMC for Chassis Management & Multi-Node Monitoring
GIGABYTE’s H-Series Servers feature a Chassis Management Controller (CMC) for chassis-level management and node-level monitoring by connecting nodes internally via BMC chips integrated on each node. Resulting in only one mLAN connection required to perform monitoring of all four nodes*, and results in less Top-of-Rack (ToR) cabling and switch connections.
* IPMI only (no iKVM functionality)

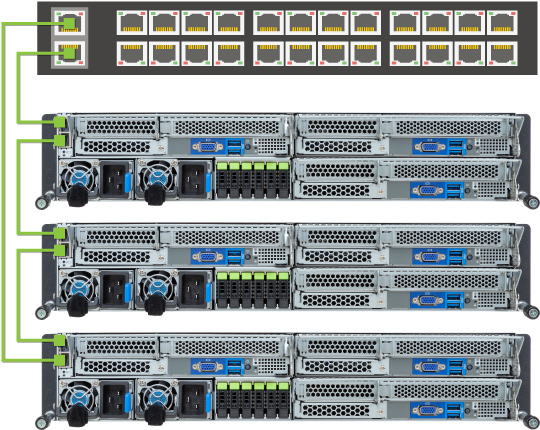

Ring Topology Management
GIGABYTE H-Series servers feature the ability to create a “ring” connection for monitoring & management of all servers in a rack for greater cost savings and management efficiency.
Value-added Management
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.
GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:
- Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
- Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
- Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.
GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:
- GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
- GSM CLI: A command-line interface for monitoring and managing remotely.
- GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
- GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
- GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
