Product Description
Hauppauge WinTV-quadHD 01609 TV Tuner - Functions: TV Tuning, Video Recording, Video Streaming - PCI Express x1 - QAM, ATSC - MPEG-2 - PC HGHT PIP RECORD 4 SHOWS AT ONCE
WinTV-quadHD: Watch or record up to four TV programs at a time! l WinTV-quadHD features:

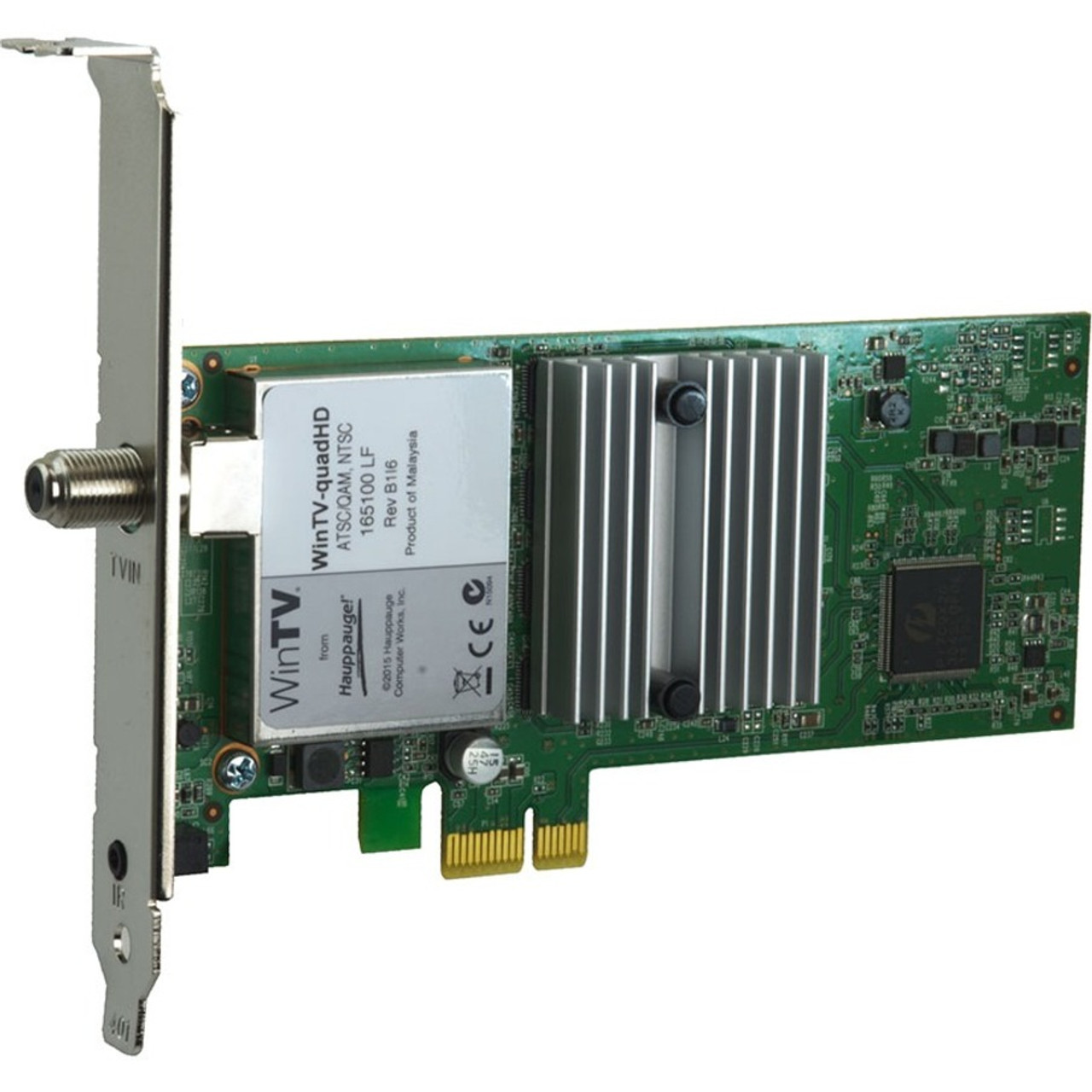

- Four tuners on one half height PCI Express board. WinTV-quadHD will fit in both full and half height PC's
- Watch, pause or record up to four ATSC or clear QAM HD TV programs at the same time
- Includes a Hauppauge remote control, with 1 meter IR receiver cable
- Includes the WinTV v10 application, which give you TV-in-a-window or TV full screen, plus picture-in-picture
- Also works with Windows Media Center (included in Windows 7 and optional in Windows 8). The WinTV-quadHD is seen as 4 tuners so you can watch one TV program or record up to 4 TV programs at the same time.
- ATSC is free HD TV for the U.S. and Canada
- Clear QAM is digital cable TV (please contact your cable TV provider to see if clear QAM is available in your area)
ATSC over-the-air digital TV features:
- ATSC is free over-the-air HD TV. ATSC is broadcast in the US and Canada, and does not require a subscription. ATSC is HD and FREE!
- WinTV-quadHD has four ATSC over-the-air digital TV tuners. Supports all ATSC formats, up to the highest HD format
- Watch, pause or record up to four ATSC digital TV programs using high quality MPEG-2. TV recordings will typically consume 5 GB of disk space per hour for ATSC high definition
- Built-in antenna splitter allows you to make one connection to an ATSC antenna but watch and record up to 4 channels
Clear QAM digital cable TV features:
- Quad clear QAM digital cable TV receivers. Watch and record up to four clear QAM digital cable TV channels at the same time
- Built-in cable TV splitter allows you to make one connection to cable TV
- Note: not all cable TV networks send clear QAM channels. Please check with your local cable operator for the availability of clear QAM digital cable TV
Note: the WinTV-quadHD is for digital TV only and does not support analog TV
If you need analog TV, any one of the WinTV-HVR products (such as the WinTV-HVR-955Q) include analog TV. The HVR stands for 'hybrid video recorder' and all WinTV-HVR's have both analog and digital TV reception.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Package Contents
- WinTV-quadHD 01609 TV Tuner
- Hauppauge Remote control with 1 Meter IR Receiver Cable
Host Interface PCI Express x1
Product Type TV Tuner
Manufacturer Part Number 1609
Platform Supported PC
Limited Warranty 2 Year
Functions TV Tuning
Functions Video Recording
Functions Video Streaming
Manufacturer Hauppauge Computer Works
Product Model 01609
Product Name WinTV-quadHD 01609 TV Tuner
Product Line WinTV-quadHD
Video Formats MPEG-2
Brand Name Hauppauge
Operating System Supported Windows 7
Operating System Supported Windows 8
Operating System Supported Windows 10
Operating System Supported Windows 11
Operating System Supported Windows Vista
Environmentally Friendly Yes
Environmental Certification WEEE
Video Signal Format QAM
Video Signal Format ATSC
Note Images may not be exact, please check specifications.
