Product Description

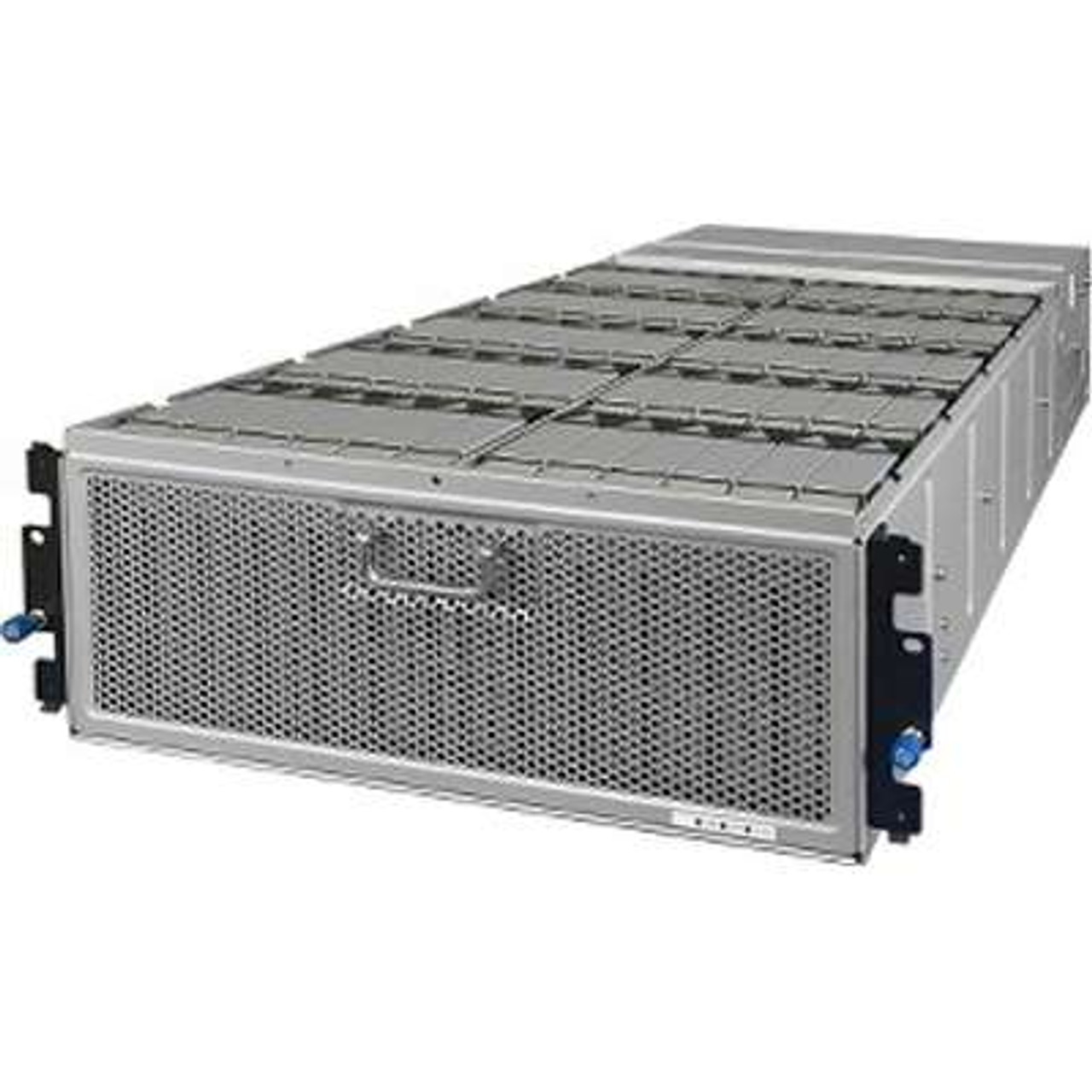

HGST Storage Enclosure 4U60-60 G3 720TB nTAA SAS 512E ISE
HGST 4U60 G3 Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable - 60 x HDD Supported - 60 x Total Bay - 60 x 3.5" Bay 720TB NTAA SAS 512E ISE
Designed for High Density and Flexibility
The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The compact, efficient form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.
A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD or hybrid storage.
Designed for Big Data
High Density
Up to 720TB raw capacity in a 4U enclosure
Flexible
Choice of SAS or SATA with option for a flash data acceleration tier
Innovative
IsoVibe and ArcticFlow for improved performance, cooling, and TCO
- Up to 60 Ultrastar DC HC520 HDDs (SAS or SATA)
- Up to 720TB raw capacity in 4U
- Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of 60 drive slots
- Dual-port SAS for high availability or single-port SATA for low cost
- Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
- 5-year limited warranty
Host Interface | 12Gb/s SAS |
Limited Warranty | 5 Year |
Number of Total Expansion Bays | 60 |
Number of 3.5" Bays | 60 |
Weight (Approximate) | 198 lb |
Form Factor | Rack-mountable |
Rack Height | 4U |
Height | 6.9" |
Width | 16.7" |
Depth | 38.7" |
Total Hard Drive Capacity Installed | 720 TB |
Number of Hard Drives Supported | 60 |
Number of Hard Drives Installed | 60 |
Product Type | Drive Enclosure |
Manufacturer Part Number | 1ES0362 |
Manufacturer Website Address | http://www.wdc.com |
Manufacturer | Western Digital Corporation |
Product Model | 4U60 G3 |
Product Name | 4U60 G3 Drive Enclosure |
Brand Name | HGST |
