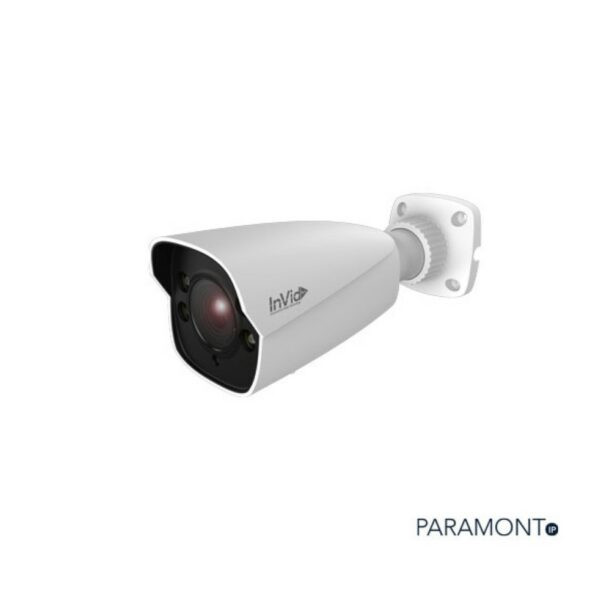

InVid PAR-P2FACEBIR8G1 IP Camera, 2 Megapixel - PAR-P2FACEBIR8G1

Product Description

2 Megapixel, True Facial Recognition With Compatible NVR, True Day/Night, D-WDR, CVBS Output, IP67 Weather Resistant, 98’ IR Range, 12VDC/PoE Operation

Core Features:

• 2 Megapixel (1920×1080) Resolution
• Fixed Lens: 8mm
• True Facial Recognition Capable with Compatible NVR
• White Light Detection for True Facial Recognition
• True Day/Night
• H.265+/H.265/H.264+/H.264/MJPEG Compression
• 30 FPS Recording and Live
• D-WDR
• IR Range up to 98’
• CVBS Video Output
• SD Card Local Storage, 128GB
• Audio Input
• IP67 Weather Resistant
• 12VDC/PoE Operation
• ONVIF
• Smart Analytics
• Free iOS & Android Apps for Smart Phones & Tablets
• Free Central Management Software (CMS) to manage multiple
  units & sites from a single platform
• Free MAC client software is available to manage your system from
  your Apple computer

Camera PAR-P2FACEBIR8G1
Image Sensor 1 / 2.8” CMOS
Image Size 1920 x 1080
Electronic Shutter 1 / 25s ~ 1 / 100000 s
Iris Type Fixed Iris
Min. Illumination 0 Lux
Lens 8mm@F1.6, Horizontal FoV: 40.6°; Recommended Face capturing
distance: 9.5ft
Lens FOV 8mm 40.6° H, 23.5° V, 46° Crossline
Lens Mount M12
Wide Dynamic Range Digital WDR
BLC Yes
HLC Yes
Defogging Yes
Digital NR 3d DNR
Angle Adjustment Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°
Video Compression H.265+ / H.265 / H.264+ / H.264 /MJPEG
H. 264 Compression Standard Baseline Profile/Main Profile/ High Profile
Resolution 1080P (1920x1080), 720P (1280x720), D1, CIF, 480x240
Main Stream 60Hz:1080P/720P (1~30FPS)
Sub Stream 60Hz:D1/CIF (1~30FPS)
Third Stream 60Hz:CIF/480x240 (1~30FPS)
Bit Rate 128 Kbps ~ 6Mbps
Bit Rate Type VBR/CBR
Image Settings
ROI, Saturation, Brightness, Chroma, Constrast, Wide Dynamic,
Sharpen, NR, Etc. Adjustable through client software or web
browser
ROI Each ROI to be configured saparately
Interfaces
Network RJ45
Video Output CVBS Video Input Output (BNC x 1); On-Board CVBS Output x 1
Audio MIC IN x 1
Storage Built-In Micro SD Card, up to 128 GB
Hardware Reset Yes
Functions
Remote Monitoring Web Browsing, CMS Remote Control
Online Connection Support Simultaneous Monitoring for up to 6 users; Support Multistream real-time transmission
Network Protocol IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP,
802.1x, UPnP, HTTPS, QoS
Interface Protocol ONVIF
Storage Network Remote Storage; Micro Sd Card
Smart Alarm Motion Detection, SD Card Error, SD Card Full
Intelligent Analytics
Object Removal Detection, Regional Intrusion Detection, Abnormal
Video Detection, Line Crossing Detection, People Intrusion, People
Counting, Crowd Density, Face Detection (Optional)
General Functions Watermark, IP Address Filtering, Video Mask, Heartbeat, Password
Protection
PoE Yes (802.3af)
LED View Distance 98ft
Ingress Protection IP67
Face Detection
Face Detection Pupil Distance of a facial image over 20 Pixels can be detected
Face Capturing By precision detecting, tracing, capturing, scoring, and screening
the moving faces to get the most effective snapshots
Panorama Capturing Support panorama capturing and self-defined informative overlay,
like device ID, time, Etc
Intelligent Light Compensation Built-in High efficient White Light LEDs, time switch available
Others
Power Supply DC12V/PoE
Power Consumption <12W
Operating Environment -22°F~140° (-30°C~60°C) Humidity: Less than 95% (Non-condensing)
Dimensions (mm) 3.17 x 8.57
Weight (net) Approx. 0.67KG
Installation Wall Mounting, Ceiling Mounting
