Product Description

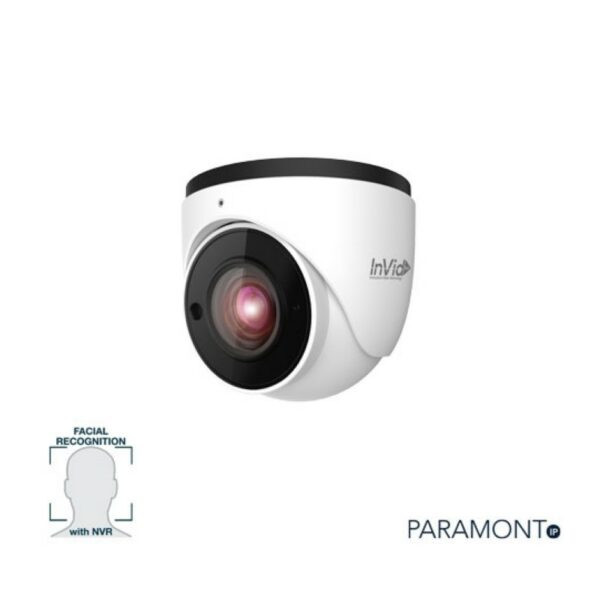

2 Megapixel IP Plug & Play Outdoor Turret, True Facial Recognition with NVR, 2.8-12mm Auto-Focus Motorized, White Light Detection, CVBS Output, D-WDR, Built-in Mic, SD Card Slot, PoE/12VDC
Core Features:
- 2 Megapixel (1920×1080) Resolution
- Motorized Auto-Focus 2.8-12mm Lens
- True Facial Recognition Capable with Compatible NVR
- White Light Detection for True Facial Recognition
- True Day/Night
- H.265+/H.265/H.264+/H.264/MJPEG Compression
- 30 FPS Recording and Live
- D-WDR
- IR Range up to 98’
- CVBS Video Output
- SD Card Local Storage, 128GB
- Audio Input: Built-In Mic
- IP67 Weather Resistant
- 12VDC/PoE Operation
- ONVIF
- Smart Analytics
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) to manage
multiple units & sites from a single platform - Free MAC client software available to manage your
system from your Apple computer
Weight | 1.4 lbs |
---|---|
Dimensions | 8 × 8 × 6 in |
Brand | InVid |
IP Camera Audio Input | Audio Input & Built-in Mic |
IP Camera Type | Turret |
IP Camera Housing Material | Metal |
IP Camera IR Range | 51-100 ft |
IP Camera Lens | Motorized Auto-Focus |
IP Camera Light Options | IR, White Light |
IP Camera Megapixels | 2 MP |
IP Camera Weather Rating | IP67 Weatherproof |
Specialty Camera Features | True Facial Recognition + White Light |
IP Camera White Light Range | 51-100 ft |
Camera PAR-P2FACETX2812G1
Image Sensor 1 / 2.8’ CMOS
Image Size 1920 x 1080
Electronic Shutter 1/ 25 s ~ 1 / 100000 s
Iris Type Fixed Iris
Min. Illummination 0 Lux
Lens 2/8~12mm@f1.4; Horizontal Field OF View: 93.2°~38.7°
Recommended Face Capturing Distance: 5-22 Feet
Lens FOV 2.8-12mm: 93.2°-38.7° H, 63.5°-22.3° V, 101°-43.9° Crossline
Lens Mount Ø14
Wide Dynamic Range Digital WDR
BLC Yes
HLC Yes
Defogging Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°; Tilt 0°~80°; Rotation: 0°~360°
Video Compression H.265+ / H.265/ H.264+/ H.264/ MJPEG
H.264 Compression Standard Baseline Profile/ Main Profile / High Profile
Resolution 1080P (1920 x 1080), 720P (1280 x 720), D1, CIF, 480 x 240
Main Stream 60Hz: 1080P/720P (1~30FPS); 50Hz: 1080P/720P (1~25FPS)
Sub Stream 60Hz: D1/CIF (1~30FPS); 50Hz: D1/CIF (1~25FPS)
Third Stream 60Hz: CIF/480x240 (1~30FPS), 50Hz: CIF/480x240 (1~25FPS)
Bit Rate 128 Kbps ~ 6 Mbps
Bit Rate Type VBR/CBR
Image Settings ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. Adjustable through client software or web browser
ROI Each ROI to be configured separately
Interfaces
Network RJ45
Video Output CVBS Video Output (BNC x 1); On-board CVBS Output x 1
Audio MIC IN x 1; Built-In Mic x1
Storage Built-in Micro SD Card Slot, up to 128 GB
Hardware Reset Yes
Functions
Remote Monitoring Web Browsing, CMS Remote Control
Online Connection Support Simultaneous monitoring for up to 6 users; Support multistream real-time transmission
Network Protocol IPv4, IPv6, UDP, NTP, PPPoE, SMTP, FTP, SNMP, 802.1x, uPnP, HTTPS, QoS
Interface Protocol ONVIF
Storage Network Remote Storage, Micro Sd Card Storage up to 128GB
Smart Alarm Motion Detection; SD Card error, SD Card full
Intelligent Analytics
Object removal detection, regional intrusion detection, abnormal
video detection, line crossing detection, people intrusion, people
counting, crowd density, face detection (Optional)
General Function Watermark, IP Address filtering, Video Mask, Heartbeat, Password
protection
PoE Yes (802.3af)
LED View Distance 65-98 ft.
Ingress Protection IP67
Face Detection
Face Detection Pupil Distance of facial image over 20 pixel can be detected
Face Capturing By precision detecting, tracing, capturing, scoring, and screening
the faces to get the most effective face snapshots
Panorama Capturing Support panorama capturing and self-defined information overlay,
like device ID, Time, etc.
Intelligent Light Compensation Built-in high efficient white light LEDs, time switch available
Others
Power Supply DC12V/PoE
Power Consumption <12.5W
Operating Environment -22°F~140°F (-30°C~60°C) humidity: Less than 95% (Non-condensing)
Dimensions 4.3 x 4.9 in (111.5 x 99.6mm)
Weight Approx. 1.4 lbs (0.67KG)
