Product Description

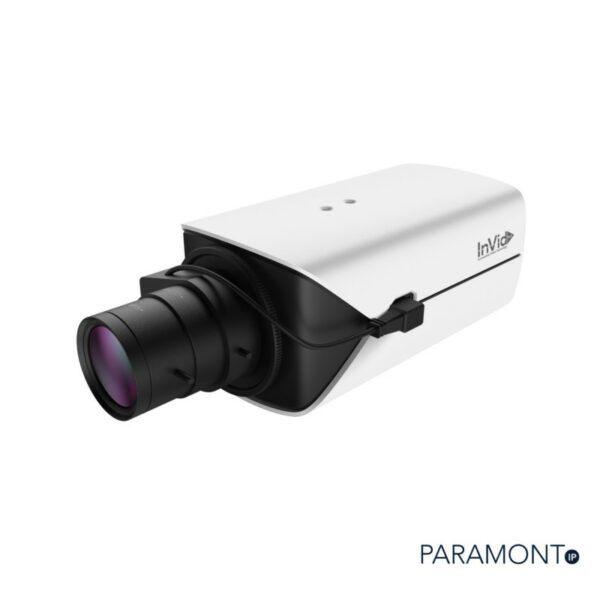

4 megapixel IP Plug & Play Indoor Box Camera, True AI, CVBS Output, True WDR, Audio input/Output, Built-in Mic, SD Card Slot, 12VDC/24VAC/ PoE, Facial Recognition.
Core Features:
- 4 Megapixel Resolution
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- Facial Recognition Capable with Compatible NVR
- Smart H.265, H.265+, H.265, Smart H.264, H.264+, H.264, MJPEG Compression
- 30 FPS Recording and Live
- True WDR 120dB
- CVBS Video Output
- Micro SD Slot: Up to 256GB
- Audio Input: Built-in Mic
- Audio Output
- 12VDC/24VAC/PoE
- ONVIF
- Free App: iOS & Android
- Free CMS (Central Management Software)
- Free MAC client
Weight | 1.1 lbs |
---|---|
Dimensions | 6 × 3 × 2 in |
Brand | InVid |
IP Camera Audio Input | Audio Input & Built-in Mic |
IP Camera Audio Output | Audio Output |
IP Camera Type | Bullet |
IP Camera Housing Material | Metal |
IP Camera Megapixels | 4 MP |
IP Camera Weather Rating | Indoor Only |
Specialty Camera Features | True Human Body + Vehicle Detection |
Camera PAR-P4RICS-AI
Image Sensor 1 / 3 "CMOS
Image Size 2592 × 1520
Electronic Shutter 1 / 30 s ~ 1 / 100000 s
Iris Type DC Iris
Min. Illumination Color: 0.0028 lux@F1.2,AGC ON B&W: 0.001 lux@
F1.2,AGC ON
Lens Mount CS
Day & Night ICR
Wide Dynamic Range 120dB
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ /
H.264 / MJPEG
H.264 Compression
Standard Baseline Profile/Main Profile/High Profile
PAR-P4RICS-AI
4 megapixel IP Plug & Play Indoor Box Camera, True AI, CVBS Output,
True WDR, Audio input/Output, Built-in Mic, SD Card Slot, 12VDC/24VAC/
PoE, Facial Rec
Resolution
4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 ×
1296 ),
1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480
× 240
Main Stream
4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz:
1~25fps )
HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz:
1~50fps )
Sub Stream 720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Third Stream D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Bit Rate 64 Kbps ~ 8 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A / U
Image Settings
ROI, Saturation, Brightness, Chroma, Contrast,Wide
Dynamic, Sharpen NR,etc. adjustable through client
software or web browser
ROI Each ROI to be configured separately
Interfaces
Network RJ45
Video Output CVBS output (BNC × 1)
Audio 1CH audio input; 1CH audio output; 1CH built-in MIC
Alarm 2CH alarm input; 2CH alarm output
Storage Built-in micro SD card slot; up to 256GB
Reset Yes
RS 485 Yes
Intelligent Analytics
(Smart Events)
Perimeter Protection Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification)
Target Counting Line crossing human/motor vehicle/non-motor vehicle
counting
Exception Detection Scene change, video blur and video color cast
detection
Face Detection Face detection and face capture
General Intelligence Crowd density detection, heat map, object abandoned/missing detection*
Functions
Remote Monitoring Web browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users;
Support multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP,
FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
Interface Protocol ONVIF
Storage Network remote storage; micro SD card storage
Smart Alarm Motion detection, sensor alarm, SD card error, SD card
full, IP address conflict, cable disconnection
General Function
Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch,
image distortion correction
PoE Yes , IEEE802.3af
Others
Power Supply AC24V/DC12V/PoE
Power Consumption < 11W
Operating Environment -22°F~140°F (- 30 °C ~ 60 °C)
Humidity: less than 95 % (non-condensing)
Dimensions 6 x 3 x 2 in (160.8 × 79 × 64 mm)
Weight ( net ) Approx. 0.5KG
Installation Ceiling mounting; Wall mounting
