Product Description

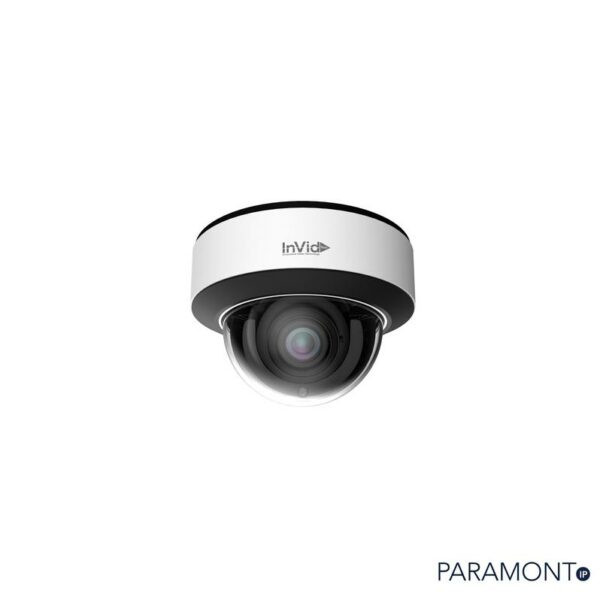

8 Megapixel IP Plug & Play, Outdoor Dome, 164’ IR Range, True AI, Audio Input/Output, PoE/12VDC
Core Features:
- 8 Megapixel Resolution
- Motorized Auto-Focus 2.8-12mm Lens
- True Day/Night with IR Range up to 98-164’
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- Smart H.265/H.265+/H.265/Smart H.264/H.264+/H.264/MJPEG Compression
- 20 FPS Recording and Live
- True WDR 120dB
- Smart Analytics
- CVBS Video Output
- SD Slot for Local Storage: Up to 256GB
- Audio Input: Built-in Mic
- Audio Output
- IP67 Weatherproof
- IK10 Vandal Resistant
- 12VDC/PoE Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
Weight | 1.96 lbs |
---|---|
Dimensions | 8 × 8 × 6 in |
Brand | InVid |
IP Camera Audio Input | Audio Input & Built-in Mic |
IP Camera Audio Output | Audio Output |
IP Camera Type | Dome |
IP Camera Housing Material | Metal |
IP Camera IR Range | 101-200 ft |
IP Camera Light Options | IR |
IP Camera Lens | Motorized Auto-Focus |
IP Camera Megapixels | 8 MP |
IP Camera Weather Rating | IP67 Weatherproof |
Specialty Camera Features | True Human Body + Vehicle Detection |
Camera PAR-P8DRIRA2812-AI
Image Sensor 1 / 2.8" CMOS
Image Size 3840×2160
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Iris Type DC Iris
Min. Illumination 0.01 lux @ F1.2, AGC ON; 0 lux with IR 0.015 lux@F1.4, AGC
ON; 0 lux with IR
Lens 2.8~12mm@F1.4, motorized
Field of View Horizontal: 96°~32°; Vertical:64°~18.4°; Diagonal:
103.8°~36.5°
Lens Mount Φ14
Day&Night ICR
InVid Tech, reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
Wide Dynamic Range 120dB
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~345°; Tilt:0°~77°; Rotation: 0°~345°
Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ /
H.264 / MJPEG
H.264 Compression
Standard Baseline Profile/Main Profile/High Profile
Resolution
8MP ( 3840 × 2160 ), 6MP( 3072 × 2048 ),5MP( 2592 ×
1944), 4MP( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304
× 1296 ),1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF,
480 × 240
Main Stream
60Hz : 8MP/6MP(1~20fps), 5MP/4MP/2K/3MP/1080P/720P
(1~30fps) 50Hz : 8MP/6MP(1~20fps), 5MP/4MP/2K/3MP/1
080P/720P(1~25fps) HFR Mode: 1080P/720P(60Hz: 1~60fps;
50Hz: 1~50fps)
Sub Stream 720P/D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps)
Third Stream D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps)
Bit Rate 64 Kbps ~ 12 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A / U
Image Settings
ROI, Saturation, Brightness, Chroma, Contrast,Wide
Dynamic, Sharpen, NR,etc. adjustable through client
software or web browser
ROI Each ROI to be configured separately
Intelligent Analytics
(Smart Events)
Perimeter Protection Line crossing, region entrance/exiting/intrusion (human/
motor vehicle/ non-motor vehicle classification)
Target Counting Line crossing human/motor vehicle/non-motor vehicle
counting
Exception Detection Scene change, video blur and video color cast detection
Face Detection Face detection and face capture
General Intelligence Crowd density detection, heat map, object abandoned/
missing detection*
Interfaces
Network RJ45
Video Output CVBS output (BNC×1)
Audio 1CH audio input; 1CH audio output; 1CH built-in MIC
Storage Built-in micro SD card slot; up to 256GB
Reset Yes
Alarm 1CH alarm input; 1CH alarm output
Functions
Remote Monitoring Web browsing, CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP,
SNMP, 802.1x, UPnP, HTTPs, QoS
Interface Protocol ONVIF
Storage Network remote storage; micro SD card storage
Smart Alarm Motion detection; sensor alarm, SD card error; SD card
full, IP address conflict, cable disconnection
General Function Watermark, IP address filtering, video mask, heartbeat,
password protection, image distortion correction, etc.
IR Distance 98-164’ (30~50m)
Protection Grade IP 67&IK10
PoE Yes (IEEE802.3af)
Others
Power Supply DC12V/PoE
Power Consumption < 10.5W
Operating Environment -22°F~140°F (- 30 °C ~ 60 °C) Humidity: less than 95 %
(non-condensing)
Dimensions Φ 5.5 x 3.9 in (141 × 100.2 mm)
Weight ( net ) Approx. 1.96lbs (0.89KG)
Installation Ceiling mounting; Wall mounting
