Product Description

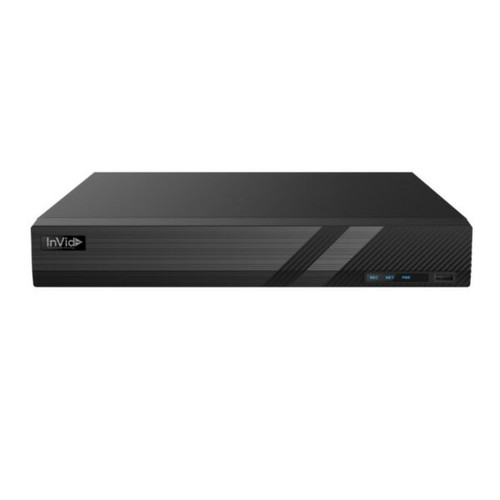

8 Ch + 4 Bonus IP Ch (Up to 12 Cameras Total) Universal Port Recorder, 1 HD Bay
Core Features:
- TVI/AHD/CVI: 5MP/4MP/1080p/720/WD1
- 4 Bonus IP Channels – Up to 5 Megapixel
- Total Max IP Input: 12 (Including Bonus IPC)
- H.264/H.265 Video Compression
- True P2P Connectivity with QR Code Connect
- Simultaneous HDMI/VGA up to 1080p Resolution
- CVBS Main or Spot Monitor
- Supports up to 8 Channel Simultaneous Playback
- 1 Hard Drive Bay
- Free Central Management Software (CMS)
- Free MAC Client
Weight | 10 lbs |
---|---|
Dimensions | 11.80 × 9.80 × 1.70 in |
Brand | InVid |
IP Camera Accessories | NVR |
System PD1B-8NH
OS Embedded Linux
Video
Analog Video Input BNC × 8
BNC interface (1.0Vp-p; 75Ω)
TVI/AHD/CVI : 5MP/4MP/1080P/720P/WD1 (live)
IP Video Input
4CH
Up to 5MP@30fps
Total Input 12CH
Output
HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
BNC × 1 : CVBS ( used as the main or spot output )
Compression H.264/H.265
Multi-screen Display 1 /4/6/8/9/13/16
Audio
Input RCA × 8
Output RCA × 1 (linear, 600Ω)
Two-way audio Take up channel one audio input
Compression G.711(U/A)
Record
Resolution 5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1/D1
Frame Rate Analog Channel: 5MP Lite@10fps (PAL / NTSC)
4MP Lite/1080P@12fps(PAL) / 15fps (NTSC)
1080P Lite/720P/WD1/D1@25fps (PAL) / 30fps (NTSC) IP
Channel: 25fps (PAL) / 30fps (NTSC)
Bit Rate 32Kbps ~ 4Mbps
Mode Manual, timer, motion, smart event
Playback
Playback 8CH
Search Time slice / time / event / tag search
Smart Search
Highlight colors to display the camera record in a
certain period of time, different colors refer to different
record events
Function Play, pause, FF, FB, digital zoom, etc.
Alarm
Mode Manual, motion, exception, smart event
Input 8CH
Output 2CH
Network
Interface RJ 45 100Mbps × 1
Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP,
HTTPs, NTP, SMTP
Incoming Bandwidth 32Mbps
Outgoing Bandwidth 60Mbps
Client Connection Max. 10 users access
MobileDevice
OS iOS, Andriod
Storage
HDD SATA×1, up to 18TB; E-SATA×1 up to 18TB (Record Only)
Backup
Local Backup USB, USB to HDD (Max 1TB)
Network Backup Yes
Port
RS 485 Yes (half-duplex), connect to PTZ or keyboard
USB USB 2.0 × 2
Remote Controller Included
Others
Power Supply DC12V/3A
Consumption ≤ 10W ( without HDD )
Dimensions ( W × D × H ) 11.8 x 9.8 x 1.7 in (300 × 249 × 45mm)
Working Environment 14°F ~ 122°F (-10°C ~ 50°C), 10% ~ 90% (humidity)
Certificate CE, FCC
Environmental Protection Directive EU RoHS, WEEE, REACH
