Product Description

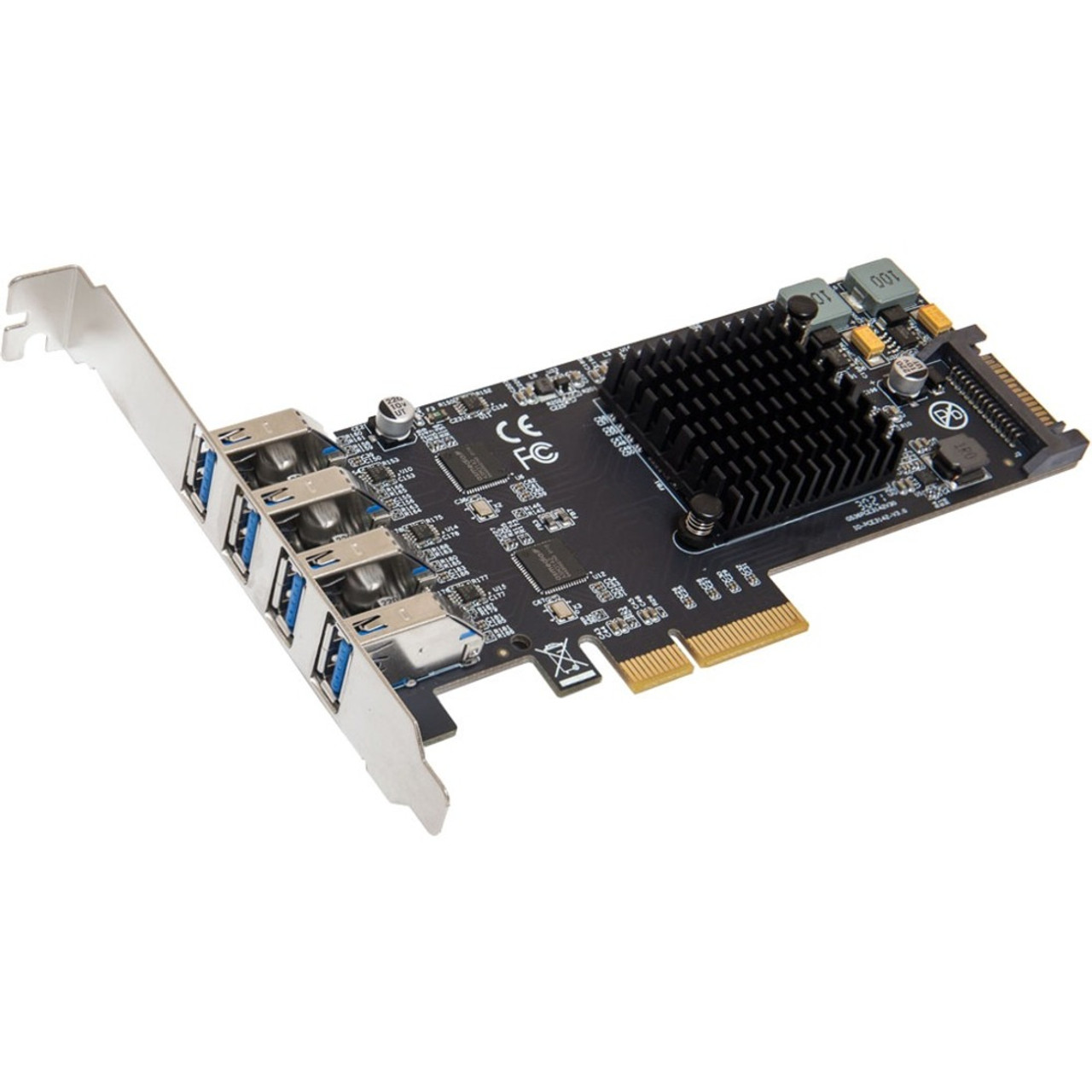

IO Crest USB 3.2 Gen 2 (10 Gbps) 4 Port Type-A PCI-e 3.0 x4 - PCI Express 3.0 x4 - Plug-in Card - 4 USB Port(s) - PC, Mac EACH PORT 10GBPS ASMEDIA3142
The new expansion card adds full support for the new specification on motherboards with a PCIe x4 slot. With the USB Type-A port design and backward compatibility with USB 2.0/3.0/3.1, the new expansion card offers an affordable way for users to upgrade to the USB 3.2 Gen 2 specification without having to get a new motherboard. The new ASM3142 doesn't just deliver the fastest USB 3.1 performance. It also reduces the power consumption by as much as 50%. When compared with a Gen3 x1 connected controller, the AS3142 is able to deliver double the performance.
Features
- Add four USB 3.2 10Gbps ports to your system. Powered by dual ASMedia ASM3142 controllers to provide dedicated 10Gbps USB 3.2 transfer bandwidth for each port through PCIe 3.0 x4 host interface.
- High Powered Ports: Support up to 900mA/5V power on each USB-A port. Built-in over current protection on each USB port
- Independent Power Distribution Switch on each port to provide overcurrent, power glitches, and thermal shutdown protection.
- No driver installation is required on MacOS 10.9 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver doesn't support ASMedia USB 3.1), Win10/8, Server 2012 and later; Linux 2.6.31 and later. Driver download is available for 32/64 bit Windows 7/Vista, and Windows Server 2008/2003.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Package Contents
- USB 3.2 Gen 2 (10 Gbps) 4 Port Type-A PCI-e 3.0 x4
- 1 x Manual
- 1 x Driver CD
Host Interface PCI Express 3.0 x4
Product Type USB Adapter
Manufacturer Part Number SI-PEX20233
Packaged Quantity 1
Platform Supported PC
Platform Supported Mac
Limited Warranty 3 Year
Form Factor Plug-in Card
Manufacturer SYBA Multimedia, Inc
Product Name USB 3.2 Gen 2 (10 Gbps) 4 Port Type-A PCI-e 3.0 x4
Brand Name IO Crest
Total Number of USB Ports 4
Number of USB 3.2 Ports 4
Note Images may not be exact, please check specifications.
