SIIG 1080p HDMI Over IP Extender / Matrix with IR - Kit - 120M - Over IP Networks - Many to Many - Supports HDBit-T - CE-H23A11-S1

Product Description

The product has been discontinued and will not be restocked once sold out.

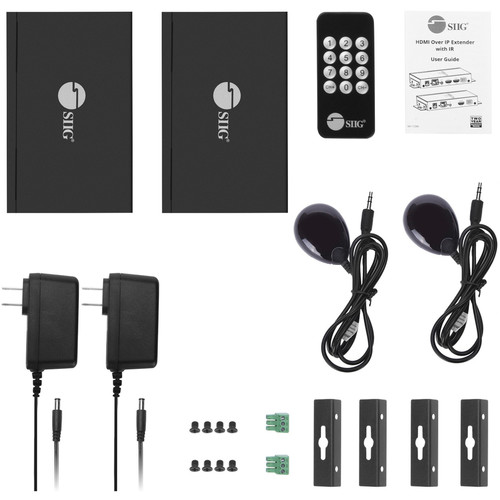

SIIG 1080p HDMI Over IP Extender / Matrix with IR - Kit - 120M - Over IP Networks - Many to Many - Supports HDBit-T

Extends high definition 1080p HDMI signals from a source device to a display device through economical CAT5e/6 cabling up to 120 meters using advanced HDBitT over IP technology

• Extends HDMI signals with stereo audio to a remote display over UTP CAT5e/6 cabling up to 120 meters

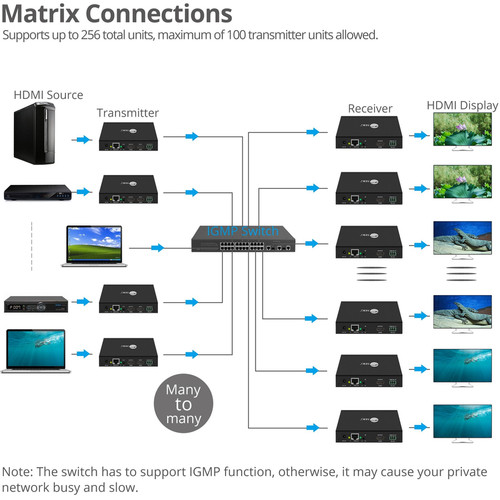

• Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S1) and receiver units (part# CE-H23C11-S1) sold separately
• Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images
• Supports IR pass back function to control the source device from RX location
• Supports computer control software to select and switch between source devices (Matrix only)
• Supports HDbit-T protocol with H.264 compression over IP
• HDMI output on the transmitter allows you to monitor the HDMI signal at the source location
• RS-232 pass-through connection to control RS-232 enabled devices at either direction
