Supermicro C7B360-Cb-Mw Desktop Motherboard - Intel Chipset - Socket H4 Lga-1151 - Micro Atx - 64 Gb Ddr4 Sdram Maximum Ram Dimm, Udimm - 4 X Memory Slots - Gigabit Ethernet - Hdmi - Displayport - 6 X Sata Interfaces - MBD-C7B360-CB-MW-O

SKU # HS-MBD-C7B360-CB-MW-O

Condition # New

Request A Quote

Availability:: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |

One-Click Purchasing

Fast Express Shipping

Safe & Secure Checkout

Purchase Protection

Every Order is Protected By BuySafe

Our commitment to sustainability ensures that every purchase supports responsible operations and a healthier planet.

SSL Secure Payment

We make sure your orders are processed without delay — every purchase is prepared and dispatched the next working day.

Express Shipping

Price Match Guarantee

Your payment is secure

Your privacy and security are our top priority. Our advanced encrypted payment system protects your information during every transaction.

Get expert help

Our team of experienced professionals is always ready to help.

Overview
Shipping
Warranty
FAQ's

Product Details

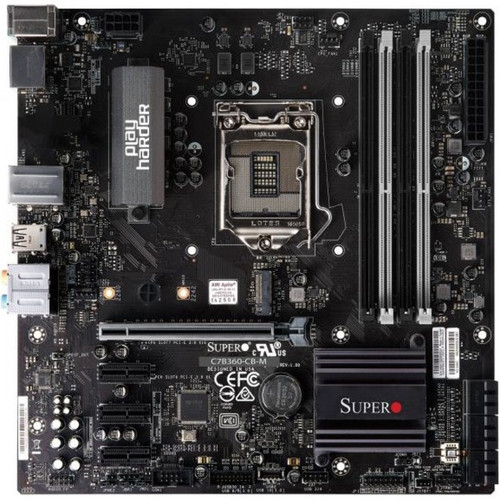

Supermicro C7B360-CB-MW Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - Micro ATX - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces SOCKET-H CFL-S PROCESSOR B360 PC

8th Generation Core™ Processor Based Motherboards

B360/Q370/H310 chipset / Socket H4 Boards

Supermicro 's single processor Socket H4 designs feature the Intel® B360/Q370/H310 chipset which support the Intel® 8th Generation Core™ i7/i5/i3 processor family. With outstanding features that include up to 64GB non-ECC fast DDR4 DRAM in 4 DIMMS, USB 3.0/USB 3.1, PCI-E 3.0 M.2, and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and multiple displays. Designed with performance, reliability, manageability and long life in mind, Supermicro 's single processor motherboards are the perfect solution for a variety of multi-tasking, heavy loading applications.

Technical Specs

I/O Controller

Controller Type

Serial ATA/600

Video

Onboard Video

CPU Dependent Video

Warranty

Limited Warranty

1 Year

Network & Communication

Bluetooth	Yes
Gigabit Ethernet	Yes
Wireless LAN	Yes

Physical Characteristics

Form Factor	Micro ATX
Width	9.6"
Depth	9.6"

I/O Expansions

Number of PCI Express x1 Slots	3
Number of Total Expansion Slots	4
Number of PCI Express x16 Slots	1
Total Number of PCI Express Slots	4

Miscellaneous

Package Contents	C7B360-CB-MW Desktop Motherboard 1 x C.A. SATA 7P TO 7P 500MM 1 x SATA Cable 1 x C7B360-CB-MW Back Plate (I/O Shield) 1 x C7B360-CB-MW Giftbox 1 x Quick Installation Guide 1 x Antenna 1 x C7B360-CB-MW Series Driver CD
Environmentally Friendly	Yes
Environmental Certification	WEEE
Environmental Certification	RoHS

Memory

Maximum Memory	64 GB
Maximum Memory	64 GB
Memory Technology	DDR4 SDRAM
Number of Memory Slots	4
Memory Form Factor	UDIMM
Memory Form Factor	DIMM
Memory Speed Supported	1866 MHz
	1600 MHz
	2666 MHz
	2400 MHz
	2133 MHz
	1866 MHz
	1600 MHz
	2666 MHz
	2400 MHz
	2133 MHz

Onboard Interfaces

Number of SATA Interfaces	6
Total Number of Onboard USB Ports	5
Number of Onboard USB 3.0 Ports	3
Number of M.2 Interfaces	1

Interfaces/Ports

HDMI	Yes
DisplayPort	Yes
Total Number of USB Ports	6
Number of USB 3.0 Ports	1
Number of USB 3.1 Ports	2

Processor & Chipset

Processor Supported	Core i3
	Celeron
	Pentium
	Core i5
	Core i7
Total Processor Supported	1
Processor Socket	Socket H4 LGA-1151
Chipset Manufacturer	Intel

General Information

Product Type	Desktop Motherboard
Manufacturer Part Number	MBD-C7B360-CB-MW-O

Packaged Quantity	1
Manufacturer	Supermicro Computer, Inc
Product Model	C7B360-CB-MW
Product Name	C7B360-CB-MW Desktop Motherboard
Package Type	Retail
Brand Name	Supermicro
