Product Details

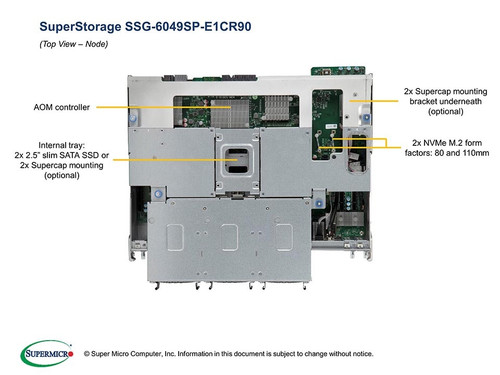

1.Single Node High density 2 rear mirrored
    boot drives 4 NVMe SSD drives for caching
2. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
3. 16 DIMMs up to 4TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM
    Supports Intel® Optane&trade DCPMM

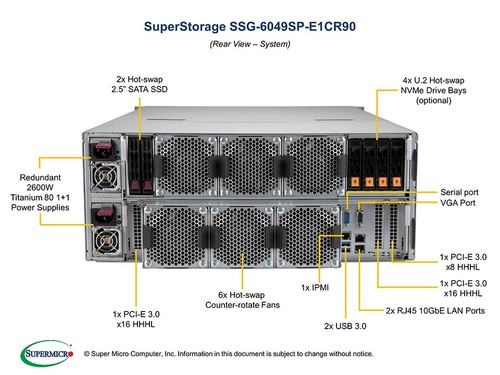

4. 2 PCI-E 3.0 x16 (HHHL)
    1 PCI-E 3.0 x8 (HHHL)

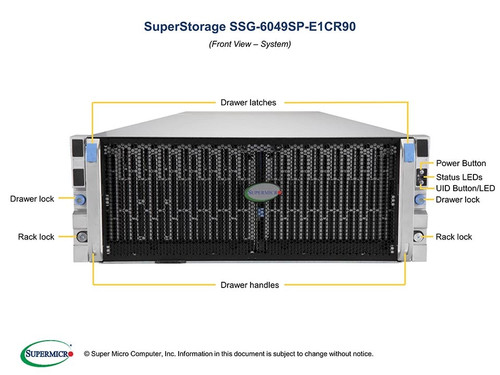

5. 90x 3.5"/2.5" Hot-swap SAS3/SATA3 drives
    2x Fixed slim SATA SSD 2x NVMe
    M.2 (form factor: 2280 and 22110)
6. Dual Broadcom 3616 controllers (IT Mode)
    or Broadcom 3108 (H/W RAID)
7. Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
8. 6x 8cm hot-swap counter-rotate
    redundant PWM cooling fans
9. 2600W Redundant Power Supplies
    Titanium Level (96%)

| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
  Titanium Level|   | |||
| Parts List - (Items Included) | |||
|   | |||
|   | Part Number | Qty | Description |
| Motherboard / Chassis | MBD-X11DSC   CSE-947HTS-R2K63P | 1   1 | Super X11DSC Motherboard   SC947H 90-Bay top load chassis |
| Add-on Card / Module | AOM-947-FAN-1 | 2 | Fan Bridge Board for SC947RoHS |
| Backplane | BPN-ADP-30SAS3-1 | 2 | Adapter board between Expander and HDD BPN for CSE-947HRoHS |
| Backplane | BPN-ADP-947SB | 1 | BPN-ADP-947SBRoHS |
| Backplane | BPN-SAS3-947EB | 4 | HDD Backplane (15-slot) for CSE-947H 60/90-bay top load chassis/server.RoHS |
| Backplane | BPN-SAS3-947EL | 2 | SAS3 expander module for top-load 60/90-bay single/twin/SBB CSE-947 projectRoHS |
| Backplane | BPN-SAS3-947SB | 1 | Midplane for topload CSE-947 60/90-bay SBB/Twin/single-node systemRoHS |
| Drive Tray(s) | MCP-220-94601-0N | 90 | SC946ED 3.5" / 2.5" tool-less HDD tray |
| Cable 1 | CBL-0066 | 1 | 39" 9 PIN COM PORT EXTENSION CABLE |
| Cable 2 | CBL-0082L | 1 | Y SPLIT SATA POWER ADAPTER PB FREE |
| Cable 3 | CBL-0473L | 2 | 21CM 30AWG SATA CBL S-S |
| Cable 4 | CBL-CDAT-0677-20 | 2 | [NR] 2x7F/P2.0 to 2x7F/P2.026AWG20CM |
| Cable 5 | CBL-OTHR-1062-25 | 1 | [NR] CBLVGADP15/F to 2X7F/P2.025CMRoHS |
| Cable 6 | CBL-OTHR-1102 | 1 | [NR] 60-singleSlimlineULP x12 to SlimlineLP x8FFC100 OHM to 2x8PH3.0M to 2x8PH3.0F6A/pin18AWG |
| Cable 7 | CBL-PWEX-1016-3 | 2 | GPU2x4F/CPU to 2x4F/CPUP4.2 20CM16AWGRoHS |
| Cable 8 | CBL-PWEX-1100-25 | 1 | [NR] MicroFit 2x2F/PH3.0 to 1x4F/PH5.0825cm16AWG |
| Rear Window | MCP-220-82616-0N | 1 | 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B/947X) |
| Power Supply | PWS-2K63A-1R | 2 | 2600W Redundant Titanium Power Supply W/PMbus 73.5x40x265mmRoHS/REACH |
| Heatsink / Retention | SNK-P0068PS | 2 | 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
Notes:
| |||
|   | |||
| Optional Parts List | |||
|   | |||
|   | Part Number | Qty | Description |
| NVME kit (Full kit needed) | BPN-NVMe4-228N-S4   MCP-220-00178-0B  CBL-PWEX-1093-26  CBL-SAST-1049 | 1   4  1  2 | 2U 4-Slot SFF BPN supports 4x NVMe Storage Devices   2.5 thin profile drive tray Orange tab (for hotswap NVMe drive) for SC119UH  [NR]MicroFit2x2 PH3.0F to MicroFit2x2PH3.0F26CM10A/p  [NR] SLIMLINE SAS (LE) to SLIMLINE SAS INT 30.2CM85 OHMR |
| Global Services & Support | OS4HR3/2/1   OSNBD3/2/1 | -   - | 3/2/1-year onsite 24x7x4 service   3/2/1-year onsite NBD service |
| Software | SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
|   | |||
| SAS Controllers (choose one of the following) | |||
|   | |||
|   | Part Number | Qty | Description |
| Add-on Module 3616 (IT mode) | AOM-S3616-S-O | 1 | Storage 3616 controller for serviceable 60/90 bay systems. This has two 3616 controller chips PCI switch 2x NVMe M.2 (Form factors: 2280 and 22110) RoHS |
| Add-on Card 3108 (HW RAID) (occupies PCI-E slots 1 and 2) | AOC-S3108L-H8iR     AOM-SADPT-S    CBL-SAST-1229-100    BTR-TFM8G-LSICVM02 (optional) | 2     1    2    2 | LSI 3108 based SAS3 RAID 12Gb 8 internal ports 240HDD - RAID 0 1 10 5 6 50 60 Gen3 x8 Standard Low Profile   Bypass card with PCI switch 2x NVMe M.2 (Form factors: 2280 and 22110) and 2x slimSAS x8 HD connectors RoHSSlimline x8 (STR) to 2x MiniSAS HD x4 (STR)25CM100 OHM  Supercap/TFM Unit for cached data protection |
