Product Description
Tangent P13, 13" Industrial Tablet, PCAP Touch Wide Input Power, Fanless, POE powered, battery-operated, Intel Celeron J1900, Quad-Core, 2MB Cache, 2.0GHz
Features
• Intel Celeron Bay Trail J1900 SoC Processor
• Fanless Design
• Ultra Slim (19mm)
• Full HD LCD Display
• Wide Power Input (12-19VDC)
• POE Powered, Supports 802.3at (POE+)
• Optional LI-ion Battery for up to 6 hours of uninterrupted power
• Low Power Consumption
PCAP Multi-Touch
Use with advanced applications.
Wide Input Power
Plug into voltages ranging 12-19 VDC.
Fanless
Extreme reliability, noise-free operation.

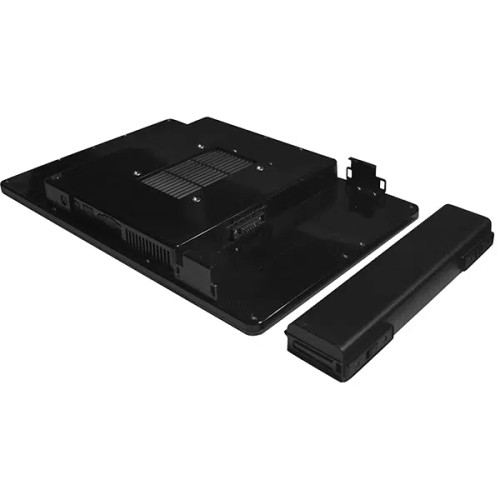

Battery
Removable battery, 6 hours runtime.

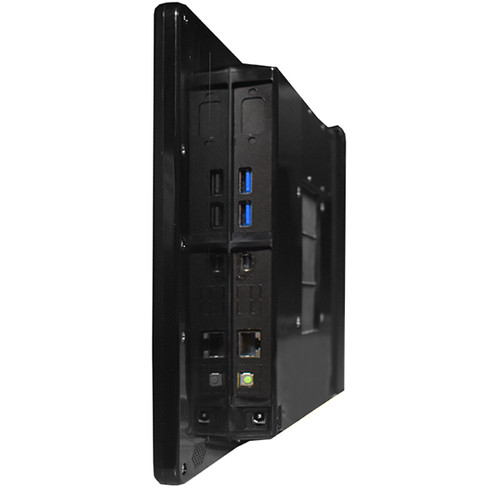

VESA
Mount anywhere, flexible install.
Industrial Tablet PC
Tangent Industrial Tablet PC designed to operate under harsh environments.
Rugged Design
Designed to withstand shock and vibration.
Fanless Operation
Low-maintenance fanless operation for use in dusty, industrial environments.
Multi-Touch Interface
PCAP Multi-touch offers flexibility to use with advanced applications.
Mission Critical Medical Grade Computers for Healthcare
Medical grade computers or medical PCs are specifically designed for healthcare environments. To safeguard clinicians and for patient safety, a medical PC must be UL/IEC60601-1 certified to be considered medical grade. IEC 60601-1 Certification is granted when a medical electrical device undergoes testing for safety and performance compliance. Certification helps to guarantee reliability and ensure the medical device won't cause harm to staff or patients. 60601-1 certified medical grade PCs offered by Tangent have passed rigorous standards to obtain this certification.
Tangent is a leading provider of cutting-edge medical computers designed for the healthcare industry. 15-inch to 24-inch all-in-one medical grade computers designed for arm mounting, wall mounting, medical stations, or cart installations can be used in a variety of healthcare environments. No matter where you need a mission critical computer, you can find the ideal medical grade all-in-one computer in Tangent’s product line for healthcare.
Tangent's medical grade computers are designed with antimicrobial enclosures. The antimicrobial agent in our medical computers is a necessary component of computers specifically manufactured to address patient and medical staff safety. Antimicrobial medical grade computers help to prevent hazardous surface contamination and promote infection control.
Medical Computer Features to Benefit the Healthcare Industry
Additional features vary by Medical PC model, and can include:
Ingress protection and can be sprayed and wiped clean without damaging the internal components of the computer.
Battery operation- Tangent is the first computer manufacturer to introduce a medical grade computer operated by hot-swappable batteries to the healthcare industry. This feature is poised to serve the unique need of the healthcare industry for medical cart device integration.
Tangent medical grade computers are backed by knowledgeable, talented US-based Technical Support and up to 3-year product warranties. Our medical computers are fully-customizable for healthcare application needs.
SPECIFICATIONS
Display | |
---|---|
LCD Size | 13.3" (16:9) |
Max. Resolution | 1920 x 1080 (WUXGA) |
Brightness (cd/m2 ) | 300 cd/m2 |
LCD Color | 16.7M |
Touch | |
Touch Screen | Projected Capacitive w/10 points |
System | |
Processor | Intel Celeron J1900, Quad-Core, 2MB Cache, 2.0GHz |
System Chipset | Bay Trail SoC integrated |
Graphics Controller | Intel HD Graphics |
LAN Chipset | 1x GbE: Realtek RTL8111 w/POE |
Audio | Realtek ALC283 |
System Memory | Up to 8GB DDR3L 1333Mhz (1x SO-DIMM) |
BIOS | Phoenix 64Mbit |
TPM | TPM 1.2 (Optional) |
Storage | |
SSD/HDD | 1x 2.5" SATA Bay (Optional 7mm drive only) |
M.2 SATA | 1x M.2 2242 "B" Key For SATA SSD |
Expansion | |
Mini PCI Express | 2x Mini PCIe Half Length (for WiFI & POE) |
M.2 | 1x M.2 2242 "B" Key For SATA SSD |
Other Features | |
Cooling Method | Fanless |
Internal Speaker | 2x 1W Speakers |
WebCam | 1x 2Mpixel Camera (Optional) |
I/O | |
Video | 1x Mini Display Port (Side) (Optional) |
USB | 2x USB 3.0 (Side) |
LAN | 1x GbE RJ45 w/POE (Side) |
WLAN | 802.11 AC + BT 4.2 LE (Intel) |
Audio | 1x Line-In/Line-Out |
Others | 1 x Power Switch |
Operating System | |
Windows | Windows 7 Pro 32/64bit Windows 10 Pro 64bit |
Linux | Ubuntu 14.10 |
Power | |
Power Mode | AC Adapter or POE |
Power Input Voltage | 12 ~ 19 VDC |
POE | 25W (802.3at, PoE+) or 50W (UPoE) from CAT-5e cables |
Power Connector | Barrel Plug for adapter / RJ45 CAT 5e cable for POE |
Battery | 1x Li-Ion 7.2VDC @ 9750mAh - 70.2W (Optional) |
Power Adapter | External Power Adapter, 19VDC @ 3.42A |
Environment | |
Certification | CE, FCC Class A |
Physical | |
Enclosure Materials | ABS plastic |
Dimension (WxHxD) | 12.9" x 8.9" x 1.3" (328 x 228 x 32.8 mm) |
Weight | 3.75lb. (1.7Kg) |
Mounting | VESA 75, Optional Stand |
Warranty | |
Warranty | 1-Year Standard |
