Product Details

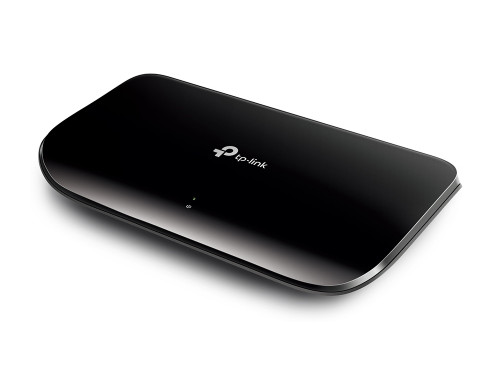

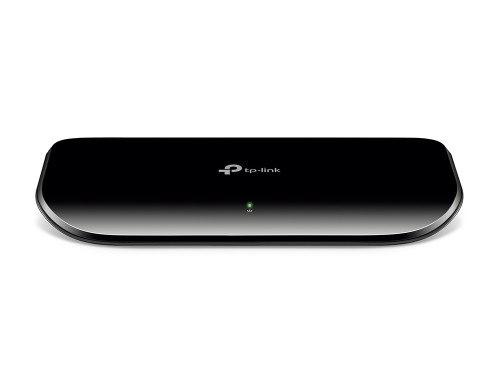

TP-Link 8-Port Gigabit Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 V. Power connector: DC-in jack. Wall mountable
The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80%* of the power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use.
Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Documents
Specifications
| General | |
|---|---|
| Brand | TP-Link |
| Manufacturer part number | TL-SG1008D |
| HSSL part number | HS-TPL-TL-SG1008D |
| UPC / GTIN | 6935364092320 |
| Product type | Network Switches |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,480,800,1000 Mbit/s |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet forwarding rate (1 Gbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 1488000 pps |
| Packet buffer memory | 2 MB |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Yes |
| Wall mountable | Yes |
| Performance | |
| Maximum cable length | 100 m |
| Fanless | Yes |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 9 V |
| Input current | 0.6 A |
| Power consumption (typical) | 4.63 W |
| Power consumption (max) | 3.53 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 15.8 BTU/h |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 90 mm |
| Height | 25.5 mm |
| Packaging content | |
| Cables included | AC |
| User guide | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certification | CE, FCC, RoHS |
Specifications are supplied by the manufacturer via Open Icecat and may change without notice. HSSL part number HS-TPL-TL-SG1008D.
Additional information
TP-Link TL-SG1008D - 8 Port Gigabit Ethernet Network Switch - Plug and Play - Desktop or Wall-Mount - Plastic Case Ethernet Splitter - Fanless - Traffic Optimization - Unmanaged 8/10/100/1000M RJ45
The TL-SG1008D 8-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality.
- PLUG-AND-PLAY - Easy setup with no configuration or no software needed.
- ETHERNET SPLITTER - Connectivity to your router or modem router for additional wired connections (laptop, gaming console, printer, etc).
- 8 Ports Gigabit ETHERNET - 8 10/100/1000 Mbps Gigabit auto-negotiation RJ45 ports greatly expand network capacity.
- COST EFFECTIVE - Fanless Quiet Design, Desktop design.
- RELIABLE - IEEE 802.3x flow control provides reliable data transfer.
- UP to 80% Power Saving - Automatically adjusts power consumption according to the link status and cable length.
- AUTO-NEGOTIATION - Supports Auto-MDI/MDIX, eliminating the need for crossover cables.
| Manageable | No |
| Layer Supported | 2 |
| Power Source | Power Adapter |
| Power Consumption | 4.60 W |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | TL-SG1008D |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Manufacturer | TP-Link Technologies Co., Ltd |
| Product Model | TL-SG1008D |
| Product Name | TL-SG1008D 8-port Unmanaged Gigabit Switch |
| Brand Name | TP-Link |
| Additional Information | Transfer Method:
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Number of Network (RJ-45) Ports | 8 |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Form Factor | Desktop |
| Wall Mountable | |
| Height | 1" |
| Width | 7.1" |
| Depth | 3.5" |
