Product Description

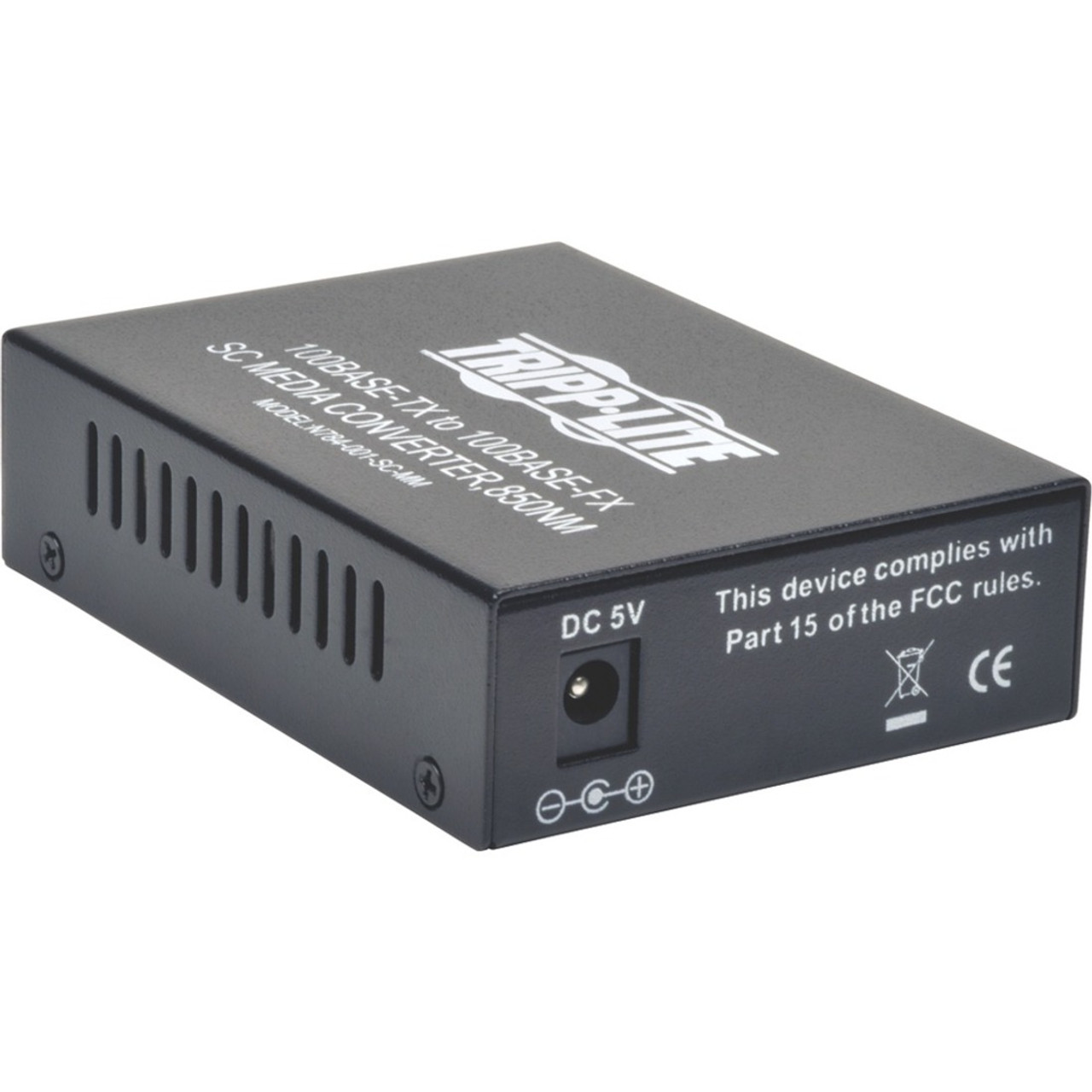

Tripp Lite 10/100 UTP to Multimode Fiber Media Converter RJ45 / SC 550M 850nm - 1 x Network (RJ-45) - 10/100Base-TX, 100Base-FX - Desktop 10/100 RJ45 SC 550M 850NM
Tripp Lite's N784-001-SC-MM 10/100 to Multimode Media Converter ( RJ45 to SC ) is an economical way to extend the distance of network nodes up to 550 Meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.Features
- Extends a 100Mb Ethernet signal up to 550M over Multimode Fiber Optic Cable
- Auto detects Full/Half Duplex Transfer Mode
- Supports Multimode 50/125 cable up to 2KM or 62.5/125 cable up to 550M
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Package Contents
- 10/100 SC Multimode Media Converter, 550M, 850nm
- AC Power Adapter
- User Manual
Product Type Transceiver/Media Converter
Manufacturer Part Number N784-001-SC-MM
Maximum Distance Supported 1804.46 ft
Limited Warranty 2 Year
Weight (Approximate) 1 lb
Form Factor Desktop
Manufacturer Tripp Lite by Eaton
Product Model N784-001-SC-MM
Product Name 10/100 SC Multimode Media Converter, 550M, 850nm
Network Technology 10/100Base-TX
Network Technology 100Base-FX
Brand Name Tripp Lite
Country of Origin China
Height 1"
Width 4.7"
Depth 2.8"
Environmentally Friendly Yes
Environmental Certification WEEE
Ethernet Technology Fast Ethernet
USB No
DVI No
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Management Port No
Number of SC Ports 1
Media Type Supported Optical Fiber
Media Type Supported Twisted Pair
Fiber Mode Supported Multi-mode
Total Number of Ports 2
Fiber Optic Wavelength 850 nm
Note Images may not be exact, please check specifications.
