Product Description

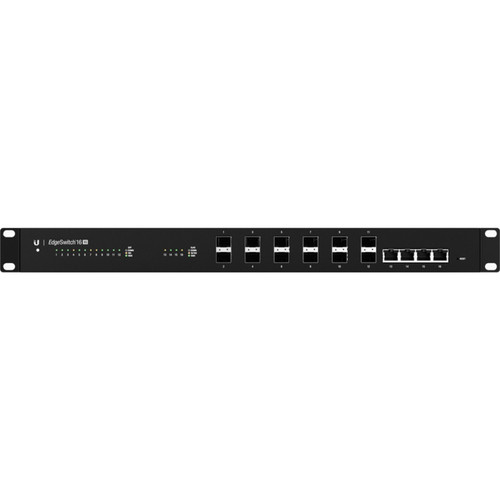

Ubiquiti 10G 16-Port Managed Aggregation Switch - 4 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-X, 10GBase-T - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable, Standalone - 1 Year Limited Warranty
Advanced Switching Technology for the MassesBuild and expand your network with Ubiquiti Networks® EdgeSwitch™ XG, part of the EdgeMAX® line of products. The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services togrowing networks.
The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Switching Performance
The EdgeSwitch XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, the EdgeSwitch XG supports up to 160 Gbps.
10G High-Capacity Links
The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.
Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.
For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.
Powerful Functionality
The EdgeSwitch XG uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:
- MSTP/RSTP/STP
- VLAN, Private VLAN, Voice VLAN
- Link Aggregation
- DHCP Snooping, IGMP Snooping
- TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
- DiffServ, CoS
- Static Routing, Policy-Based Routing
- DHCP Server Functionality
Features
- Non-Blocking Throughput Switching
- Maximum Performance and Low Latency
- 10G Ethernet SFP+ and RJ45 Ports
Technical Specs
Management & Protocols
Manageable | Yes |
Network & Communication
Layer Supported | 3 |
Power Description
Power Source | Power Supply |
AC Adapter | |
Redundant Power Supply Supported | Yes |
I/O Expansions
Expansion Slot Type | SFP+ |
Number of Total Expansion Slots | 12 |
Number of SFP+ Slots | 12 |
Shared SFP Slot | No |
Miscellaneous
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
WEEE |
Physical Characteristics
Weight (Approximate) | 5.78 lb |
Form Factor | Standalone |
Rack-mountable | |
Height | 1.7" |
Width | 17.4" |
Depth | 8.7" |
Compatible Rack Unit | 1U |
Media & Performance
Network Technology | 10GBase-X |
10GBase-T | |
Ethernet Technology | 10 Gigabit Ethernet |
Media Type Supported | Optical Fiber |
Twisted Pair |
Interfaces/Ports
Modular | Yes |
Uplink Port | No |
Stack Port | No |
Total Number of Network Ports | 4 |
Port/Expansion Slot Details | 12 x 10 Gigabit Ethernet Expansion Slot |
4 x 10 Gigabit Ethernet Network |
General Information
Product Type | Ethernet Switch |
Manufacturer Part Number | ES-16-XG |
Manufacturer Website Address | http://www.ubnt.com |
Manufacturer | Ubiquiti Networks, Inc |
Product Model | ES-16-XG |
Product Name | 10G 16-Port Managed Aggregation Switch |
Product Line | EdgeSwitch |
Brand Name | Ubiquiti |
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Product Type Ethernet Switch
Manufacturer Part Number ES-16-XG
Power Source Power Supply
Power Source AC Adapter
Limited Warranty 1 Year
Layer Supported 3
Weight (Approximate) 5.78 lb
Form Factor Rack-mountable
Form Factor Standalone
Manufacturer Ubiquiti Networks, Inc
Product Model ES-16-XG
Product Name 10G 16-Port Managed Aggregation Switch
Network Technology 10GBase-X
Network Technology 10GBase-T
Product Line EdgeSwitch
Brand Name Ubiquiti
Expansion Slot Type SFP+
Country of Origin China
Height 1.7"
Width 17.4"
Depth 8.7"
Manageable Yes
Environmentally Friendly Yes
Environmental Certification RoHS
Environmental Certification WEEE
Compatible Rack Unit 1U
Ethernet Technology 10 Gigabit Ethernet
Number of Total Expansion Slots 12
Number of SFP+ Slots 12
Modular Yes
Uplink Port No
Stack Port No
Media Type Supported Twisted Pair
Media Type Supported Optical Fiber
Total Number of Network Ports 4
Shared SFP Slot No
Port/Expansion Slot Details 12 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details 4 x 10 Gigabit Ethernet Network
Redundant Power Supply Supported Yes
