Product Description

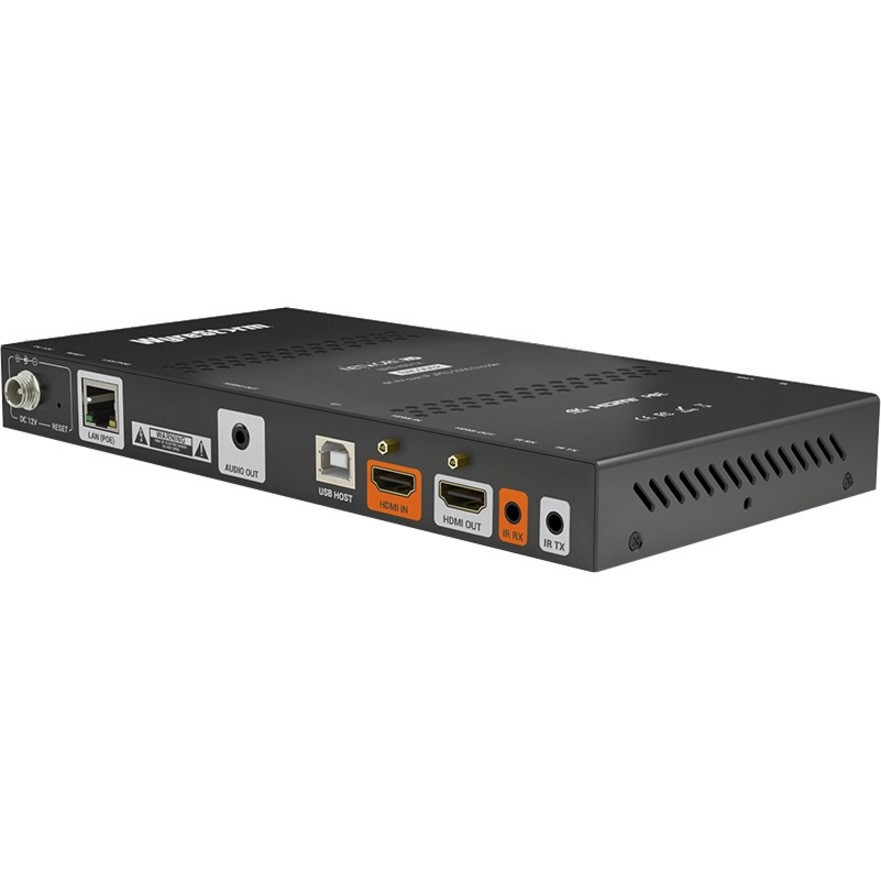

WyreStorm NetworkHD NHD-400-TX Video Encoding - Functions: Video Encoding - 3840 x 2160 - Network (RJ-45) - Audio Line Out - 1 Pack - Rack-mountable, Wall Mountable
As part of the new WyreStorm NetworkHD 400 Series, the NHD-400-TX streaming encoder offers stunning 4K HDR video, multi-channel audio support and 4K/2K auto-scaling to seamlessly handle mixed resolution sources, content and display devices for matrix and video wall functionality when used in conjunction with a 400 Series decoder.
Featuring incredibly low latency, the 400 Series is the ideal AV over IP solution for systems where high quality and low latency are key requirements, making it perfect for both residential and commercial applications.
Features
- Stunning visually lossless 4K UHD video with HDR over 1GbE / IP networks
- Ultra-low end-to-end latency - only a single video frame (16ms at 60fps)
- Multi-channel audio including DTS:X & Dolby ATMOS
- Image scaling - use a mix of 4K & 1080p displays throughout an installation
- Easy network set-up using standard Layer 2 or Layer 3 managed switches
- Hugely scalable I/O, utilizing multicast technology
- Live video unicast preview streams for use with NetworkHD Touch or a custom control UI
- Powerful audio matrix functionality - route audio separately from video to any decoder
- CEC One-Touch Play & Standby, bidirectional IR or RS-232 control of connected devices
- Up to 16x16 video walls with image scaling, bezel compensation and rotation
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Package Contents
- NetworkHD NHD-400-TX Video Encoding
- 1 x 12V DC 1A Power Supply (US/UK/EU)
- 2 x Mounting Brackets
- 1 x IR Emitter
- 1 x IR Receiver
- 1 x Quick Start Guide
Product Type Video Encoder
Manufacturer Part Number NHD-400-TX
Packaged Quantity 1
Weight (Approximate) 1.65 lb
Form Factor Rack-mountable
Form Factor Wall Mountable
Functions Video Encoding
Manufacturer WyreStorm
Product Model NHD-400-TX
Product Name NetworkHD NHD-400-TX Video Encoding
Product Line NetworkHD
Product Series 400
Maximum Resolution 3840 x 2160
Brand Name WyreStorm
Country of Origin China
Height 8.7"
Width 5.1"
Depth 1"
Environmentally Friendly Yes
Environmental Certification RoHS
HDMI Yes
Network (RJ-45) Yes
Audio Line Out Yes
Note Images may not be exact, please check specifications.
