Product Description

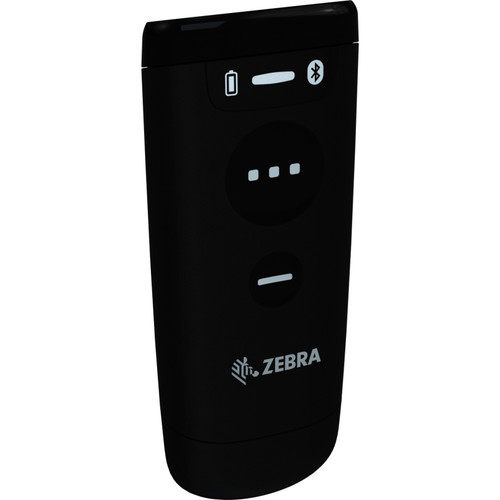

Zebra CS60 Barcode Scanner Kit - Wireless Connectivity - 26" Scan Distance - 1D, 2D - Imager - Area - Bluetooth - USB - Midnight Black - IP65 - USB - Retail, Hospitality, Transportation, Logistics, Manufacturing, Merchandising, Inventory, Route Accounting, Asset TrackingOther Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Application/Usage Retail
Application/Usage Hospitality
Application/Usage Transportation
Application/Usage Logistics
Application/Usage Manufacturing
Application/Usage Merchandising
Application/Usage Inventory
Application/Usage Route Accounting
Application/Usage Asset Tracking
Battery Chemistry Lithium Polymer (Li-Polymer)
Host Interface USB
Product Type Barcode Scanner Kit
Manufacturer Part Number CS6080SR40000TSVW
Weight (Approximate) 2.90 oz
Connectivity Technology Wireless
Durability Spill Resistant
Durability Water Resistant
Durability Water Proof
Features Beep
Features Notification LED
Features NFC Reader
Features Data Formatter
Features Diagnostic Reporting
Form Factor Handheld
Input Current 400 mA
Manufacturer Zebra Technologies Corporation
Product Model CS60
Product Name CS60 Barcode Scanner Kit
Brand Name Zebra
Scanning Distance 26"
Height 0.9"
Width 1.8"
Depth 4.3"
Battery Capacity 735 mAh
Bluetooth Yes
Maximum Battery Run Time 18 Hour
Scanner Range Standard Range
Drop Specification
Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Scan Pattern Area
Image Sensor Type Imager
Illumination Type LED
Standby Current 90 mA
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Product Color Midnight Black
Color Family Black
Illumination Color White
Ingress Protection (IP) Rating IP65
Cable Type Included USB
Scanning Capability 1D
Scanning Capability 2D
Field of View (Horizontal) 45°
Field of View (Vertical) 34°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Motion Tolerance 20 in/s
Maximum Ambient Light 108000 lux
Minimum Print Contrast 20%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 20 mil
Minimum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 6.7 mil
Air Electrostatic Discharge (+/-) 15kV
Contact Electrostatic Discharge (+/-) 8kV
Operating Temperature 32°F (0°C) to 122°F (50°C)
Image Sensor Resolution 1280 x 960
Humidity (Non-condensing) 5% to 95%
Note Images may not be exact, please check specifications.
