Product Description

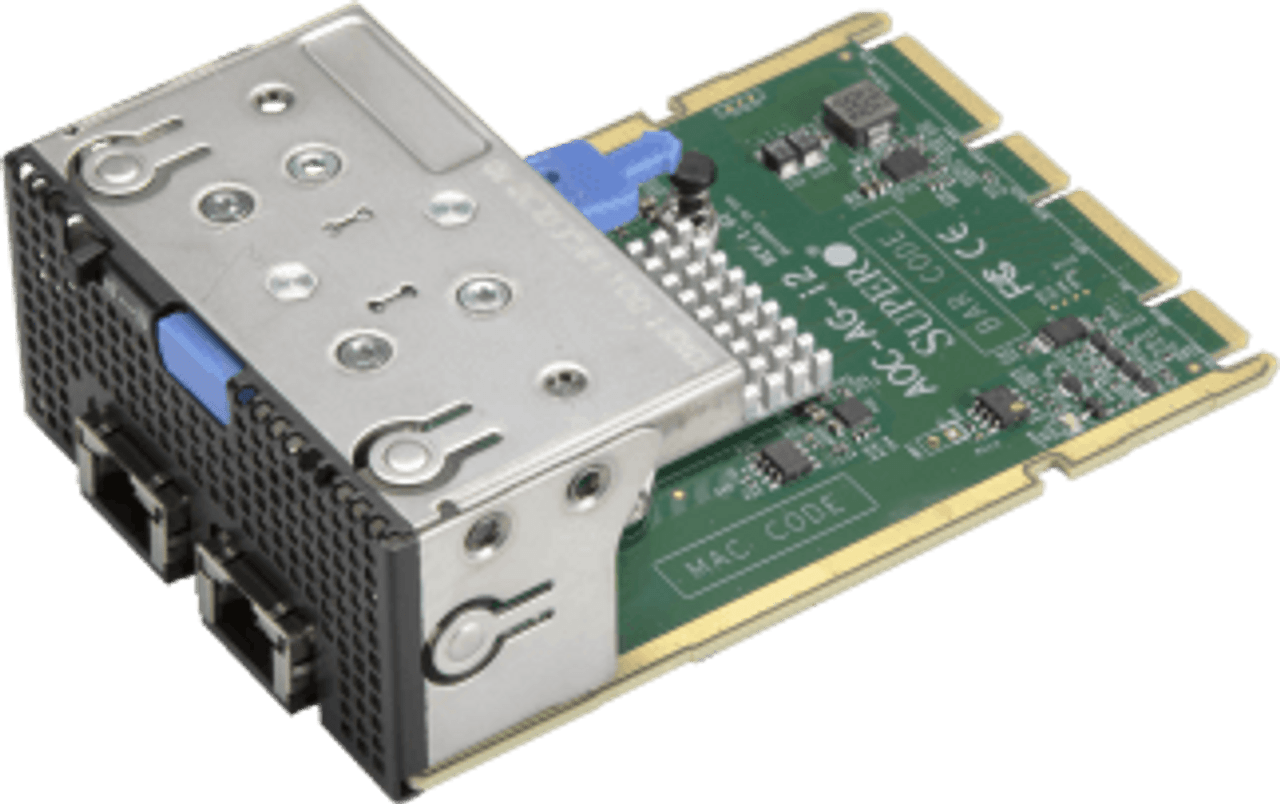

Advanced I/O Module (AIOM) Gigabit Ethernet Adapters
The Supermicro ® Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The GbE adapter AOC-AG-i2(M) is the most flexible and scalable GbE solution providing 2 RJ45 ports. Based on Intel® network controller i350, and with performance-enhancing features, power management technologies, the AOC-AG-i2(M) provides a quality networking choice for datacenters while reducing CPU utilization and power consumption. With the added NC-SI feature, this adapter also functions as a secure networking port for server remote management.
The Supermicro ® Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The GbE adapter AOC-AG-i2(M) is the most flexible and scalable GbE solution providing 2 RJ45 ports. Based on Intel® network controller i350, and with performance-enhancing features, power management technologies, the AOC-AG-i2(M) provides a quality networking choice for datacenters while reducing CPU utilization and power consumption. With the added NC-SI feature, this adapter also functions as a secure networking port for server remote management.
Key Features
- Advanced I/O Module (AIOM) Form Factor
- 2x 1Gbps ports with RJ45 Connectors
- Intel® i350 GbE controller
- Energy Efficient Ethernet (EEE)
- Reliable and proven Gigabit Ethernet technology
- Asset Management Features with thermal sensor
- NC-SI for Remote Management
Technical Specs
- General:
- Advanced I/O Module (AIOM) Form Factor
- Intel® i350 GbE Controller
- 2x 1Gbps ports: 2x RJ45 Connectors
- Networking Features
- IEEE 802.3 auto-negotiation for speed, duplex, and flow control
- IEEE 802.3x and 802.3z compliant flow control support
- Automatic cross-over detection function (MDI/MDI-X)
- 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant
- Virtualization Features:
- PC-SIG SR-IOV support
- VM to VM Packet forwarding (Packet Loopback)
- Flexible Port Partitioning
- IEEE 802.1q VLAN support
- IEEE 802.1q advanced packet filtering
- Jumbo Frames support
- Power Management and Efficiency:
- Energy Efficient Ethernet (EEE)
- DMA Coalescing reduces platform power consumption
- PCI Express Active State Power Management (ASPM)
- LAN disable function
- Low Power Link Up – Link Speed Control
- Performance Features:
- TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage
- Low Latency Interrupts
- Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage
- Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments
- Intelligent interrupt generation
- Management Features:
- Preboot eXecution Environment (PXE) support
- iSCSI Remote Boot Support
- Asset Management support on Supermicro ® platforms
- NC-SI for remote management
- OS Support:
- Windows® Server
- RedHat Linux
- SUSE Linux
- FreeBSD
- UEFI
- VMWare
- Power Consumption (Max):
- AOC-AG-i2(M): 3.7W
- Operating Conditions:
- Storage temperature: -40°C to 70°C (-40°F to 158°F)
- Storage humidity: 90% non-condensing relative humidity at 35°C
- Physical Dimensions:
- PCB dimensions: 76mm x 115mm (W x D)
Please note that this product is sold only as part of an integrated solution with Supermicro server systems.
