Product Description

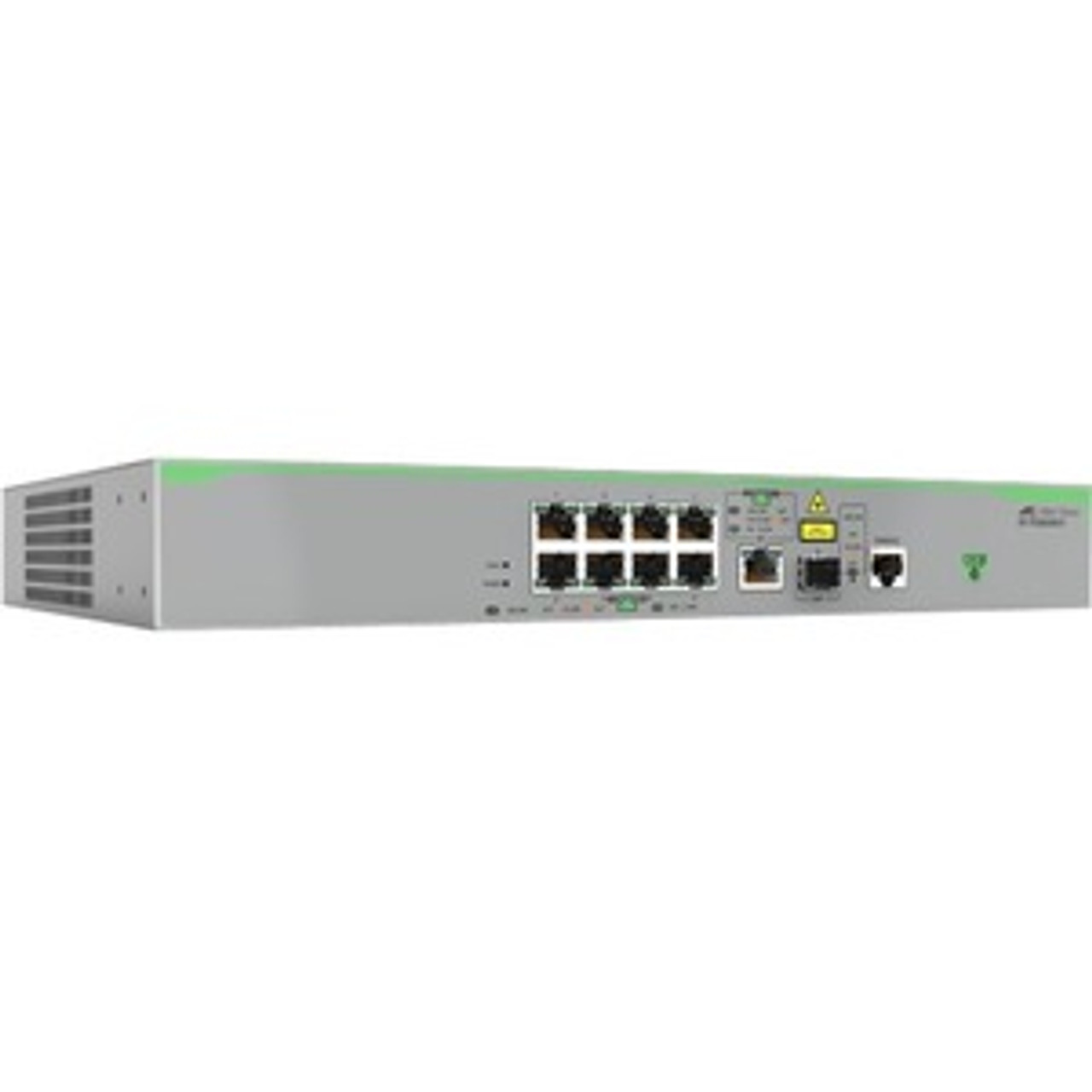

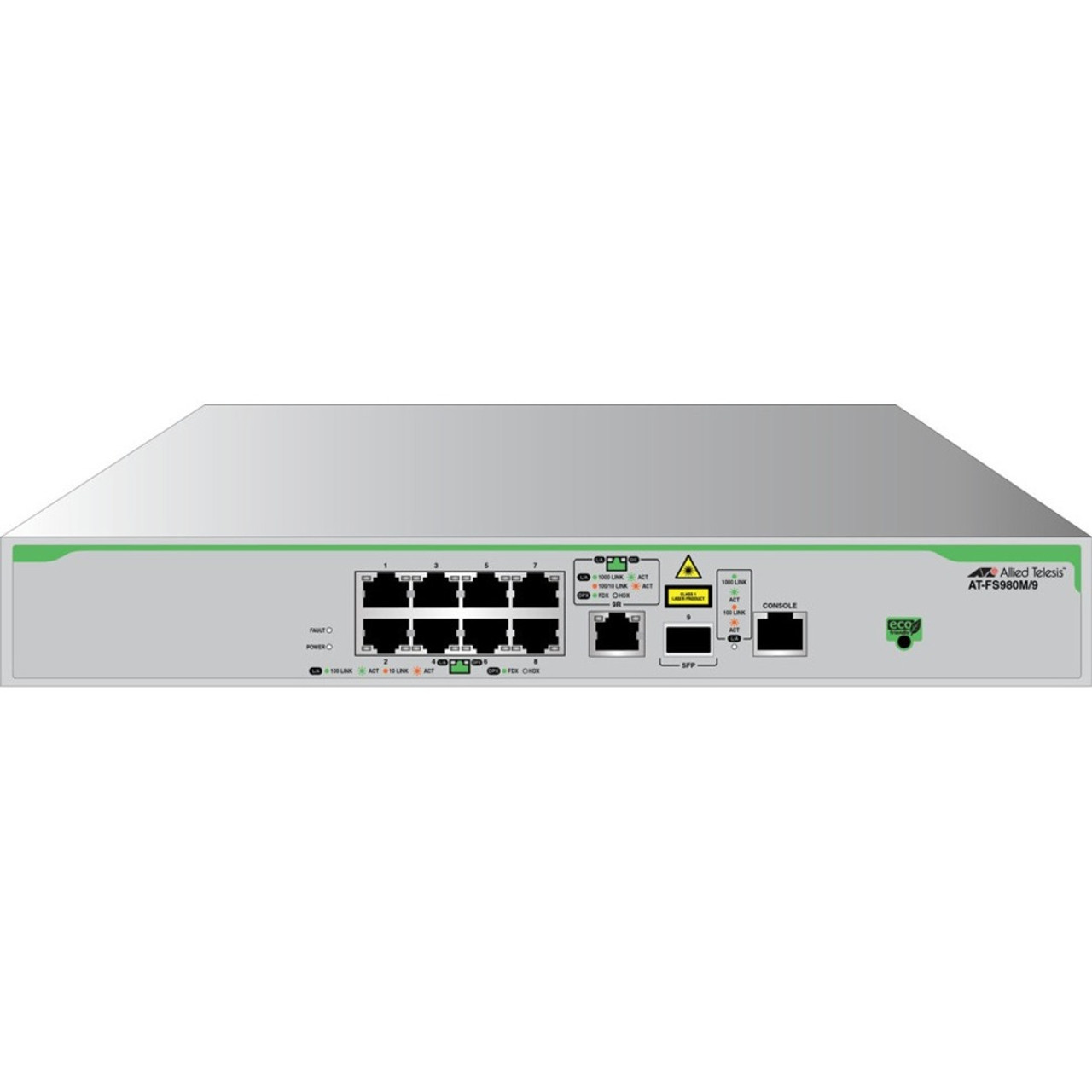

Allied Telesis CentreCOM FS980M/9 Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 3 Layer Supported - Modular - 1 SFP Slots - 6.30 W Power Consumption - Optical Fiber, Twisted Pair - 1U High - Wall Mountable, Rack-mountable
Allied Telesis CentreCOM FS980M switches feature centralized network management via Allied Telesis Autonomous Management Framework™ (AMF), and a redundant system with Virtual Chassis Stacking (VCStack™). These high-performing switches deliver flexible uplink connectivity and lower management costs.
Overview
FS980M switches provide high-performance Fast Ethernet connectivity right where you need it-at the network edge. Flexible and robust, the FS980M series provide total security and management features for enterprises of all sizes. They also support video surveillance and Point of Sale (POS) applications.
Reduce network running costs by automating and simplifying many dayto-day tasks-an FS980M is the ideal AMF edge switch when an AMF Master switch is available in the network.
With both copper and Power over Ethernet (PoE) models, the FS980M Series has the ideal solution for your network. All models are available with 8, 16, 24 and 48 × 10/100TX Fast Ethernet ports. PoE models support the IEEE 802.3at (PoE+) standard, delivering up to 30 Watts of power per port for video surveillance and security applications. The dual power supply model provides system and PoE redundancy to maximize network and end-point uptime.
Key Features | Allied Telesis Autonomous Management Framework™(AMF)
Overview
FS980M switches provide high-performance Fast Ethernet connectivity right where you need it-at the network edge. Flexible and robust, the FS980M series provide total security and management features for enterprises of all sizes. They also support video surveillance and Point of Sale (POS) applications.
Reduce network running costs by automating and simplifying many dayto-day tasks-an FS980M is the ideal AMF edge switch when an AMF Master switch is available in the network.
With both copper and Power over Ethernet (PoE) models, the FS980M Series has the ideal solution for your network. All models are available with 8, 16, 24 and 48 × 10/100TX Fast Ethernet ports. PoE models support the IEEE 802.3at (PoE+) standard, delivering up to 30 Watts of power per port for video surveillance and security applications. The dual power supply model provides system and PoE redundancy to maximize network and end-point uptime.
Key Features | Allied Telesis Autonomous Management Framework™(AMF)
- AMF is a sophisticated suite of management tools that provides a simplified approach to network management. Common tasks are automated, or made so simple, that your network can run without the need for highly-trained and expensive network engineers. Powerful features like centralized management, auto-backup, autoupgrade, auto-provisioning and auto-recovery enable Plug-and-Play networking and zero-touch management.
- AMF secure mode increases network security with management traffic encryption, authorization, and monitoring.
- The FS980M can function as an AMF edge switch when an AMF Master switch is available in the network.
- Ethernet Protection Switched Ring (EPSRing) allows several FS980M switches to join a protected ring, capable of recovery within as little as 50ms. This feature is perfect for high availability in enterprise networks.
- The FS980M Series provides static IPv4 routing at the edge of the network, as well as support for RIPv1 and RIPv2.
- FS980M/28, FS980M/28PS, FS980M/52, FS980M/52PS , FS980M/28DP models.
- Create a VCStack of up to four units with 2 Gbps of stacking bandwidth per each unit. VCStack provides a highly-available system in which network resources are spread out across stacked units, minimizing the impact should any unit fail.
Features
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Can work as layer 3 routing for scalable network design
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Management capability provides control over setup and configuration of your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Cascade to other network devices through the uplink port to expand your local area network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Features 8 networking ports to easily establish a local network or expand your existing one
- Effectively increases available bandwidth on your network
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Package Contents
- CentreCOM FS980M/9 Ethernet Switch
- US Power Cord
Product Type Ethernet Switch
Input Voltage 120 V AC
Input Voltage 230 V AC
Manufacturer Part Number AT-FS980M/9-10
Power Source Power Supply
Layer Supported 3
Weight (Approximate) 4.41 lb
Form Factor Wall Mountable
Form Factor Rack-mountable
Manufacturer Allied Telesis, Inc
Product Model FS980M/9
Product Name CentreCOM FS980M/9 Ethernet Switch
Network Technology 10/100/1000Base-T
Network Technology 1000Base-X
Power Consumption 6.30 W
Product Line CentreCOM
Product Series FS980M
Brand Name Allied Telesis
Expansion Slot Type SFP (mini-GBIC)
Height 1.7"
Width 13"
Depth 8"
Manageable Yes
Environmentally Friendly Yes
Environmental Certification EU RoHS
Compatible Rack Unit 1U
Number of Power Supplies Installed 1
Ethernet Technology Gigabit Ethernet
Number of Total Expansion Slots 1
Network (RJ-45) Yes
Number of SFP Slots 1
Modular Yes
Uplink Port Yes
Media Type Supported Optical Fiber
Media Type Supported Twisted Pair
Total Number of Network Ports 8
Shared SFP Slot Yes
Port/Expansion Slot Details 8 x Gigabit Ethernet Network
Port/Expansion Slot Details 1 x Gigabit Ethernet TP/SFP Combo
Networking Standards IEEE 802.1x
Networking Standards IEEE 802.2
Networking Standards IEEE 802.3
Networking Standards IEEE 802.3ab
Networking Standards IEEE 802.3x
Networking Standards IEEE 802.3z
Networking Standards IEEE 802.1ab
Networking Standards IEEE 802.1p
Networking Standards IEEE 802.1AX
Networking Standards IEEE 802.1D
Networking Standards IEEE 802.1w
Networking Standards IEEE 802.3ad
Networking Standards IEEE 802.1Q
Networking Standards IEEE 802.1v
Note Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
