Product Description

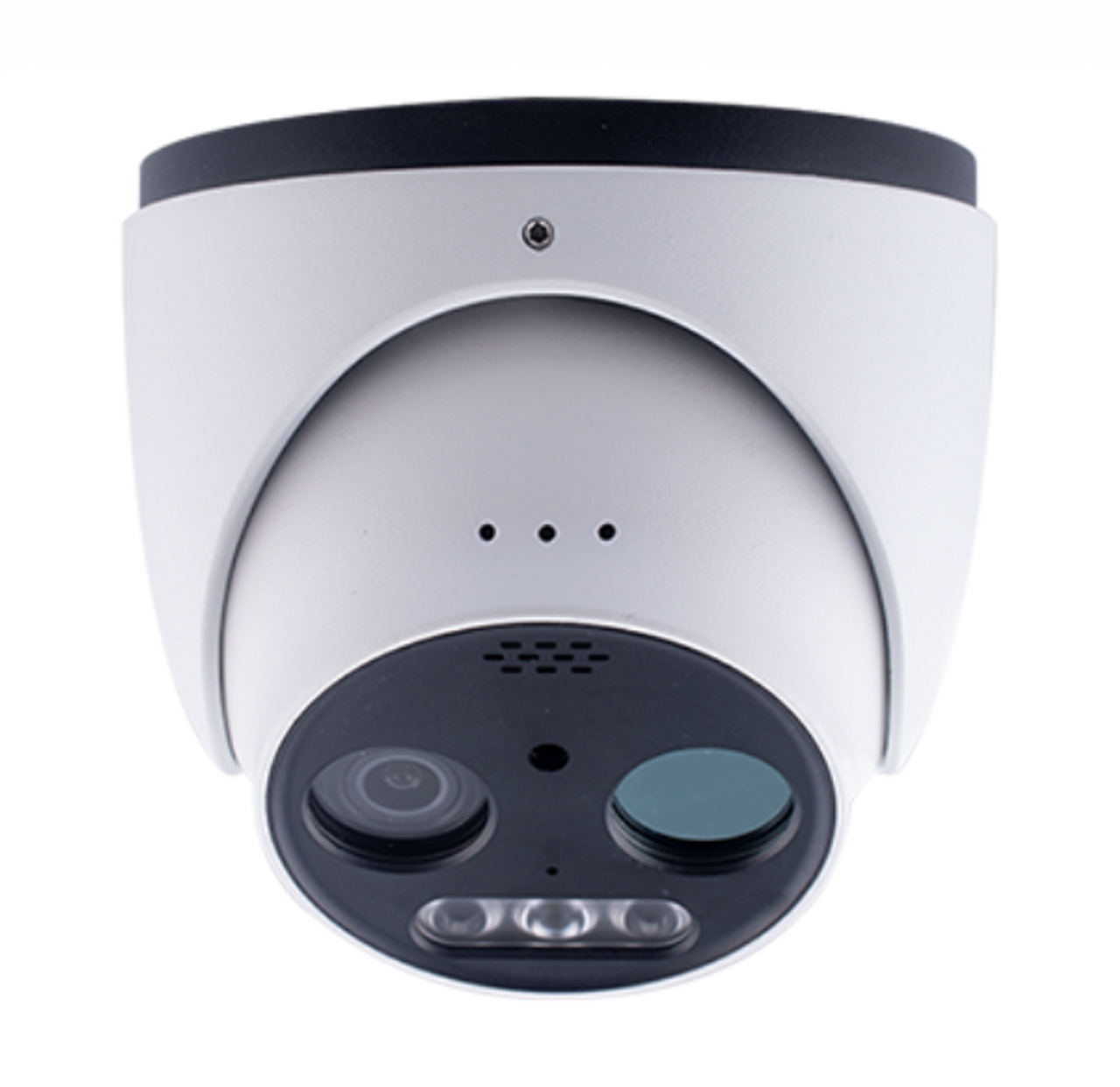

GeoVision 5MP H.265 Super Low Lux WDR Pro IR Thermal & Optical IR Fixed Eyeball Dome IP Camera - GV-TMEB5800
GV-TMEB5800 is an AI-enabled thermal camera that combines dual thermal and optical images for perimeter protection and fire prevention. The thermal camera can detect fires and measure predefined temperatures, triggering lighting and alarms. Even in low-light and harsh environments, the thermal camera with AI analytics is able to detect intrusion events with minimal false alarms. The camera adheres to the IP66 standard, and can be powered through PoE.
GV-TMEB5800 is also a camera for active deterrence. It can deter intruders and prevent potential crime by utilizing the built-in white LED and alarm sound.
GV-TMEB5800 is also a camera for active deterrence. It can deter intruders and prevent potential crime by utilizing the built-in white LED and alarm sound.
Key Features
- Thermal: Vanadium oxide uncooled focal plane detector, 12 um pixel size
- Thermal sensitivity: ≤50 mK (@25°C, F#=1.0)
- Thermal spectral range: 8 ~ 14 um
- Thermal images of up to 17 fps at 256 x 192 (output resolution 1280 x 720)
- Thermal AI analytics (Fire Detection, Temperature Exception Alarm, Line Crossing, Region Intrusion)
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 1/2.7" progressive scan CMOS sensor
- Min. illumination at 0.02 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 30 fps at 2592 x 1994
- 3-axis mechanism (pan / tilt / rotate)
- Ingress protection (IP66)
- Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
- Built-in microphone and speaker
- Two-way audio
- Defog
- 3D noise reduction
- AI analytics (Line Crossing, Region Entrance, Region Exiting, Target Counting, Region Intrusion, Face Detection)
- Active Deterrence: alarm sound and LED light triggered on AI detection events
- Motion detection
- Privacy mask
- 12 languages supported
- ONVIF (Profile G, S, T) conformant
DATASHEETEnabling Fire Point Detection Using GV-TMEB5800
Enabling Temperature Measurement Using GV-TMEB5800
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
MPN GV-TMEB5800
Storage Type Memory Card
Input Voltage 12 V DC
Remote Management Yes
Connectivity Technology Wired
Form Factor Eyeball
HD Recording Yes
Night Vision Type Infrared
Color Supported Color
Image Sensor Type CMOS
Video Formats MJPEG | H.264 | H.265
Note Images may not be exact, please check specifications.
