Gigabyte HPC/AI Server - AMD EPYC 9005/9004 - 4U DP NVIDIA HGX B200 DLC - G4L3-ZD1-LAX5
- Liquid-cooled NVIDIA HGX B200

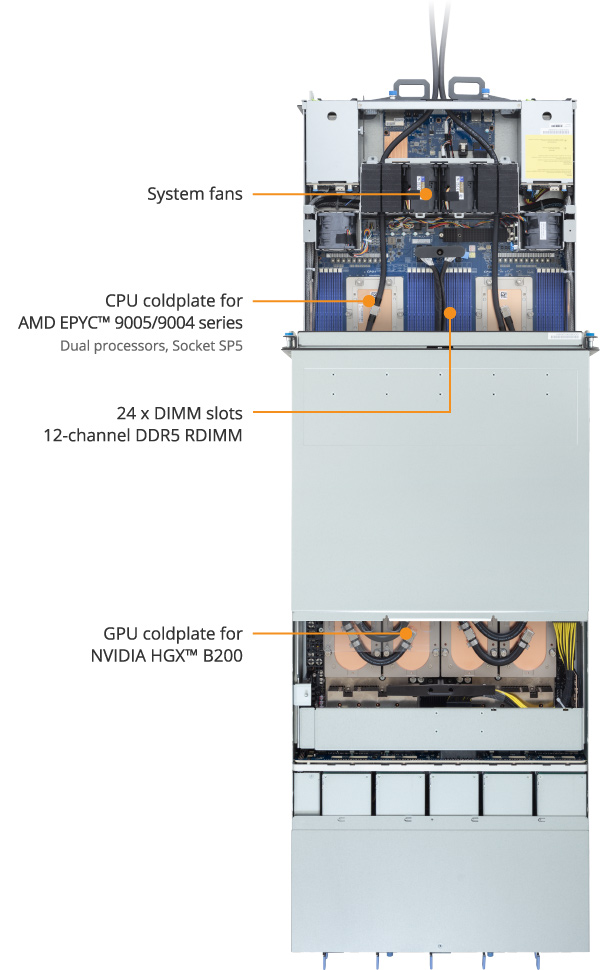

- CPU+GPU direct liquid cooling solution with leak detection
- 900GB/s GPU-to-GPU bandwidth with NVIDIA NVLink and NVSwitch
- Dual AMD EPYC 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- Compatible with NVIDIA BlueField-3 DPUs and NVIDIA ConnectX-7 NICs
- 2 x 10Gb/s LAN ports via Intel X710-AT2
- 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
- 8 x 2.5" Gen5 NVMe hot-swap bays
- 4 x FHHL dual-slot PCIe Gen5 x16 slots
- 8 x FHHL single-slot PCIe Gen5 x16 slots
- 4+4 3000W 80 PLUS Titanium redundant power supplies

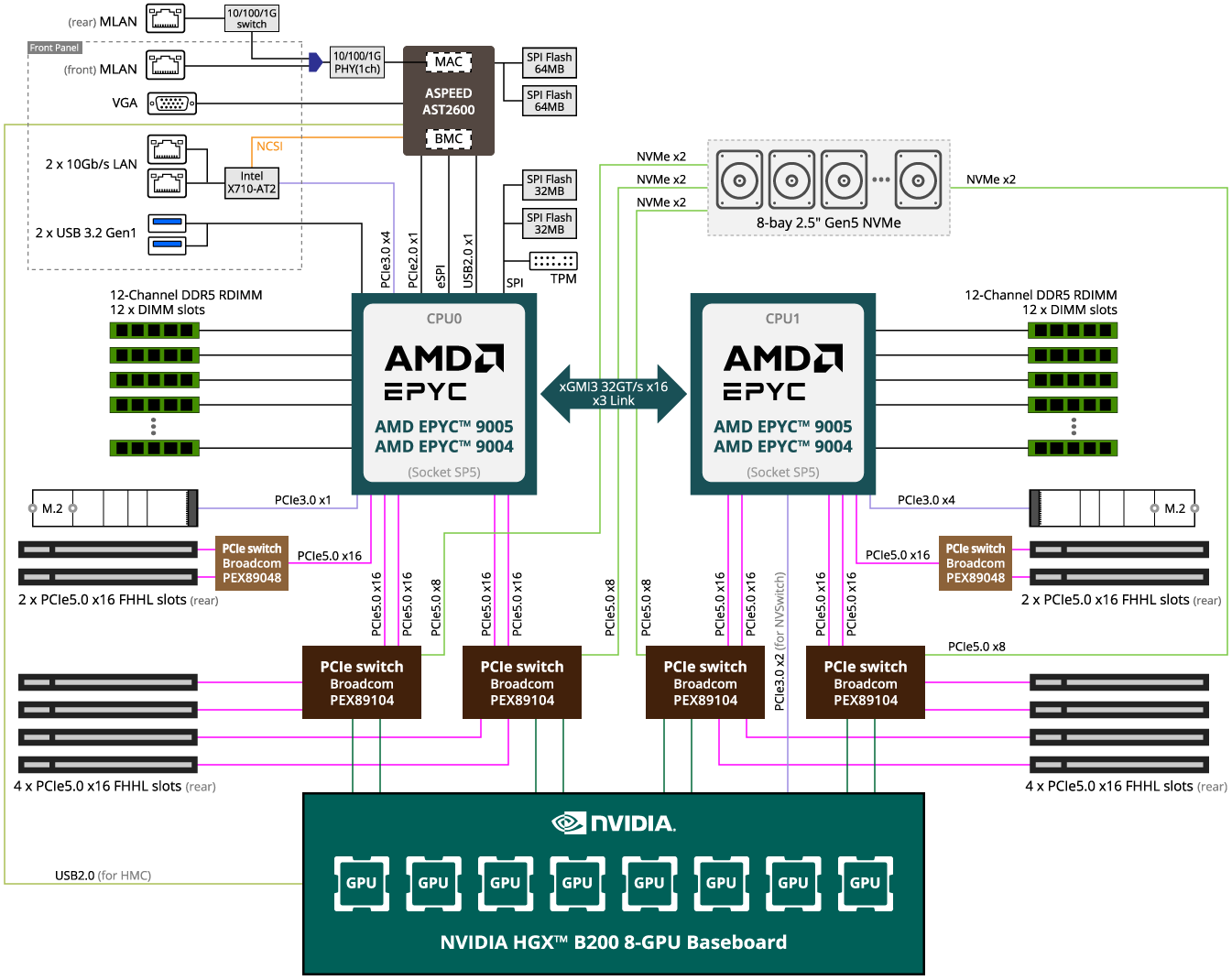

Specification
Dimensions (WxHxD, mm)
4U
447 x 175.3 x 920
447 x 175.3 x 920
Motherboard
MZB3-PE0
CPU
AMD EPYC 9005 Series Processors
AMD EPYC 9004 Series Processors
Dual processor, cTDP up to 500W
The ambient temperature is limited to 30°C when NVIDIA BlueField-3 DPUs are installed.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC 9004 Series Processors
Dual processor, cTDP up to 500W
The ambient temperature is limited to 30°C when NVIDIA BlueField-3 DPUs are installed.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory per processor
AMD EPYC 9005:
RDIMM: Up to 6400 MT/s
AMD EPYC 9004:
RDIMM: Up to 4800 MT/s
DDR5 memory supported
12-Channel memory per processor
AMD EPYC 9005:
RDIMM: Up to 6400 MT/s
AMD EPYC 9004:
RDIMM: Up to 4800 MT/s
LAN
Front (I/O board - CFPG540):
2 x 10Gb/s LAN (1 x Intel X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Rear (MLAN board - CDB66):
1 x 10/100/1000 Mbps Management LAN
[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
2 x 10Gb/s LAN (1 x Intel X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Rear (MLAN board - CDB66):
1 x 10/100/1000 Mbps Management LAN
[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
Video
Integrated in ASPEED AST2600
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
8 x 2.5" Gen5 NVMe
- (NVMe from PEX89104)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
8 x 2.5" Gen5 NVMe
- (NVMe from PEX89104)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
SAS
N/A
RAID
N/A
Modular GPU

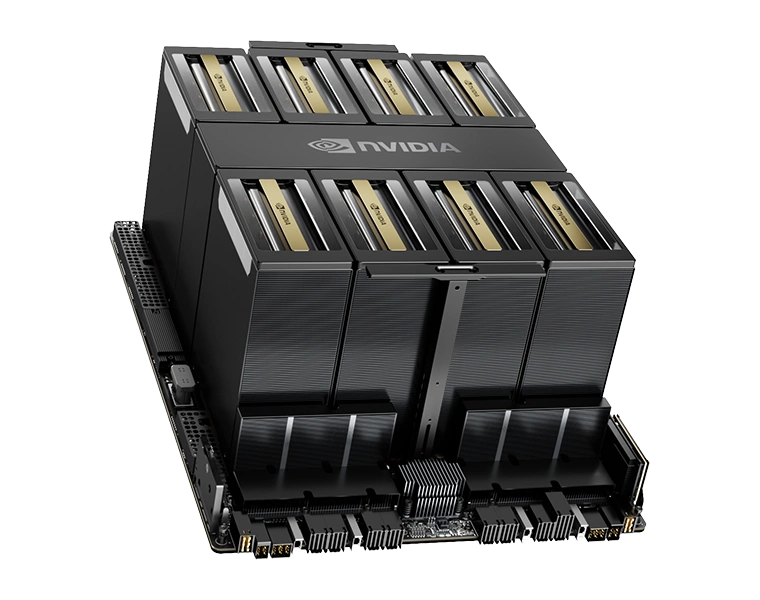

Liquid-cooled NVIDIA HGX B200 with 8 x SXM GPUs
PCIe Expansion Slots
PCIe Bridge Board - CBG76:
- 8 x FHHL x16 (Gen5 x16), from PEX89104
PCIe Bridge Board - CPBG045 x 2:
- 4 x FHHL x16 (Gen5 x16), from PEX89048
- 8 x FHHL x16 (Gen5 x16), from PEX89104
PCIe Bridge Board - CPBG045 x 2:
- 4 x FHHL x16 (Gen5 x16), from PEX89048

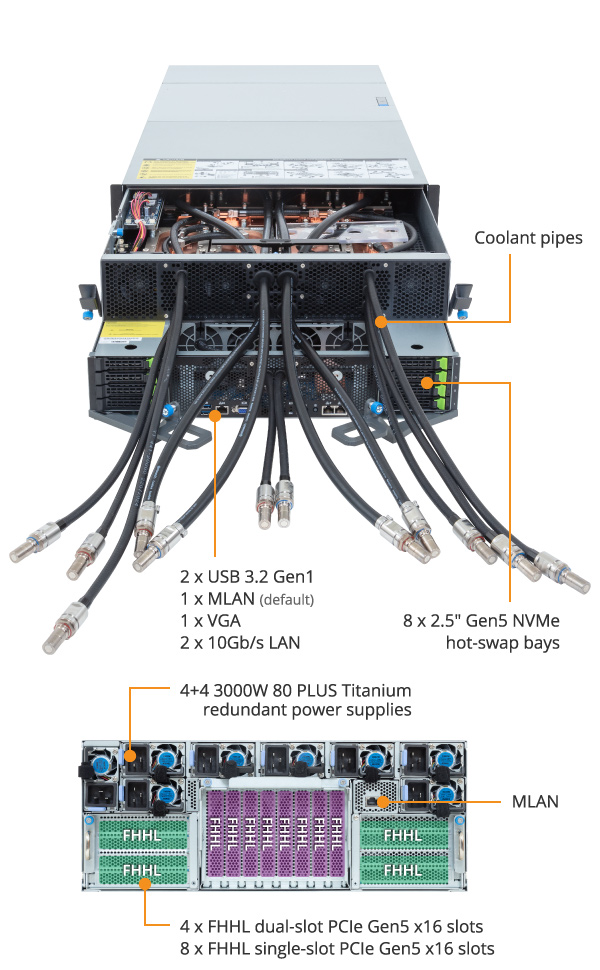

Front I/O
I/O board - CFPG540:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
MLAN board - CDB66:
1 x MLAN port
1 x MLAN port
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4
PCIe Gen5 x4
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
- Optional TPM2.0 kit: CTM012
Power Supply
4+4 3000W 80 PLUS Titanium redundant power supplies
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
System Management
ASPEED AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
Motherboard:
2 x 60x60x56mm / 2 x 60x60x76mm
PCIe slots:
4 x 80x80x56mm
GPU tray:
4 x 60x60x38mm
2 x 60x60x56mm / 2 x 60x60x76mm
PCIe slots:
4 x 80x80x56mm
GPU tray:
4 x 60x60x38mm
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
[Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 40°C.
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
[Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 40°C.
Packaging Dimensions
1300 x 800 x 439 mm
Packaging Content
1 x G4L3-ZD1-LAX5
1 x L-shape Rail kit
1 x L-shape Rail kit
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
MPN G4L3-ZD1-LAX5
Note Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
