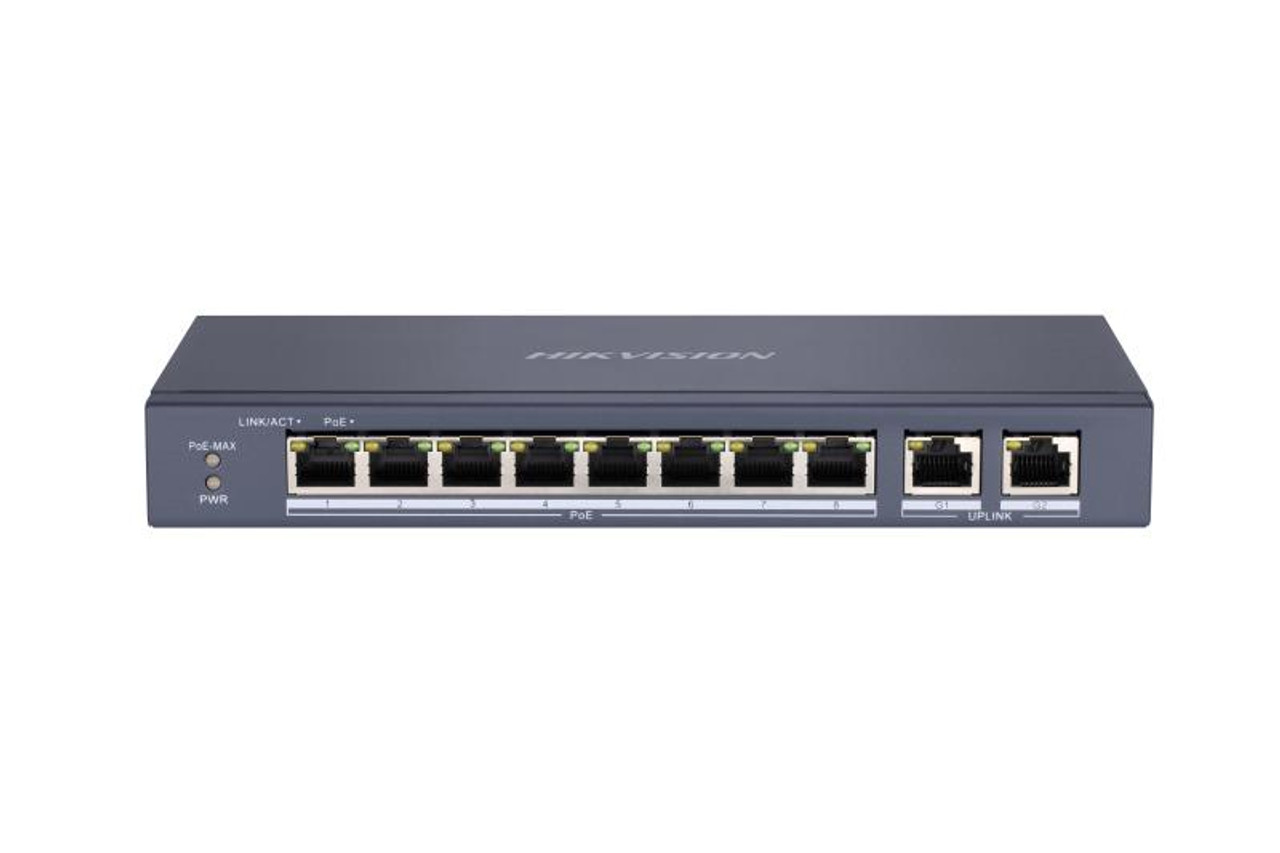

Hikvision 8 Port Fast Ethernet Unmanaged POE Switch - DS-3E0310P-E/M

• 8 × 10/100 Mbps PoE port, and 2 × Gigabit RJ45 port.
• IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
• 6 KV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• Wire-speed forwarding.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.

Specification

General

• Shell: Metal material
• Net Weight: 0.555 kg (1.22 lb)
• Gross Weight: 1.20 kg (2.65 lb)
• Dimensions (W × H × D): 217.6 mm × 103.35 mm × 27.8 mm (8.57'' × 4.07'' × 1.09'')
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
• Operating Humidity: 5% to 95% (no condensation)
• Relative Humidity: 5% to 95% (no condensation)
• Power Supply: 48 VDC, 1.35 A
• Max. Power Consumption: 65 W
• Power Consumption in Idle: 5 W
• Installation Mode Desk-Mounted, Wall-Mounted
• Surge Protection: 6 KV

Network Parameters

• Ports: 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
• MAC Address Table: 8 K
• Switching Capacity: 5.6 Gbps
• Packet Forwarding Rate: 4.17 Mpps
• Internal Cache: 4 Mbits
