Product Description

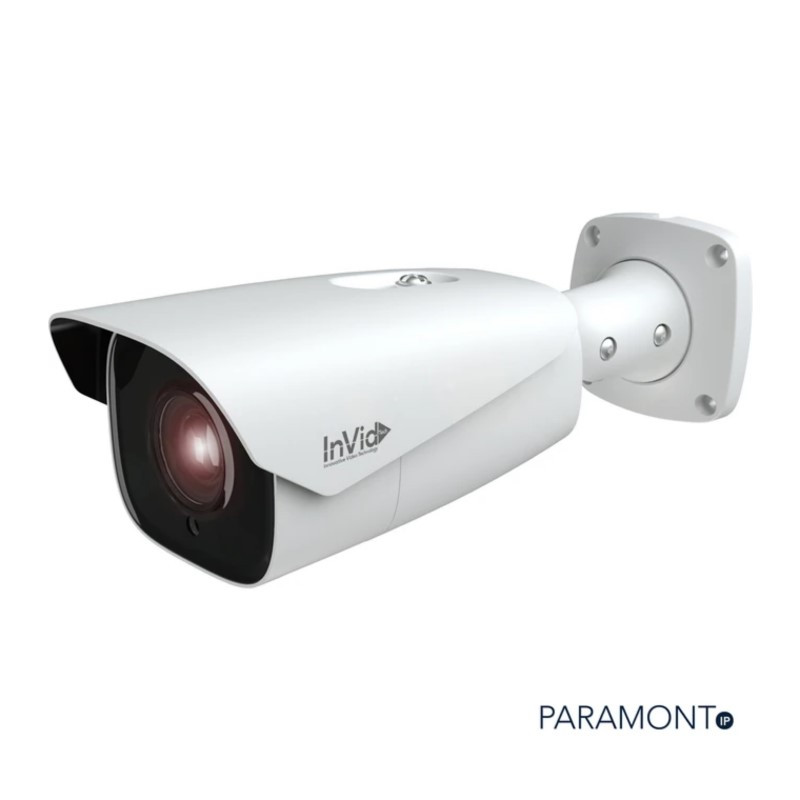

2 Megapixel IP Plug & Play License Plate Recognition Outdoor Bullet, 7-22mm Motorized A/F, Starlight Illumination, 328’ IR Range, WDR, Audio Input, PoE/12VDC
Core Features:
- 2 Megapixel Resolution
- Motorized Auto-Focus 7-22mm Lens
- License Plate Recognition
- True Day/Night with IR Range up to 328’
- Starlight Illumination
- Smart H.265/H.265+/H.265/Smart H.264/H.264+/H.264/MJPEG Compression
- 30 FPS Recording and Live
- True WDR 120dB
- Micro SD Slot: Up to 256GB
- Audio Input
- Audio Output
- IP67 Weatherproof
- 12VDC/PoE Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
Weight | 2.29 lbs |
---|---|
Dimensions | 11 × 3.94 × 3.5 in |
Brand | InVid |
IP Camera Audio Input | Audio Input |
IP Camera Audio Output | Audio Output |
IP Camera Type | Bullet |
IP Camera Housing Material | Metal |
IP Camera IR Range | 201-500 ft |
IP Camera Lens | Motorized Auto-Focus |
IP Camera Light Options | IR |
IP Camera Megapixels | 2 MP |
IP Camera Weather Rating | IP67 Weatherproof |
Specialty Camera Features | License Plate Recognition |
Camera PAR-P2LPR722
Image Sensor 1 / 2.8 "CMOS
Image Size 1920 × 1080
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Iris Type DC Iris
Min. Illumination 0.0026 lux@F1.2,AGC ON; 0 lux with IR 0.005 lux@F1.6, AGC ON;
0 lux with iR
Lens 7~22mm@F1.6, motorized
Field of View H: 44°~17.6°; V:25.6°~10°; D: 49.7°~20.2°
Lens Mount Φ14
Wide Dynamic Range 120dB
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°
Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 /
MJPEG
H.264 Compression
Standard Baseline Profile/Main Profile/High Profile
Resolution 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
Main Stream 60Hz : 1080P / 720P( 1 ~ 30fps ); 50Hz : 1080P / 720P( 1 ~ 25fps )
HFR Mode: 1080P/720P (60Hz: 1~60fps; 50Hz: 1~50fps)
Sub Stream 60Hz : 720P/D1/CIF/480x240 (1~30fps); 50HZ: 720P/D1/
CIF/480x240 (1~25fps)
Third Stream 60Hz : D1/CIF/480x240 (1~30fps); 50HZ: D1/CIF/480x240 (1~25fps)
Bit Rate 64 Kbps ~ 6 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A / U
Image Settings
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic,
Sharpen NR,etc. adjustable through client software or web
browser
ROI Each ROI to be configured separately
Interfaces
Network RJ45
Video Output No
Audio 1CH audio input; 1CH audio output
Storage Built-in micro SD card slot; up to 256GB
Reset Yes
Alarm 1CH alarm input; 1CH alarm output
RS 485 No
Functions
Remote Monitoring Web browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users; Support
multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP,
HTTP, 802.1x, UPnP, HTTPs, QoS
Interface Protocol ONVIF
Storage Network remote storage; micro SD card storageup to 128GB
Smart Alarm Motion detection, sensor alarm, SD card error, SD card full, IP
address conflict, cable disconnection
Intelligent Analytics Video tampering detection, scene change detection, license
plate recognition
General Function
Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion
correction
PoE Yes , IEEE802.3af
IR Distance 229.6- 328 ft (70~100m)
Protection Grade IP67
LPR
Snapshot Overview and cutout of plate for picture
White List 10000
Capture Speed Range 0~70km/h
Others
Power Supply DC12V/PoE
Power Consumption < 11W
Operating Environment -22°F~140°F (- 30 °C ~ 60 °C) Humidity: less than 95 % (non-condensing)
Dimensions 11 x 3.94 x 3.5 in (279.5 × 100.3 × 88.9 mm)
Weight ( net ) Approx. 2.29 lbs (1.04KG)
Installation Ceiling mounting; Wall mounting
