Product Description

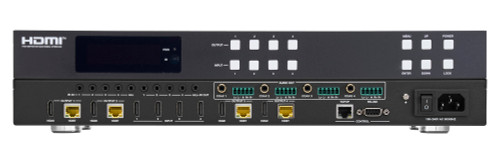

KanexPro HDMI HDbaseT Matrix 4X4 CAT6 150M 4K@60Hz - MMX-4X4CAT-150M
The Kanexpro MMX-4X4CAT- 150M is a versatile 4X4 switcher with HDMI and twisted pair input and output device. Additionally, it has simultaneous HDMI Mirror output for local distribution/ monitoring. An intuitive front panel with an OLED screen for easy setup and monitoring of input/output configurations.
4k@60 4:4:4 video can be extended over shielded twisted pair cable up to 492ft/150m.
Supports audio de-embedding to analogue formats, ensuring flexibility in audio output options alongside video from transmitter and receiver.
Provides multiple control methods including front buttons panel, IR remote control, RS-232/Serial control, LAN (Ethernet), and a Web GUI (Graphical User Interface).
The IR matrix allows one-to-one control at the Matrix end, meaning IR signals can control specific inputs and outputs directly.
Overall, the KanexPro MMX-4X4CAT-150M HDMI 2.0 Matrix is well-suited for professional installations requiring high-definition video distribution over long distances, with robust audio support and comprehensive control options for ease of use and integration into various AV setups.
- Max. 18 Gbps Data Rate Supported.
- Up to 4K @60hz 4:4:4 resolution.
- HDCP 2.2 and HDCP 1.x compliant.
- 4 HDMI inputs, 4 HDMI & CATx mirrored outputs.
- Balanced Audio De-embedded supported.
- POC to Receiver.
- Advance EDID Management and CEC Control Supported.
- Extend video transmission distance up to 492ft / 150m for 1080P or 394ft / 120m for 4K2K via a single Cat 5e/6/7 cable.
- Support IR Matrix.
- 1U rack mounted design with front panel OLED display
