Product Description

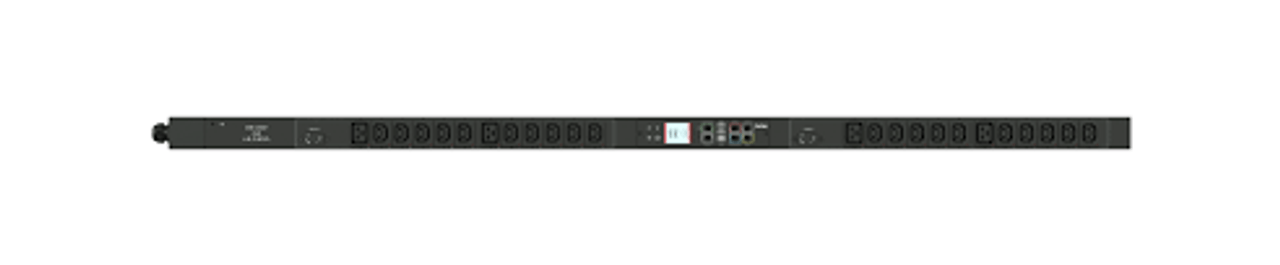

Raritan PX3-5497V-E2 24-Outlets PDU - Switched with Metered-by-Outlet - NEMA L6-30P (2P3W) - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - Branch Circuit, Overload Protection - Network (RJ-45) - 9.84 ft Cord Length - Rack-mountable - PX3-5497V-E2
- Provide circuit protection and easy configuration for trouble-free access
- Remotely monitor your equipment without any worries with Switched with Metered-by-Outlet
- Single Phase phase PDU provides dependable power output with maximum efficiency
- NEMA L6-30P (2P3W) plug/connector type for better, dependable connectivity and desired power output
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- 230 V AC input voltage for optimal performance with maximum usability
- 208 V AC output voltage for better reliance and maximum usability
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Product Type PDU
Input Voltage 230 V AC
Manufacturer Part Number PX3-5497V-E2
Limited Warranty 2 Year
Output Voltage 208 V AC
Weight (Approximate) 13.67 lb
Features LCD Display
Features Onboard Display
Input Current 30 A
Management
- HTTP(s)
- SSH
- Telnet
- RS-232 (Serial)
- Power IQ
- SNMP version v2/v3
- SMTP
- JSON-RPC
- Modbus over TCP
Manufacturer Legrand Group
Product Model PX3-5497V-E2
Product Name PX3-5497V-E2 24-Outlets PDU
Mount Type Rack-mountable
Protection Type Branch Circuit
Protection Type Overload Protection
Product Series PX3
Brand Name Raritan
Plug/Connector Type NEMA L6-30P (2P3W)
Input Voltage Range 200 V AC - 240 V AC
Cord Length 9.84 ft
Height 60.6"
Width 2.1"
Depth 2.8"
Input Frequency 60 Hz
Phase Single Phase
Receptacle Type IEC 60320 C13
Receptacle Type IEC 60320 C19
Output Voltage Range 200 V AC - 240 V AC
Maximum Operating Temperature 140°F (60°C)
Network (RJ-45) Yes
Load Capacity (VA) 5 W
PDU Type Switched with Metered-by-Outlet
Remote Outlet Switching Yes
Power Rating (VA) 5800 VA
Product Color Black Powder Coat
Locking Receptacles SecureLock
Locking Receptacles IEC 60320 C13
Locking Receptacles IEC 60320 C19
Receptacle Detail 20 x IEC 60320 C13
Receptacle Detail 4 x IEC 60320 C19
Maximum Operating Humidity 85%
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Note Images may not be exact, please check specifications.
