  • SYS-F620P3-RTBN
  • SYS-F620P3-RTBN

    • SuperMicro FatTwin SuperServer SYS-F620P3-RTBN (Complete System Only ) 4U 4-node FatTwin with 8 3.5" SAS/SATA (optional 6 NVMe) per node

    Supermicro

    Request A Quote

    Write a Review
    SKU:
    HS-SUP-SYS-F620P3-RTBN
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    Manufacturer Part Number:
    SYS-F620P3-RTBN
    CPU:
    Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors
    Core Count:
    Up to 36C/72T; Up to 54MB Cache per CPU
    Memory:
    Slot Count: 16 DIMM slots, Max Memory (2DPC): Up to 2TB non-ECC, Supports Intel Optane persistent memory 200 series
    Chipset:
    Intel C621A
    Network Connectivity:
    1 RJ45 1GbE
    LAN:
    1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB:
    2 USB 3.0 port(s) (rear)
    Video:
    1 VGA port(s)
    System BIOS:
    AMI 32MB SPI FLASH ROM
    Form Factor:
    4U Rackmount
    Model:
    CSE-F424AS3-R2K20BP
    Height:
    6.96" (177 mm)
    Width:
    17.63" (448 mm)
    Depth:
    29" (737 mm)
    Package:
    15" (H) x 28.3" (W) x 42.4" (D)
    Net Weight:
    150 lbs (68.04 kg)
    Color:
    Silver
    Fans:
    2x 8cm Fan(s)
    Note:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a volume pricing | volumeorders@hssl.us

    Product Description

    SuperMicro FatTwin SuperServer SYS-F620P3-RTBN (Complete System Only ) 4U 4-node FatTwin with 8 3.5" SAS/SATA (optional 6 NVMe) per node

    Key Applications

    • Hyperscale / Hyperconverged
    • HPC and Big Data
    • Data Center Enterprise Applications
    • High Capacity and Ultra Dense Storage
    • Virtualization Server (VSAN)
    • Telco Data Center

    Key Features

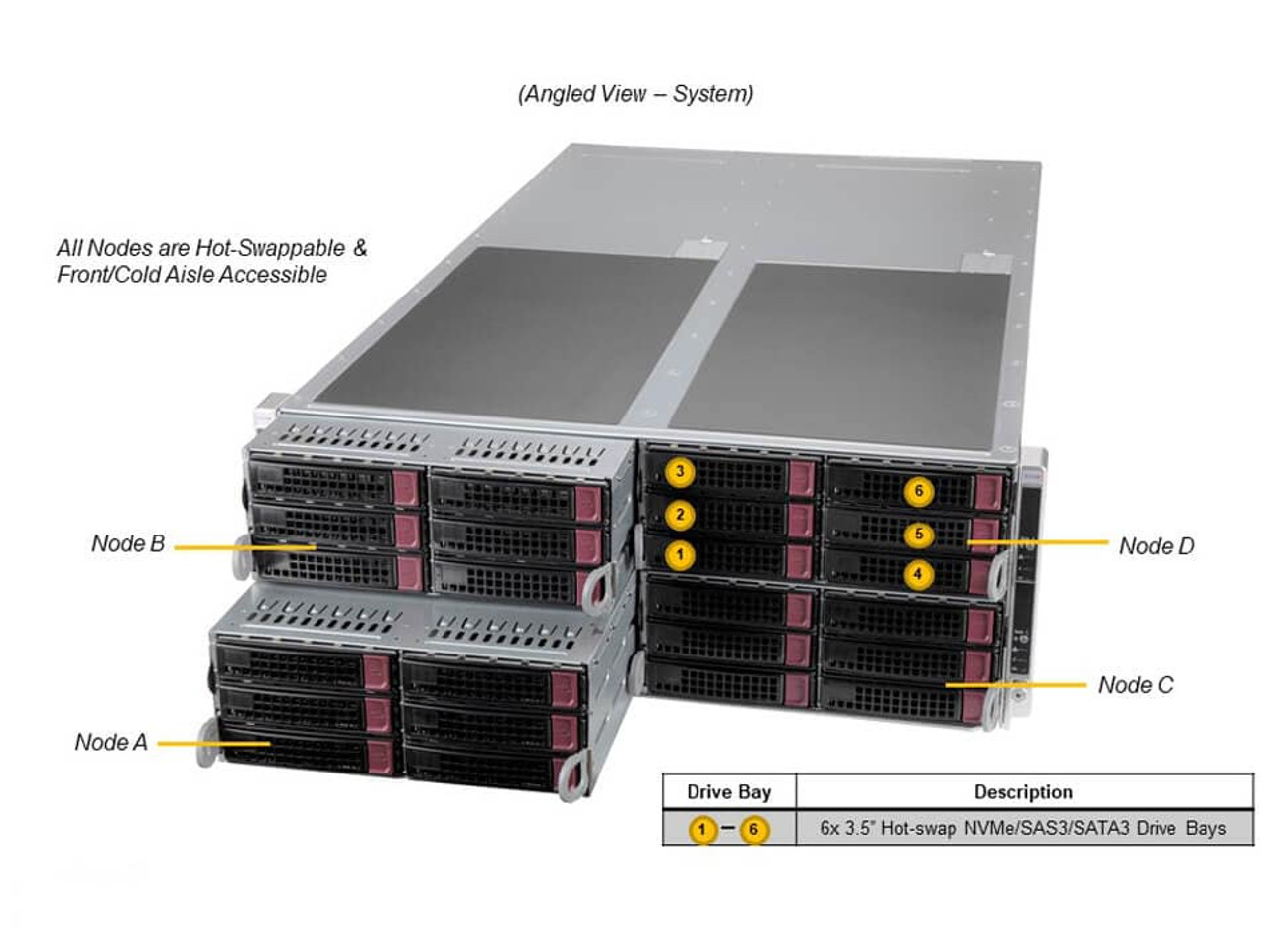

    Four hot-pluggable systems (nodes) in a 4U form factor. Each node supports the following:

    1. Socket P+(LGA 4189) Supports 3rd Generation Intel® Scalable Processors (Dual Socket)
    2. Two M.2 Internal Drives
    3. NVMe/SATA/SAS options
    4. AIOM and M.2 support; 1 AIOM card support (PCIe 4.0)
      • Front access node for better serviceability; 8x 3.5” hot-swap HDDs per node
      • Up to 8x SAS/SATA Hot Swap 3.5” Drives, or up to 6x NVMe Hot Swap 2.5” Drives + 2x SAS/SATA Hot Swap 3.5” Drives

    DATASHEET

    Other Details

    (Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request page

    Product Videos

    Custom Field

    Manufacturer Part Number SYS-F620P3-RTBN
    CPU Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors
    Core Count Up to 36C/72T; Up to 54MB Cache per CPU
    Memory Slot Count: 16 DIMM slots, Max Memory (2DPC): Up to 2TB non-ECC, Supports Intel Optane persistent memory 200 series
    Chipset Intel C621A
    Network Connectivity 1 RJ45 1GbE
    LAN 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB 2 USB 3.0 port(s) (rear)
    Video 1 VGA port(s)
    System BIOS AMI 32MB SPI FLASH ROM
    Form Factor 4U Rackmount
    Model CSE-F424AS3-R2K20BP
    Height 6.96" (177 mm)
    Width 17.63" (448 mm)
    Depth 29" (737 mm)
    Package 15" (H) x 28.3" (W) x 42.4" (D)
    Net Weight 150 lbs (68.04 kg)
    Color Silver
    Fans 2x 8cm Fan(s)
    Note Images may not be exact, please check specifications.
    Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
