Product Description

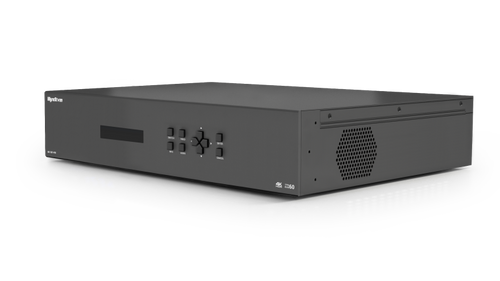

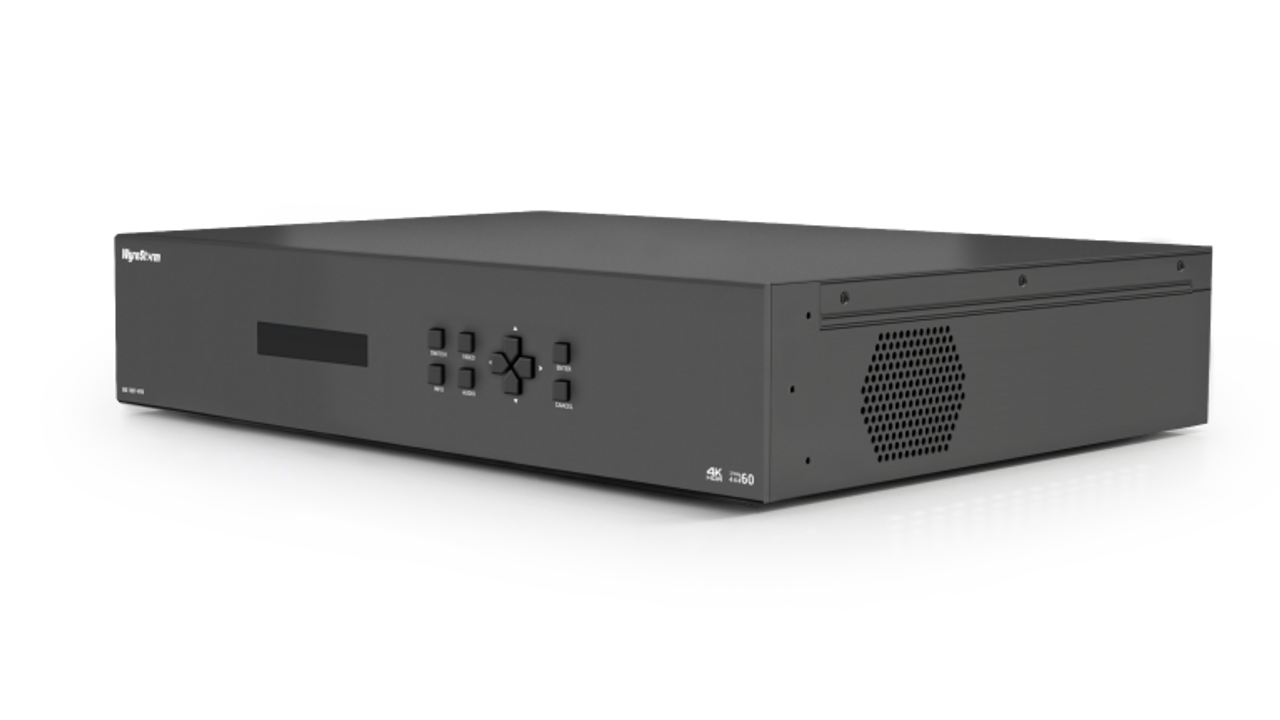

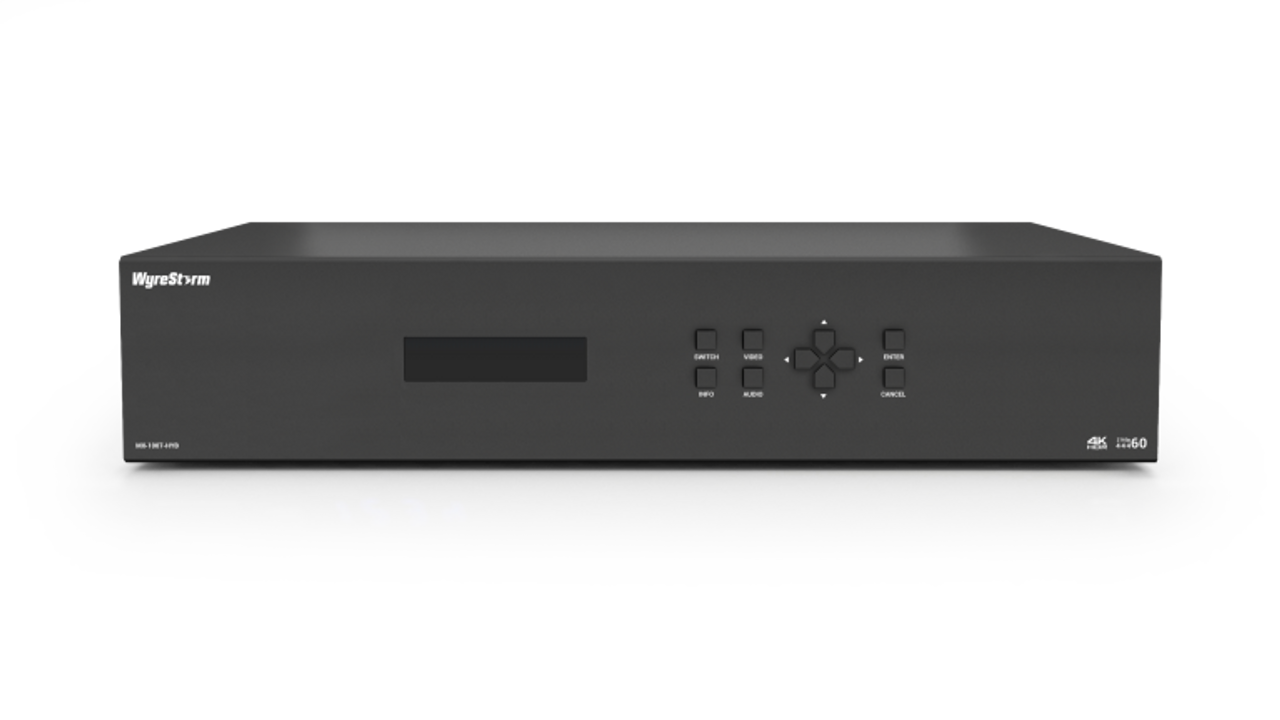

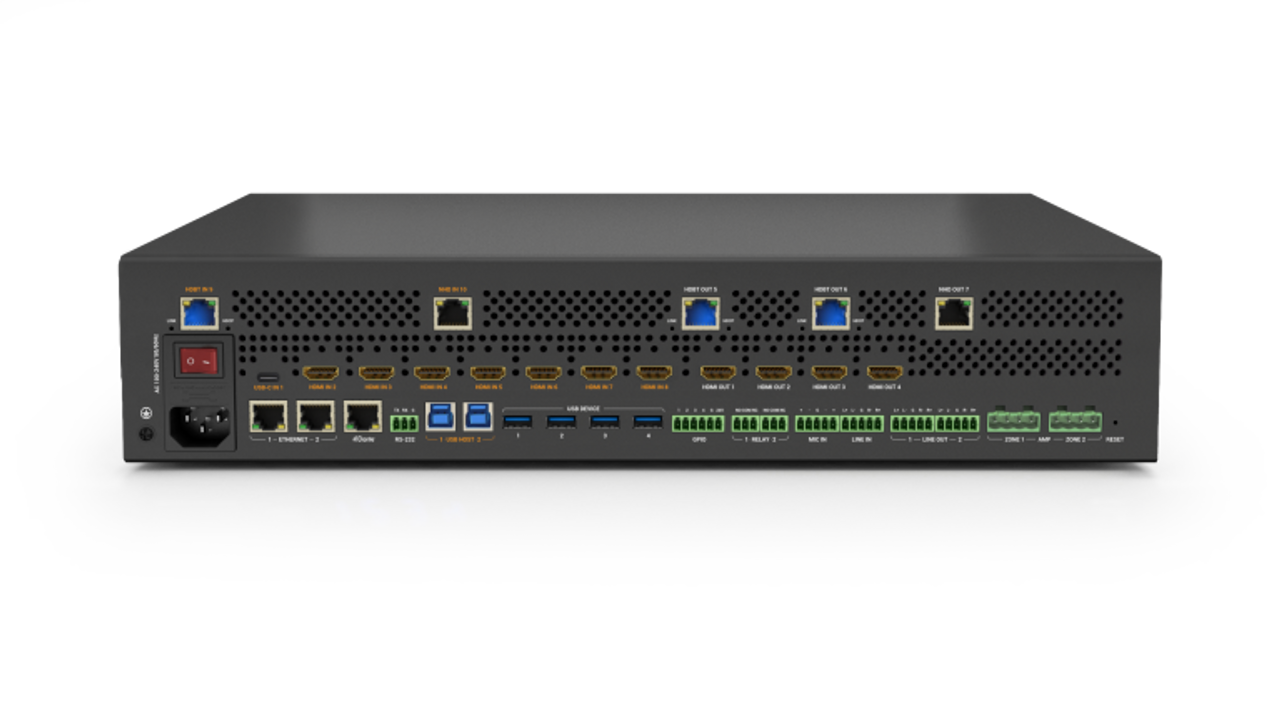

WyreStorm Advanced 10×7 Seamless Matrix Switch for Presentation Systems with USB-C, HDMI, HDBT, Dante Audio, and NetworkHD Connectivity - MX-1007-HYB
The MX-1007-HYB is the next generation of matrix switchers. Featuring seamless 4K60Hz switching for crystal-clear visuals and uninterrupted enjoyment. Simplify your setup with HDBT™ technology, offering long-distance audio and video transmission over a single cable for a clutter-free environment. Embrace scalability with NetworkHD 500, and elevate your audio with integrated Dante technology and a 100- Watt Amplifier with DSP, ensuring a powerful, immersive auditory experience. Streamline and enhance your audiovisual experience in any space.
Additional Features
- Multi-format video connections include USB-C, HDMI, HDBaseT and NetworkHD (500 Series) NetworkHD input and output supports spill-over applications
- Fast up to 1 second switching across all video outputs
- 480p to 2160p built-in scaling video outputs
- USB-C input supports 4K60 video, USB3.0/USB2.0, 1G network, and PD3.0 USB host charging up to 60watts
- All HDBaseT outputs support HDBaseT 3.0 specification, which includes uncompressed A/V, RS-232, USB2.0 up to 300Mbps and PoE+ PSE transmission
- NetworkHD input and output supports a 4K60 scaler, and seamless switching of A/V, USB2.0 and RS-232 control signals up to 330ft/100m over a single CAT6a cable, or longer via 1G network switch
- Supports USB host switching and device extension
- Switching USB hosts include 1x USB-C port, 2x local USB3.0 USB-B ports, 1x NHD input, 1x HDBT input related USB connection
- USB devices include 4x local USB3.0 USB-A ports, 1x NHD output, 2x HDBT outputs related USB connections
- Supports 2x MIC inputs, 1x LINE input, Dante 4×4 optional and 2x 5-pin balanced audio outputs
- 4-channel 4/8ohm amplified speaker outputs
- GPIO and Relay support for automation of screens, occupancy sensors etc
- Three separate audio mixers for analog, digital, and video de-embed
- HDCP 2.3 compliant and backward compatible for secure content transmission
- Supports HDR formats including HDR10, HDR10+, HLG, and Dolby Vision Low Latency
- EDID management for efficient control and customization of connected displays
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
MPN MX-1007-HYB
HDMI HDMI 2.0 | HDCP 2.3 | EDID | CEC
HDBaseT HDMI 2.0 | HDCP 2.3 | EDID | USB 2.0 | CEC | RS-232 | 1-way PoH
NetworkHD HDMI 2.0 | HDCP 2.3 | EDID | USB2.0 | RS-232
Dante Ultimo 4×4 1 x 1GbE RJ-45
RS-232 1x RS-232: 3-pin Phoenix Female | Matrix Control Routable RS-232 Device Control | Telnet commands supported
Ethernet 2x LAN: 8-pin RJ-45 Female | Web UI | Matrix Control and Ethernet
Power Supply 100~240V AC 50/60Hz
Note Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
