Product Description

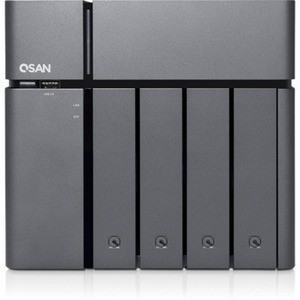

Sans Digital XCubeNAS XN5004T SAN/NAS Storage System - Intel Celeron Dual-core (2 Core) 2.90 GHz - 4 x HDD Supported - 56 TB Supported HDD Capacity - 1 x SSD Supported - 2 TB Supported SSD Capacity - 8 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported 0, 1, 5, 6, 10, 50, 60, 5+Hot Spare - 5 x Total Bays - 4 x 3.5" Bay - 1 x 2.5" Bay - 1 x Total Slot(s) - Gigabit Ethernet - HDMI - 5 USB Port(s) - 2 USB 2.0 Port(s) - 3 USB 3.0 Port(s) - Network (RJ-45) - 8 GB Flash Memory Capacit ZFS NAS ENCLOSURE
The XCubeNAS XN5000T Series are simple, solid, and stylish NAS systems which are designed for Workgroup and SMB applications. The XCubeNAS is powered by specific hardware N+1(3.5'' LFF xN + 2.5'' SFF x1) design, with an additional onboard SATA SSD slot for blazing performance and capacity expansion that can benefit every workgroup and SMB user.
With an additional flexible PCIe slot to boost Thunderbolt™ 3 performance, Thunderbolt™ 3 not only delivers an amazing 40Gbps data transmission rate but also provides more than a 100% increase in bandwidth than the 2nd generation. It is an ideal solution for throughput demanding applications such as video editing and production, music production, digital photography editing, high-speed external device data backup to NAS, and more.
The XCubeNAS is perfectly designed for Workgroups and SMB by the latest hardware specification. Humanized mechanical design makes the installation and maintenance much easier than you can imagine.
With additional PCIe slots on XCubeNAS, ultra-high-speed data transmission, such as 10GbE, 40GbE and Thunderbolt 3, is also capable for multiple purposes.
- The latest processor: With Intel latest 7th generation processor to provide abundant resources to meet computational requirements of a wide variety of applications.
- Up to 4 x 1 GbE network interface: Built-in four 1GbE Ethernet ports which meet iSCSI/NFS/CIFS network data transmission requirements.
Features - Exclusive Hardware Design
- Leading Enterprise-level NAS Operating System
- Advanced Storage Technology
- Virtualization Ready
- All-in-One Business Solution
- Centralized Data Storage & File Sharing
- Universal & Efficient Data Backup
- Security & Data Protection
Miscellaneous
Power Description
| Maximum Power Supply Wattage | 200 W |
Warranty
Memory
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
| Gigabit Ethernet |
Controllers
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, 5+Hot Spare |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Physical Characteristics
| Form Factor | Tower |
| Height | 7" |
| Width | 7.5" |
| Depth | 9.3" |
Management & Protocols
| Protocols | SNMP |
| AFP |
| Bonjour |
| CIFS |
| DDNS |
| FTP |
| FXP |
| IPSec |
| IPv4 |
| SMTP |
| SFTP |
| RSync |
| PPTP |
| NFS |
| LDAP |
| L2TP |
| iSCSI |
| IPv6 |
| WEBDAV |
| SSL/TLS |
| SSH |
Processor & Chipset
| Processor Speed | 2.90 GHz |
| Processor Type | Celeron |
| Processor Core | Dual-core (2 Core) |
| Processor Manufacturer | Intel |
I/O Expansions
| Expansion Slot Type | PCI Express 3.0 x8 |
| Number of Total Expansion Bays | 5 |
| Number of 3.5" Bays | 4 |
| Number of Total Expansion Slots | 1 |
| Number of 2.5" Bays | 1 |
Interfaces/Ports
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 3 |
Storage
| Flash Memory Capacity | 8 GB |
| Total Hard Drive Capacity Supported | 56 TB |
| Total Solid State Drive Capacity Supported | 2 TB |
| Number of Hard Drives Supported | 4 |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Supported | 1 |
| Number of Solid State Drive Installed | No |
General Information
| Product Type | SAN/NAS Storage System |
| Manufacturer Part Number | ST-SAN-XN5004T |
| Manufacturer Website Address | http://www.sansdigital.com |
| Manufacturer | Sans Digital |
| Product Model | XN5004T |
| Product Name | XCubeNAS XN5004T SAN/NAS Storage System |
| Product Line | XCubeNAS |
| Product Series | XN5000T |
| Brand Name | Sans Digital |
Other Details
