Product Description

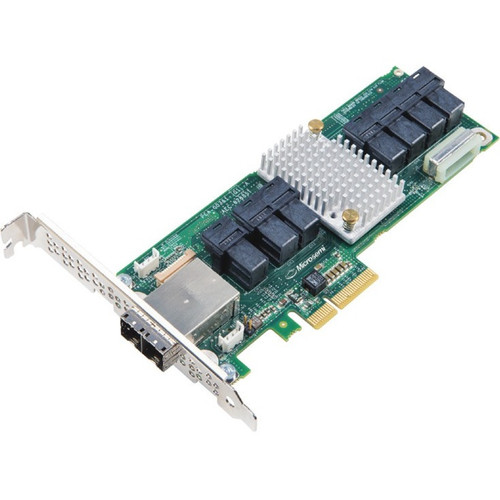

Microchip Adaptec 12Gb/s SAS Expander Card - 12Gb/s SAS - PCI Express x4 - Plug-in Card - 36 Total SAS Port(s) - 28 SAS Port(s) Internal - 8 SAS Port(s) External
The 12Gb/s Microsemi Adaptec 82885T SAS expander card offers a scalable connectivity / fan-out option for additional drives when used in conjunction with a SAS RAID adapter or SAS HBA. The 82885T SAS Expander Card offers 36 ports in a low-profile MD2 form factor with up to 20 internal ports for direct attach drive connectivity, 4 or 8, internal ports for connectivity to a RAID adapter or HBA, and 8 external ports for external storage expansion.Flexibility of Configuration
The 82885T mounts internally to any available PCIe slot, away from the backplane, and features mini-SAS HD connectors out the top for added cabling flexibility in dense server environments. The 82885T enables a low cost drive expansion solution when mated with a RAID adapter or HBA. The expander draws power from the PCIe slot (requires 4 or more lanes), but there is no data transfer to the slot. Alternatively, power can also be supplied to the expander card through a standard 4-pin auxiliary power connector.
Enclosure Management Support
The 82885T supports SGPIO and SES2 enclosure management, allowing enclosure information to be routed from all daisy-chained 82885T cards to the HBA or RAID adapter. All device and slot mapping information is provided to the HBA or RAID adapter by the last 82885T card in the chain.
Universal Compatibility with Existing Storage Infrastructure
The 82885T is fully compatible with Microsemi Adaptec Series 8, Series 7 and Series 6 12Gb/s and 6Gb/s RAID adapters and HBAs, allowing for a seamless integration and management within an end-to-end Microsemi Adaptec solution. The 82885T is also compatible with 3rd party adapters and HBAs and has also been tested for interoperability with a wide variety of SAS and SATA HDDs and SSDs.
Features
- 36 ports (28 internal, 8 external) in low-profile MD2 form factor
- Enables both internal and external connectivity
- Complete portfolio of mini-SAS HD cables available
- 12 Gbps SAS and 6 Gbps SATA data transfer rates
- Backwards compatible to 6 Gbps for legacy 6G SAS or SATA devices
- Proven compatibility with existing Microsemi Adaptec solutions, multiple operating systems, servers, enclosures, SSDs, HDDs, and LTO Tape drives
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Host Interface PCI Express 3.0 x4
Product Type SAS Controller Expander
Manufacturer Part Number 2283400-R
Packaged Quantity 1
Limited Warranty 3 Year
Weight (Approximate) 1.52 lb
Form Factor Plug-in Card
Length 6.6"
Manufacturer Microchip Technology Inc.
Product Model 82885T
Product Name Expander Card 82885T Single
Controller Type 12Gb/s SAS
Brand Name Microchip Adaptec
Height 2.5"
Environmentally Friendly Yes
Environmental Certification RoHS
Total Number of SAS Ports 36
Number of SAS Ports (Internal) 28
Number of SAS Ports (External) 8
SAS Connector Details 7 x SFF-8643
SAS Connector Details 2 x SFF-8644
