Product Description

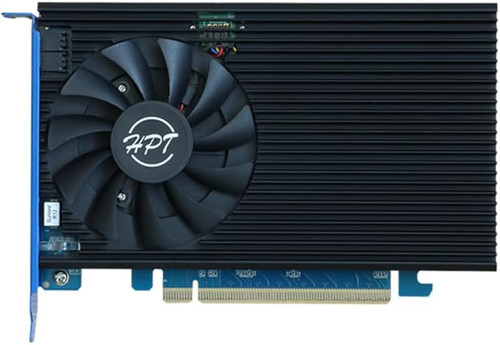

HighPoint Rocket 7604A PCIe Gen5 x16 to 4x M.2 NVMe RAID Adapter - R7604A
Maximize Your NVMe Potential with HighPoint’s Rocket 7604A Gen5 x16 RAID AIC
Unlock 100% performance gain at an unmatched entry price of just $999. Experience over 50GB/s of real-world transfer speed with the industry’s shortest 4-port PCIe Gen5 x16 NVMe RAID card; only 167mm in length! The Rocket 7604A is the definitive storage upgrade for professionals, creators, and enterprise workflows that demand both performance and efficiency.
Each Rocket 7604A AIC can support up to 32TB of storage capacity at speeds up to 56GB/s via single PCIe connection. This self-contained, small-footprint design directly hosts up to four 2280 M.2 SSDs eliminating the need for internal drive bays and cabling.
Class-leading transfer performance, combined with HighPoint’s proven RAID & Storage technology enable Rocket 7604A AICs to accommodate a wide range of data-intensive workloads including media post production and content creation, high-speed data acquisition, and scientific/medical applications.
Key Features:
-
4 Independent M.2 Ports
-
Leverages Broadcom’s 48-lane PCIe Gen5 PEX89048 PCIe Switch IC:
• Ensures the fastest, densest downstream connectivity possible
• Optimizes signal integrity & stability, and minimizes latency
-
Designed to maximize performance & connectivity density per PCIe 5.0 x16 slot: nearly 60GB/s and 12 Million IOPs
-
Customizable Firmware Solutions for Gen5 AICs
-
Wide-range of M.2 Form factor Support (2242, 2260, 2280)
-
HighPoint’s Pro-Series Storage Suite
• RAID Solution: 0, 1, 10 & Single-Disk
• Intelligent Pro-Active Cooling Solution
• Storage Active Sensor Logging & Analysis Suite
• SafeStorage SED Solution
• Incorporates customizable Firmware Solutions
-
Supports Bootable RAID Configurations
-
Supports x86 Intel/AMD & ARM Platforms
-
Firmware-based Diagnostics Capability
Specifications
|
Product Model
|
Rocket 7604A
|
|
Hardware Features
|
|
|
Bus Interface
|
PCIe 5.0 x16
|
|
Number of Channel / Port
|
4x NVMe Ports (Dedicated PCIe 5.0 x4 per port)
|
|
Port Type
|
M.2
|
|
Number of devices
|
4
|
|
SSD Form Factor
|
M.2 (2242, 2260, 2280)
|
|
Synthetic Hierarchy
|
Yes
|
|
Data Transfer Rate
|
64GB/s
|
|
External Power Support
|
N/A
|
|
LED Indication
|
Intelligent, Self-Diagnostic LEDs
|
|
Power Measurement
|
Real Time Power Measurement
|
|
FRU Support
|
Yes Store VPD Data
|
|
SED Support
|
Support (Only Windows and Linux) Not Supported On ARM Platform
|
|
Host CPU Architect Support
|
|
|
CPU Architect Support
|
x86 / ARM
|
|
Mechanical Features
|
|
|
Form Factor
|
Full-Height, Half-Length
|
|
Width
|
Single Width
|
|
Card Dimensions
|
167mm x 110mm
|
|
Card Weight
|
0.80 lbs.
|
|
Cooling System
|
Heatsink with a 8010 Fan inside
|
|
PCIe Bracket
|
Full-Height Ventilated Bracket
|
|
Heatsink
|
1. One Big heatsink to cover all the board area 2. One 8010 Fan inside the Heatsink 3. the Adapter with Heatsink installed will not violate the PCIe Spec
|
|
Toolless SSD mounting system
|
Yes
|
|
Supported Systems
|
|
|
OS
|
Only Supports 64-bit operating systems
|
|
|
Windows 11, 10 / Windows Server 2022, 2019, 2016 / Microsoft Hyper-V
|
|
|
RHEL, Debian, Ubuntu, Fedora, Proxmox, Rocky Linux (Linux kernel 3.10 and later)
|
|
Software Secure Boot
|
Yes
|
|
NVMe Configuration
|
|
|
RAID Support
|
Single, RAID 0, 1, 10
|
|
TRIM RAID Support
|
Single, RAID 0, 1, 10
|
|
Storage Mode - NVMe
|
|
|
Data-RAID
|
Yes
|
|
Boot-RAID
|
Yes
|
|
NVMe RAID Management
|
|
|
Management Suites
|
WebGUI (Browser-Based management tool), CLI (Command Line Interface - scriptable configuration tool), API package, UEFI BIOS/HII (Not Support on ARM)
|
|
SMTP Email Alert Notification
|
Yes
|
|
Alarm Buzzer
|
Yes
|
|
Storage Health Inspector
|
Yes
|
|
NVMe SMART status
|
Yes
|
|
Automatic and configurable RAID Rebuilding Priority
|
Yes
|
|
Auto resume incomplete rebuilding after power on or reboot system
|
Yes
|
|
Single-RAID or Multi-RAID Arrays per Controller
|
Yes
|
|
Cross-Sync RAID Solution Across Controllers
|
Yes
|
|
Advanced RAID features
|
|
|
Online Array Roaming
|
Yes
|
|
RAID Quick Initialization for fast array setup
|
Yes
|
|
Global Hot Spare Disk support
|
Yes
|
|
Operating Environment
|
|
|
Working Temp
|
+5°C ~ + 55°C
|
|
Storage Temp
|
-20°C ~ +80°C
|
|
Operating Voltage
|
PCIe: 12V, 3.3V
|
|
MTBF
|
920,585 Hours
|
|
Kit Contents
|
|
|
Kit Contents
|
Rocket 7604A RAID AIC
|
|
|
QIG
|
|
|
Thermal pad: 70*90*0.75mm, K=8, Gray；V100；x1 Thermal pad: 70*90*1.5mm, K=3, Blue；V100；x1 Thermal pad: 70*90*1mm, K=8, Gray；V100; x1
|
|
|
4 x additional M.2 Rubber
|
