Product Description

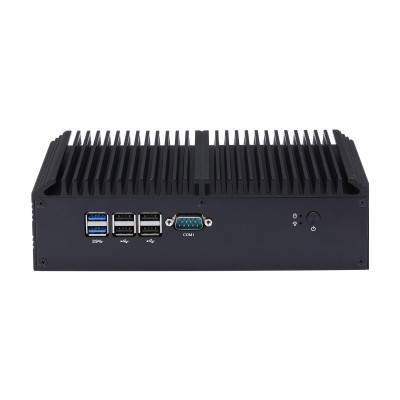

The Qotom Mini PC Q510X S10 is a powerful and versatile mini PC that is perfect for a variety of applications. It is powered by a 6th generation Intel Celeron processor and comes with 8GB of DDR4 memory and a 256GB SSD. The Q510X S10 also features dual HDMI and VGA outputs, allowing you to connect it to multiple displays. It also has a variety of other ports, including 6 serial ports, 8 USB ports, and 2 RS485 interfaces.
The Q510X S10 is a great choice for a variety of applications, including:
- Media Center
- Gaming
- Workstation
- Industrial Automation
- Medical Applications
| Description | |
| CPU | Intel Celeron Skylake SOC Processor, Default 3855U Dual core 2M Cache, 1.6 GHz, 15W |
| Memory | Single Channel DDR4 2133/2400MHz SDRAM, Max Support to 16G |
| Chipset | By CPU |
| Display | Intel HD 510 |
| 2 x HDMI, 1 x VGA | |
| Ethernet | 2 x Intel I211AT Gigabit LAN |
| 1 x M.2 2230 for Wi-Fi Module | |
| 1 x Mini PCIE Full-length for 3G/4G Module | |
| Audio | Realtek ALC662 HD Audio |
| Storage | 1 x M.2 2260/2280 for NVME SSD，1 x SATA 3.0 |
| USB | 4 x USB 3.0，4 x USB 2.0 |
| Serial | 6 x RS-232 |
| WatchDog | Yes |
| GPIO | Yes |
| RS-485 | 2 |
| Power On | Yes |
| Front I/O | |
| Power Button | 1 |
| LED | 1 x Power LED, 1 x HDD LED |
| Serial | 1 x RS-232 |
| USB | 2 x USB 3.0，4 x USB 2.0 |
| Rear I/O | |
| DC-IN | 12V3A，5.5mm，2.5mm |
| Display | 2 x HDMI, 1 x VGA |
| Ethernet | 2 x Intel I211AT Gigabit LAN |
| USB | 2 x USB 3.0 |
| Serial | 5 x RS-232 |
| Audio | 1 x Mic-in，1 x Line-out |
| Other | |
| Material | Aluminum |
| Dimension | 217 x 122 x 62mm |
| Weight | 2.5kg |
| Packaging Dimension | 290 x 265 x 90mm |
| Kensington Lock | None |
| Cooling Mode | Fanless, passtive cooling |
| Mounting | VESA Mounting Bracket |
| OS Support | |
| OS | Windows 7，Windows 8，Windows10，Linux |
| Environmental | |
| Operting Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Packlist | |
| Packing List | 1 x MiniPC，1 x Power supply，1 x Power cord，1 x VESA |
